Suction Fittings: J-300, J-400, J-500, J-LX

$5.23

HTS#: 6540-213

Model

6540-213 6540-564 6540-565 6540-620 6540-619 6000-564 6540-751 6540-753 6540-984 6540-791 6540-241 6540-085 6540-329 6540-126 6540-113

Suction Fittings: J-300, J-400, J-500, J-LX

$5.23

HTS#: 6540-213

Model

6540-213 6540-564 6540-565 6540-620 6540-619 6000-564 6540-751 6540-753 6540-984 6540-791 6540-241 6540-085 6540-329 6540-126 6540-113
Free Shipping on orders above $49* Fast delivery from Ontario, Canada
0 watching this item.
Description Reviews

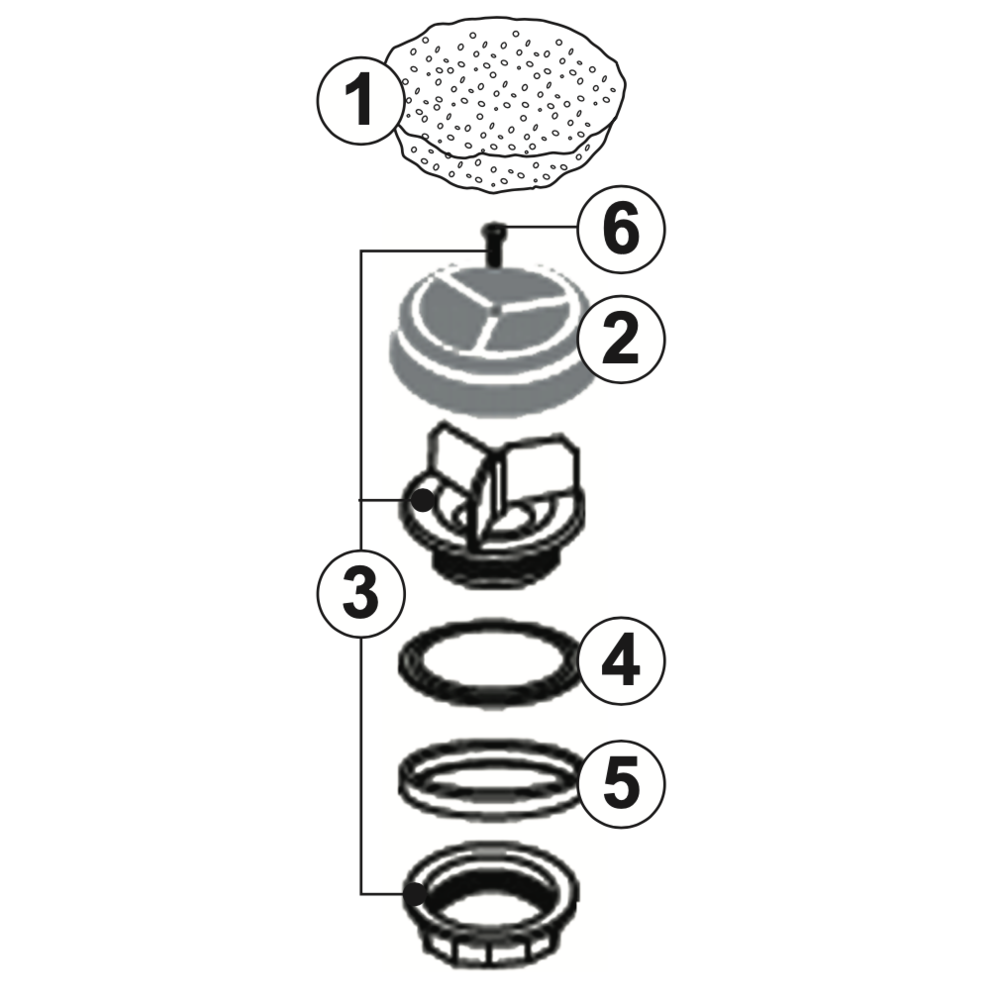

J-300 Wall Suction Fitting (2004+)

  1. 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008

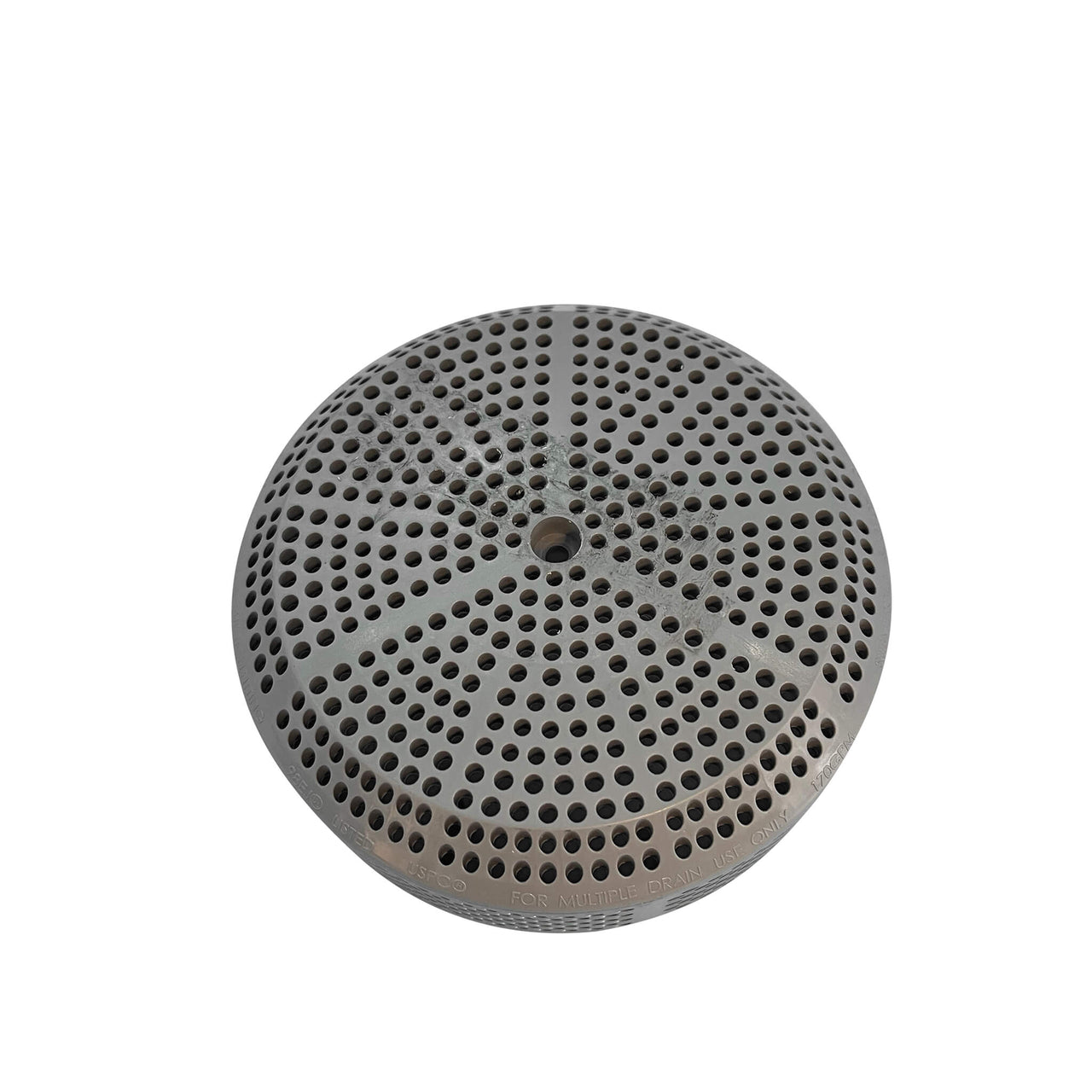

  2. 6540-564, Grate: Suction

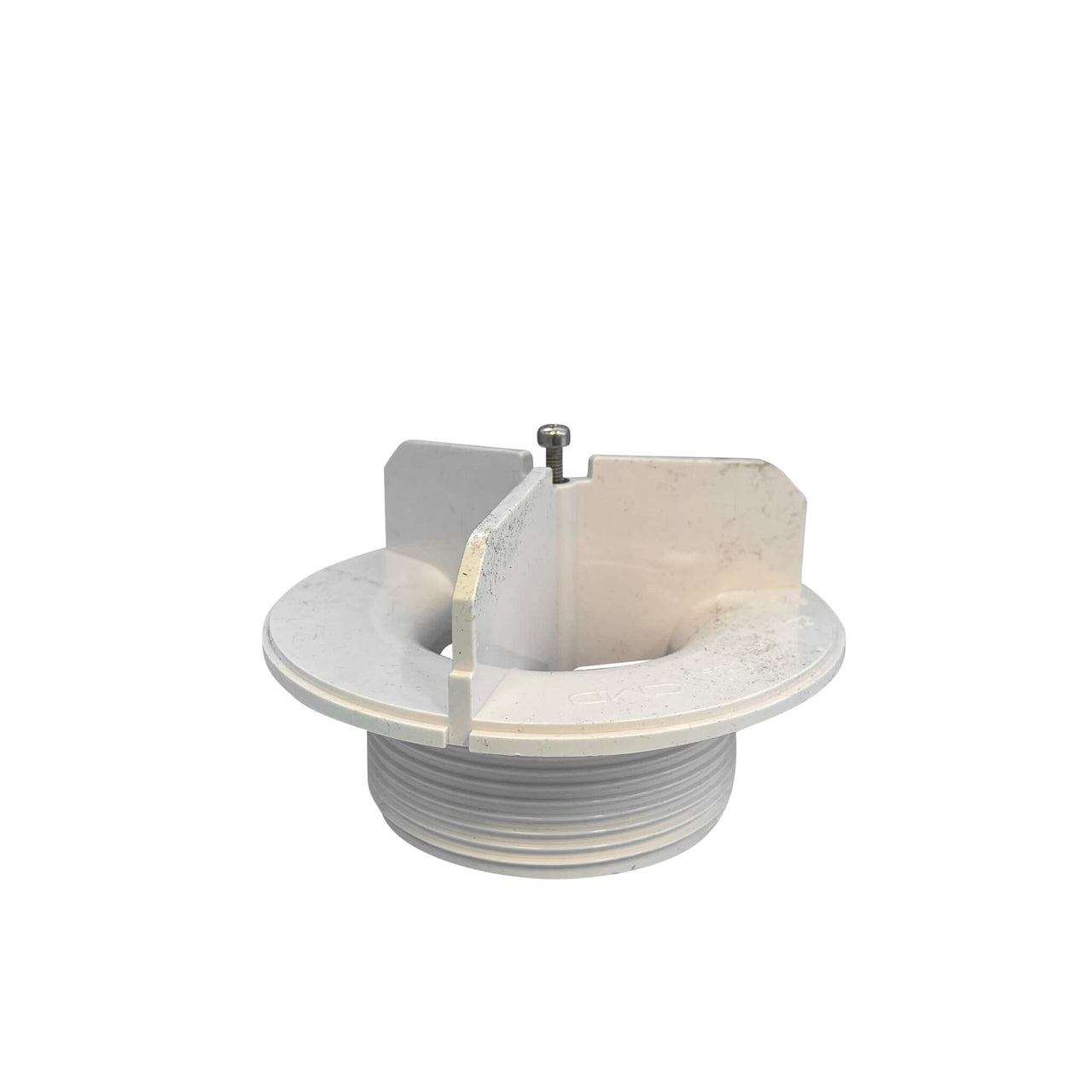

  3. 6540-565, Fitting: Wall  Suction (Nut and 6000-564 Screw Included)

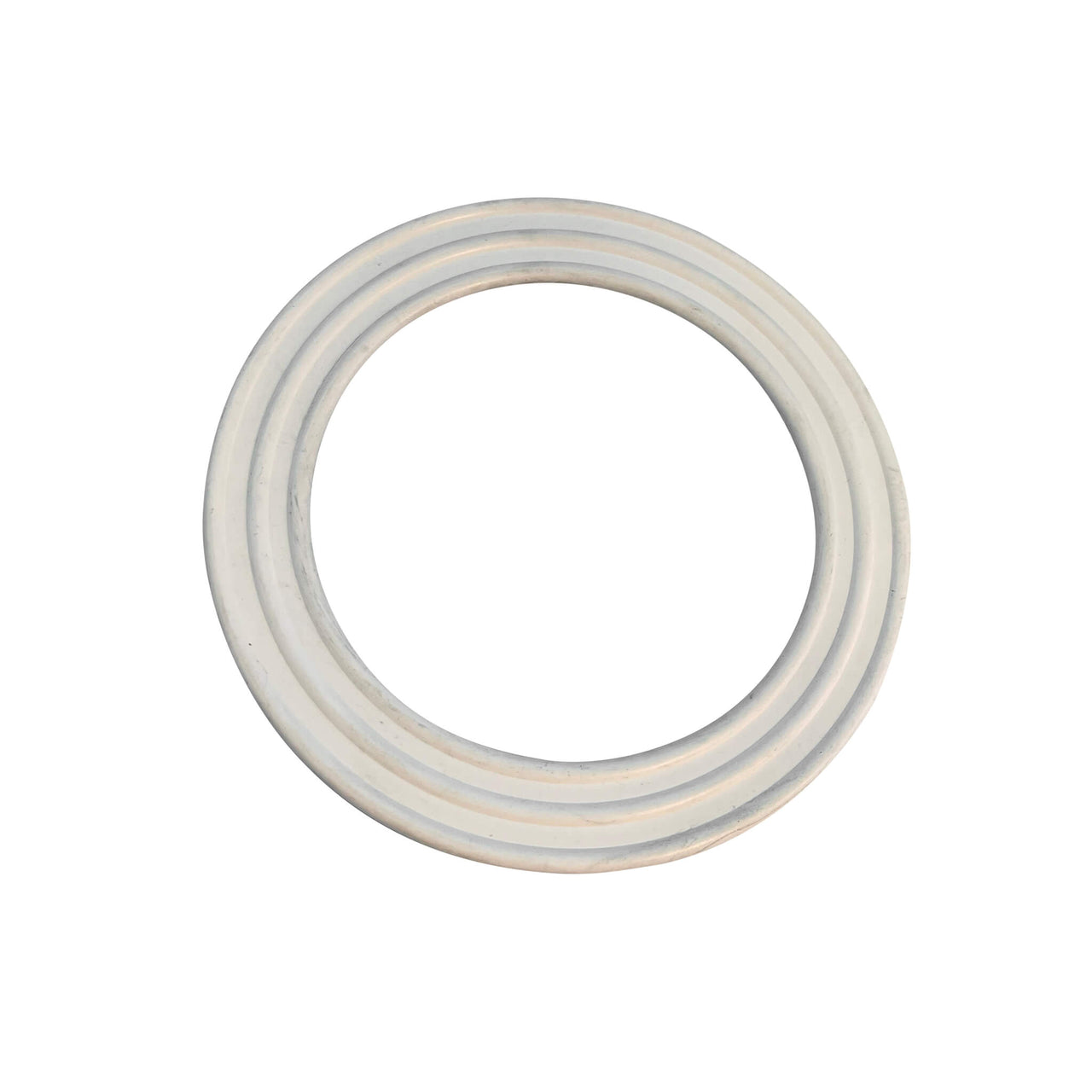

  4. 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring)

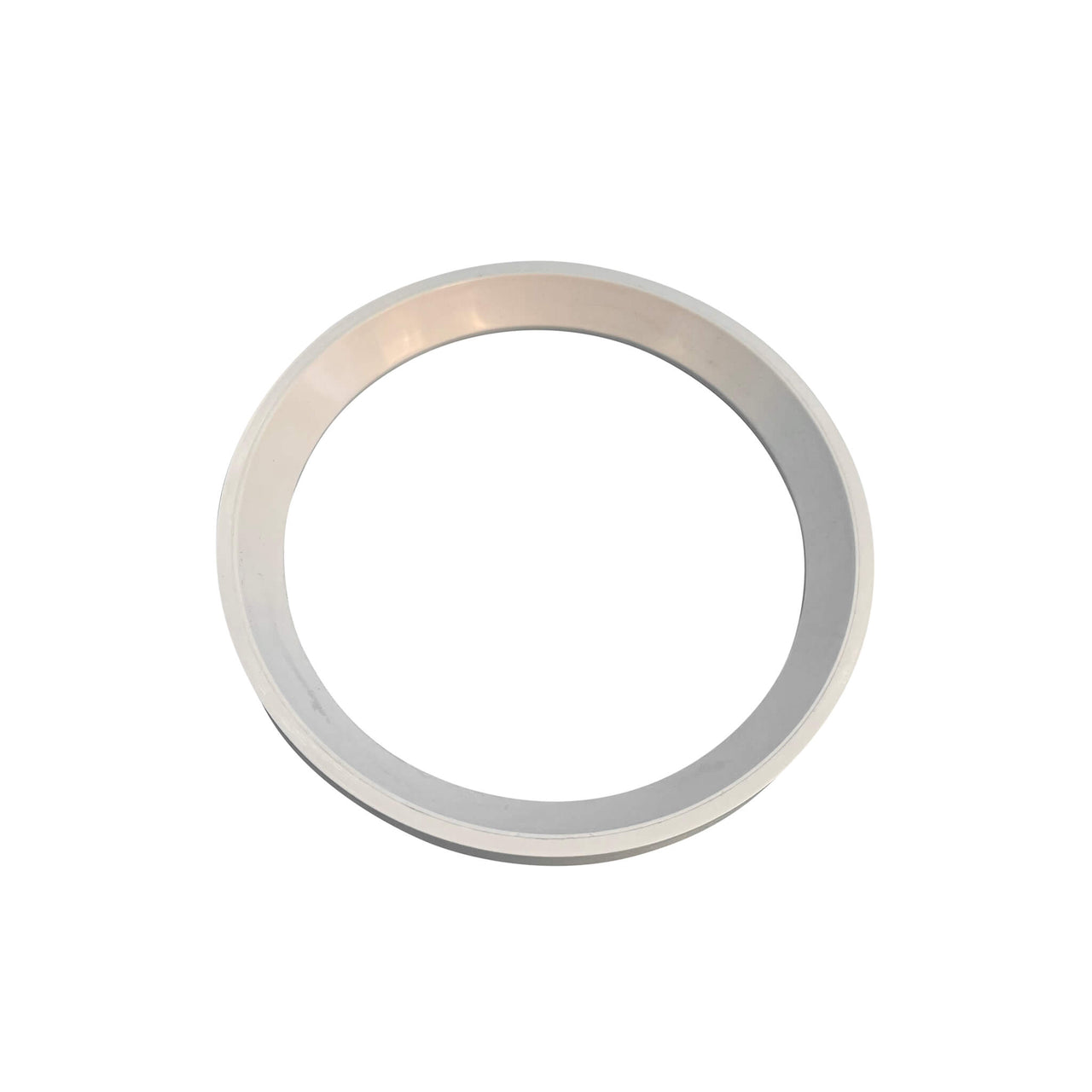

  5. 6540-619, Washer: Self Levelling Suction Assy.

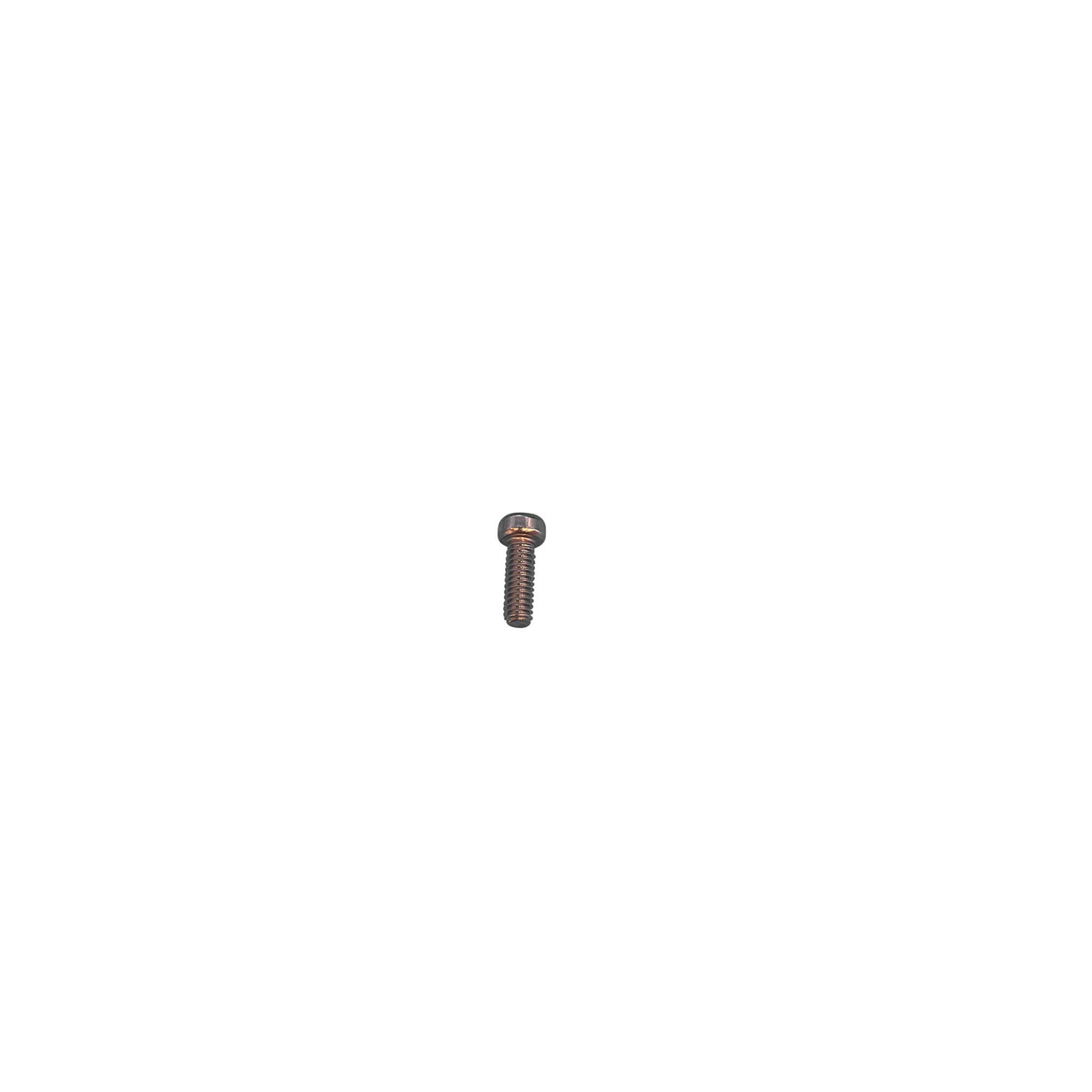

  6. 6000-564, Screw: 8-32 x 12mm, 316SS

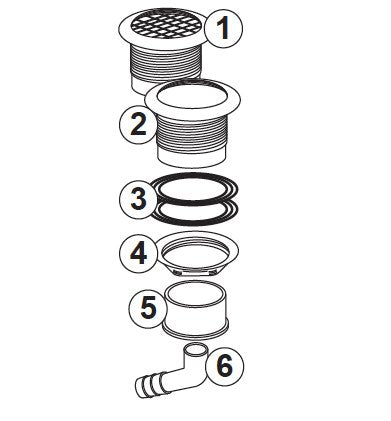

J-300 Series Skimmer/ Filter Wall Fitting (2002+)

  1. 6540-126, Fitting: Wall with High Flow Strainer (for High Flow Circ. Models); OR 6540-751, Fitting: Wall with Strainer (for Low Flow Circ. Models)

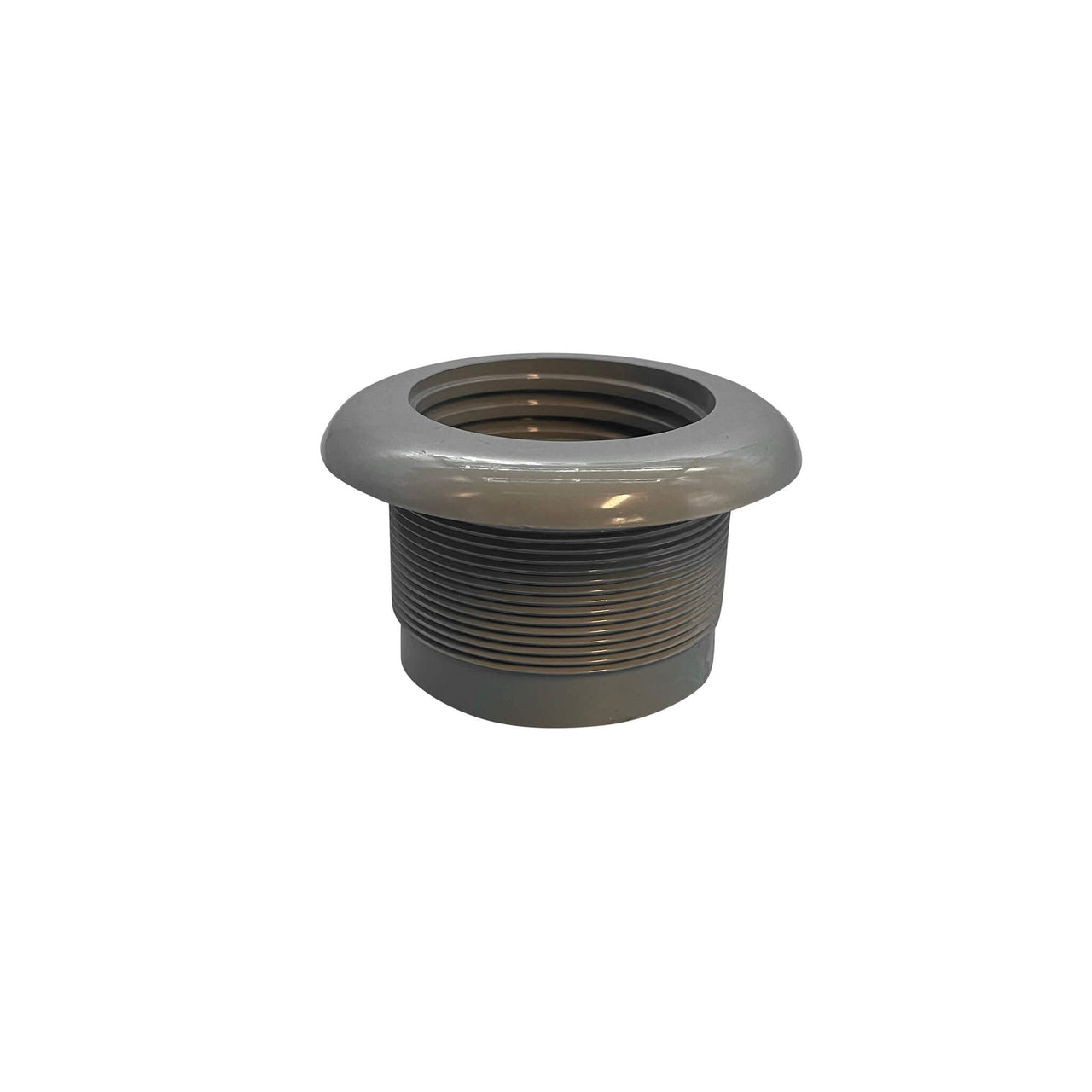

  2. 6540-753, Fitting: Wall w/o Strainer (Jet Pump 1)

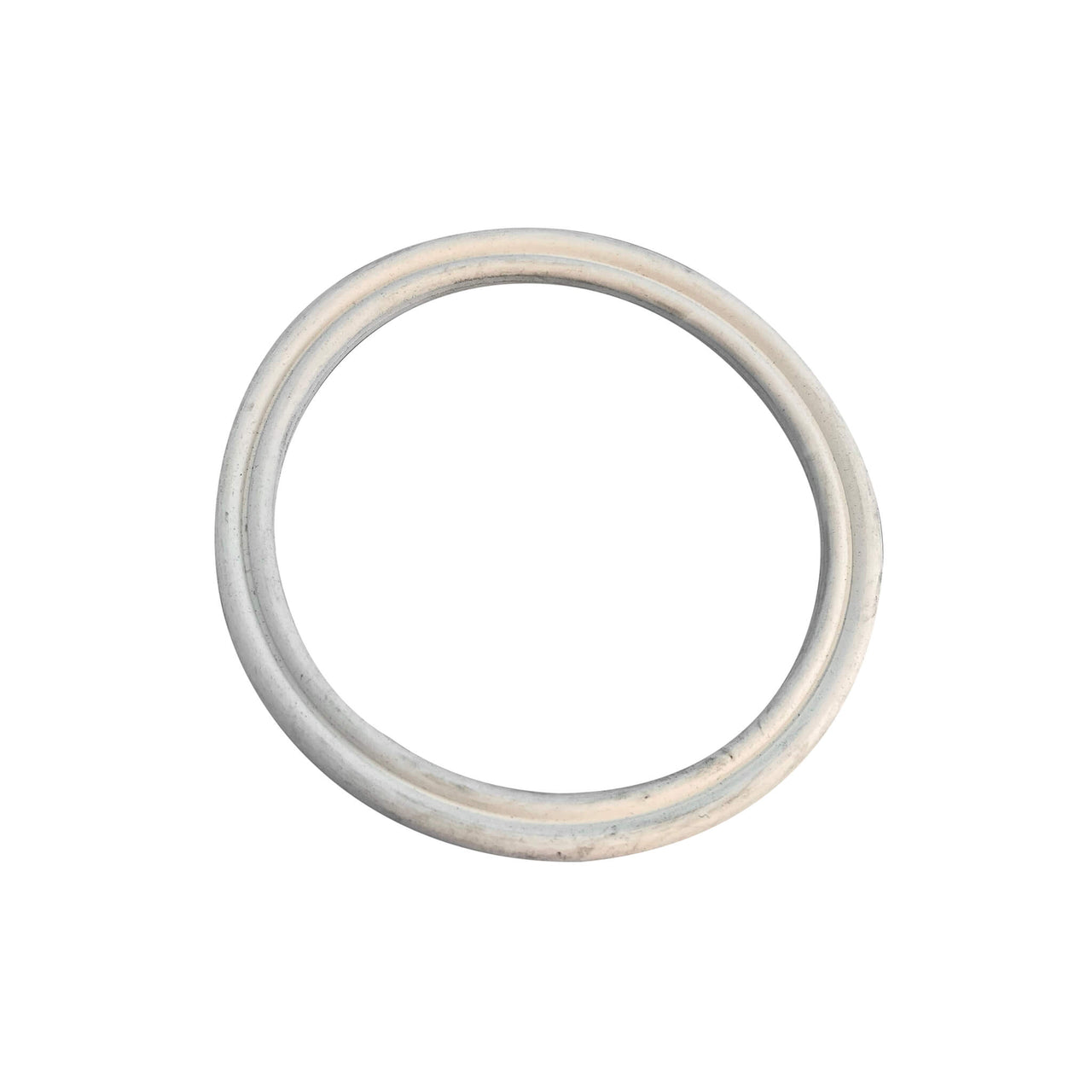

  3. 6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.)

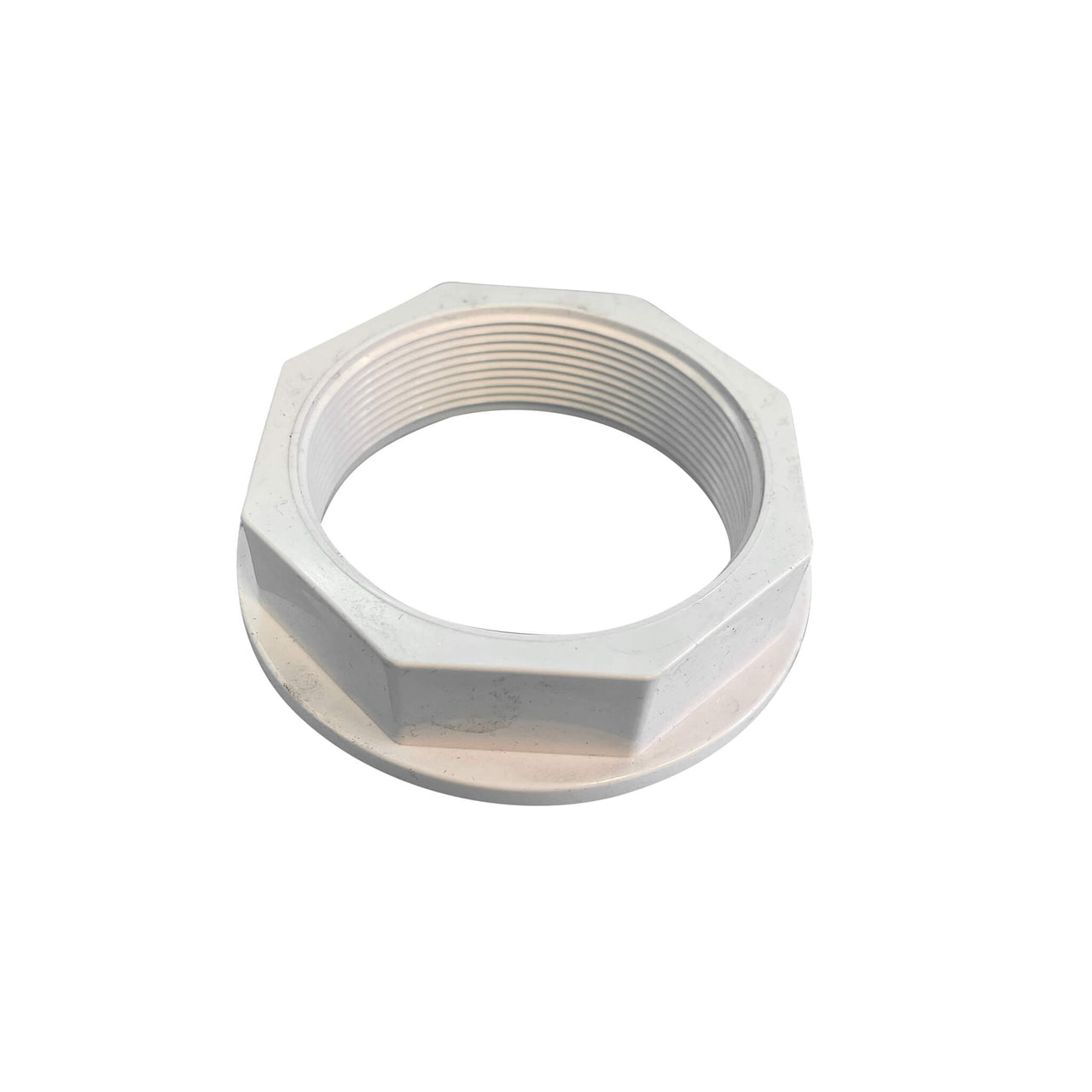

  4. 6540-791, Nut: 2"

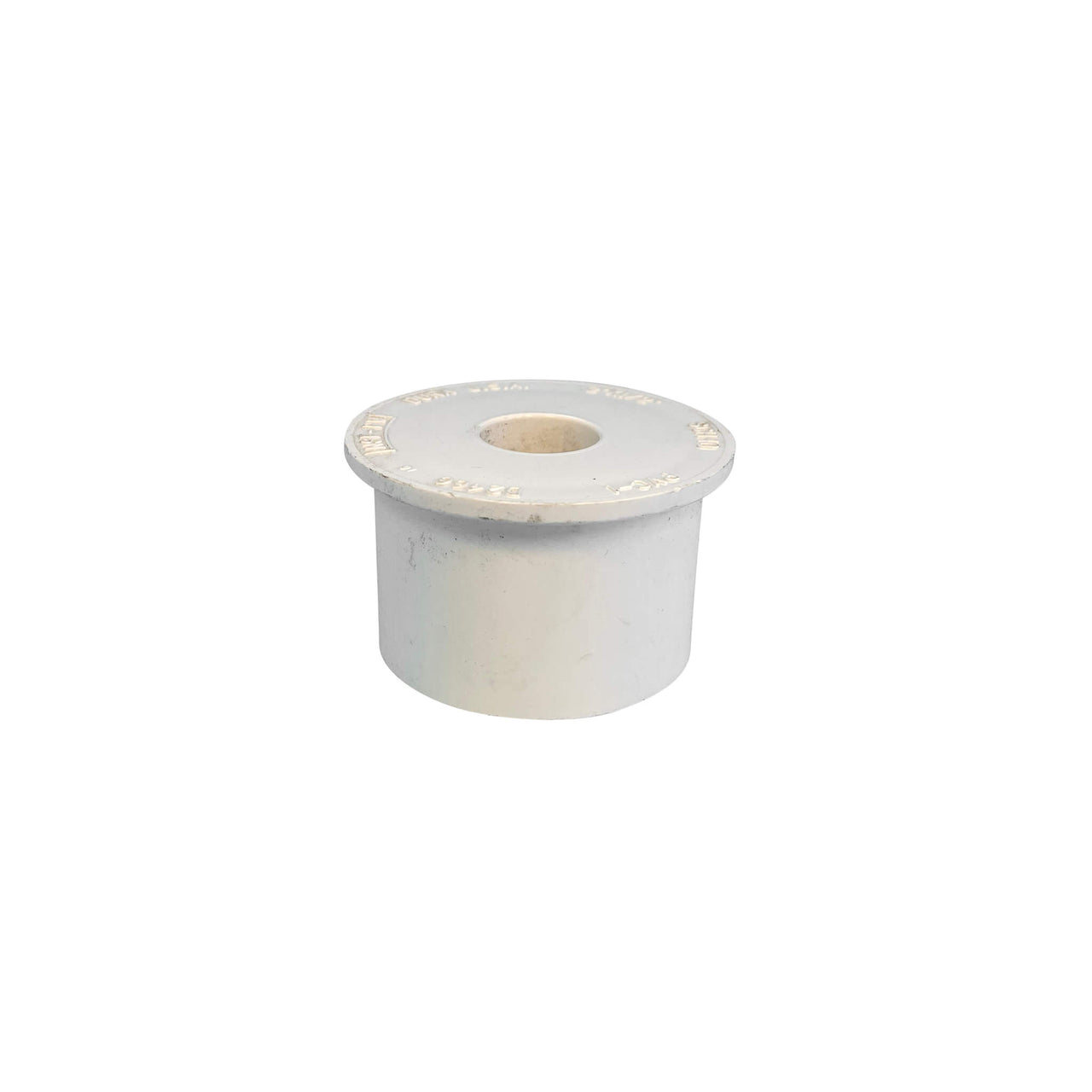

  5. 6540-241, Reducer: 2" Spigot x 1/2" Slip (for Low Flow Circ. Models)

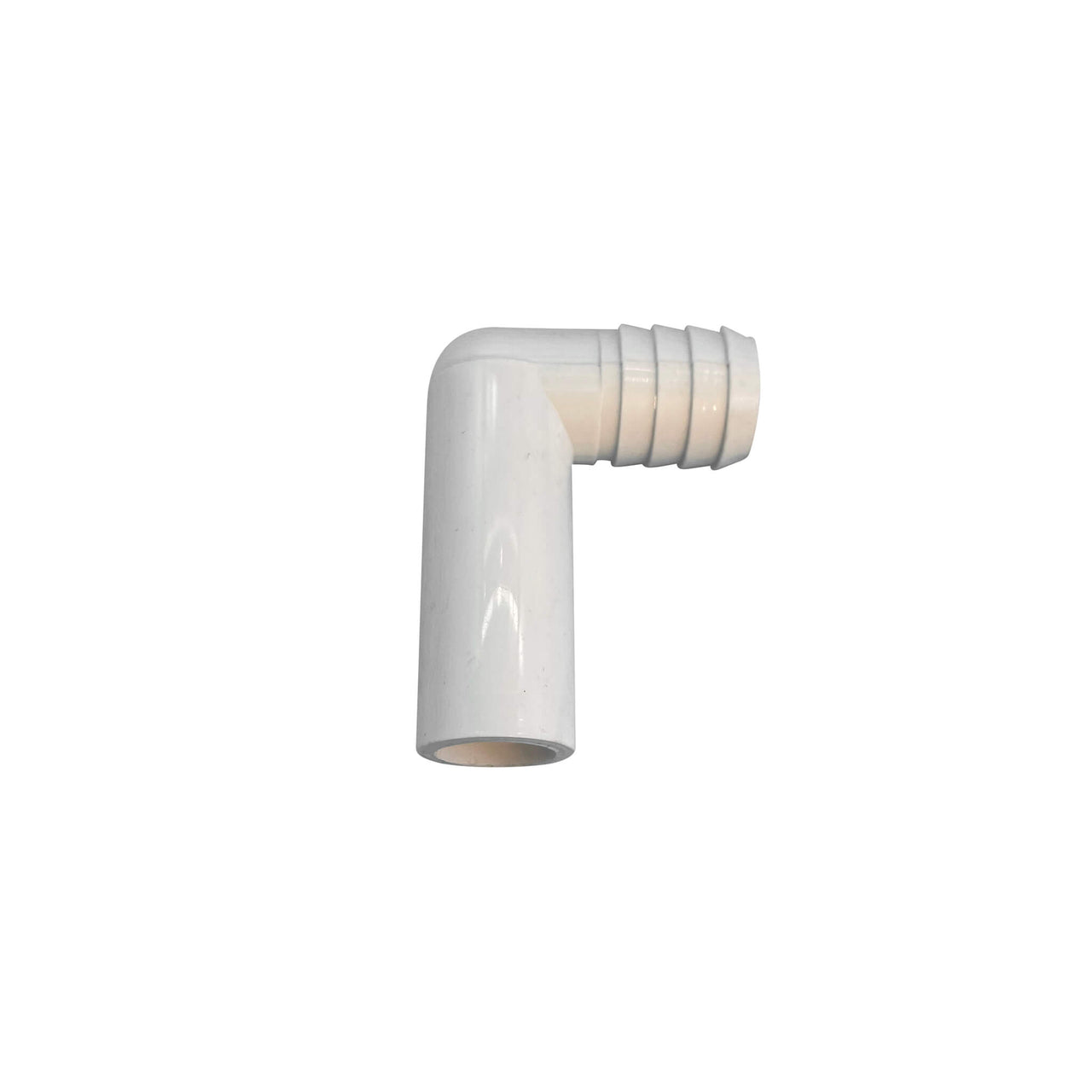

  6. 6540-085, Elbow: 1/2" Spigot x 3/4" Barb (for Low Flow Circ.Models)



J-300 Series Wall Suction (2002-2003)

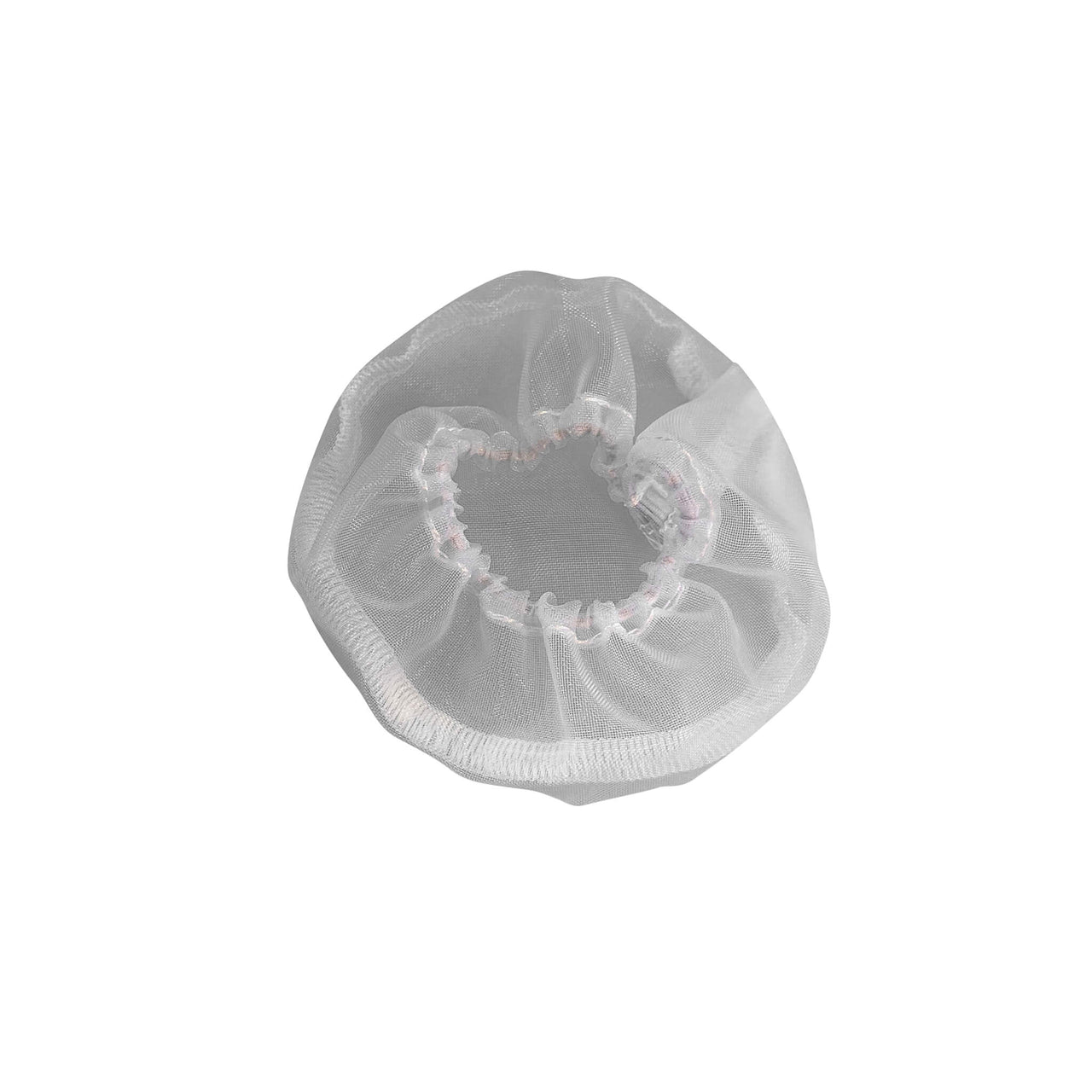

  1. 6540-113, Filter: Spa Drain Cover



J-300 Filter Fill Fitting

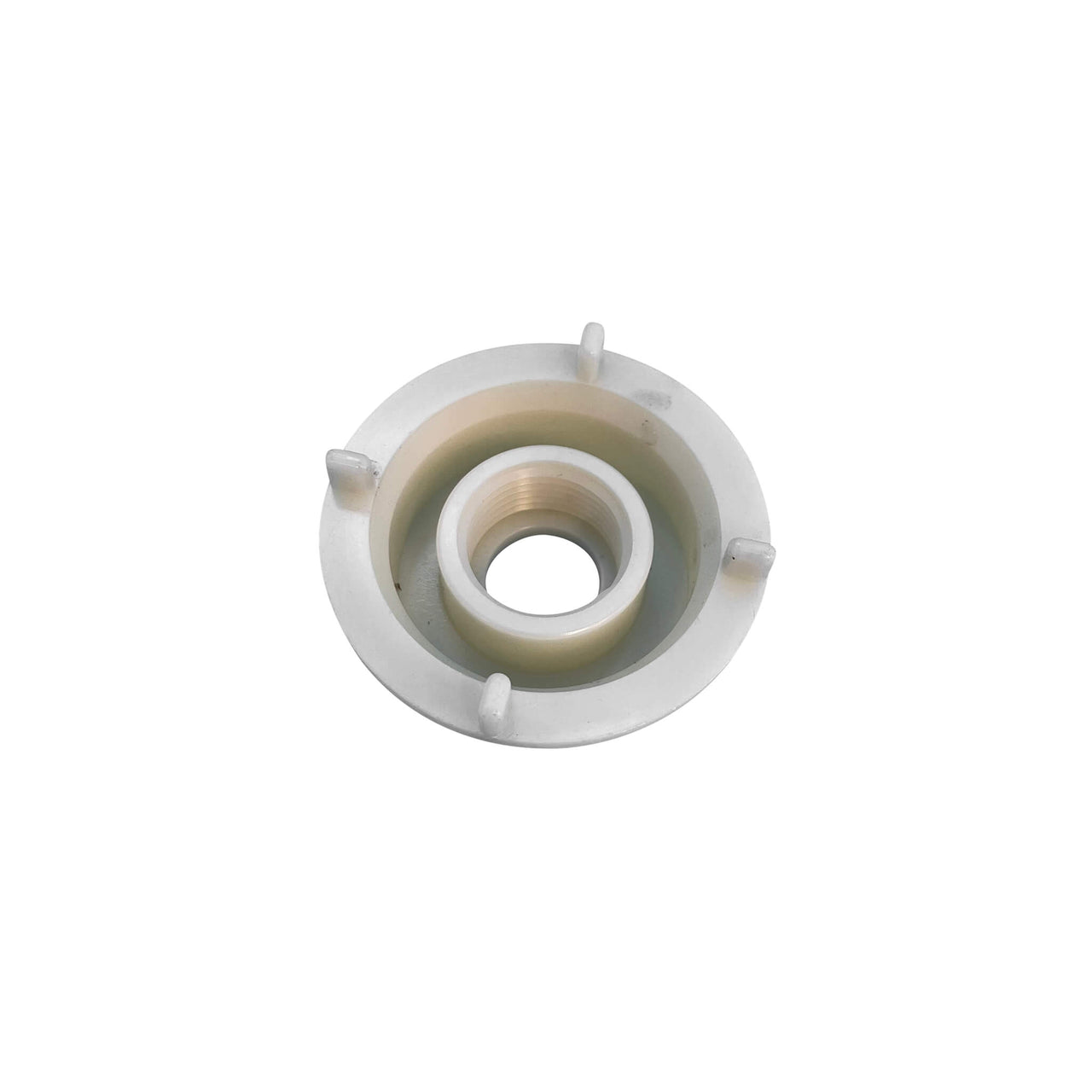

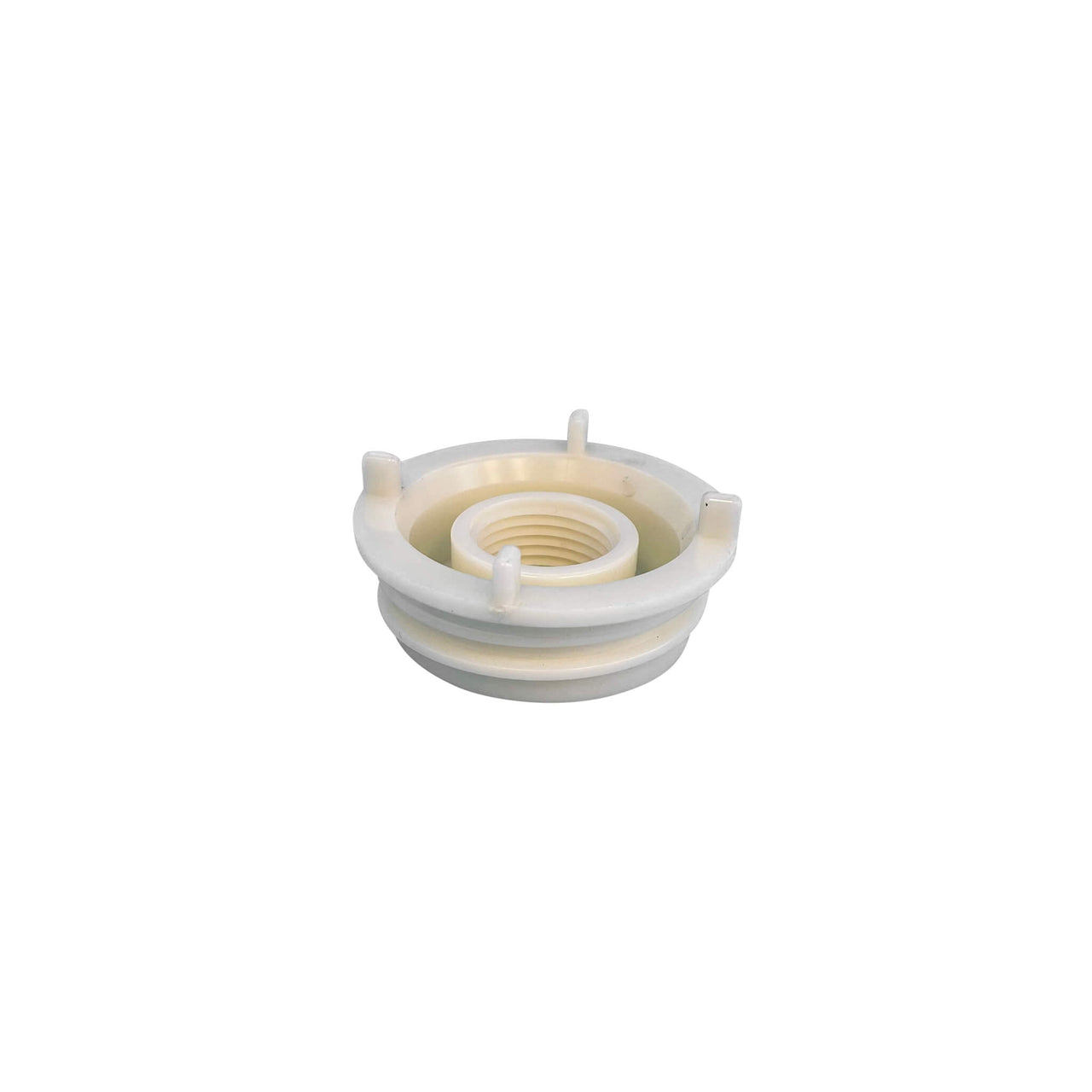

6540-329, Filter: Fill Fitting (Reduces Air Locks During Refills).


J-LX, J-500, J-400 (2006+) Wall Suction Fitting

  1. 6540-564, Grate: Suction
  2. 6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw, Included)
  3. 6540-620, O-Ring: Compression, 2"
  4. 6540-619, Washer: Self Levelling Suction Assy.
  5. 6000-564, Screw: 8-32 x 12mm, 316SS

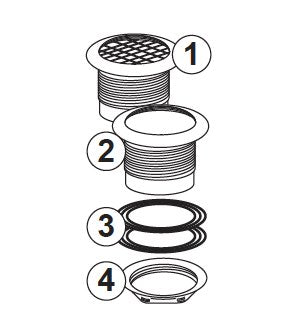

J-LX, J-500, J-400 (2006+) Skimmer/Filter Wall Fittings

  1. 6540-126Fitting: Wall With High Flow Strainer 2011 (for Circulation Pump)
  2. 6540-753Fitting: Wall w/o Strainer (for Jet Pump 1)
  3. 6540-984O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.)
  4. 6540-791Nut: 2" Suction Fittings (J-400 Series)

J-400 Filter Fill Fitting

6540-329Filter: Fill Fitting (Reduces Air Locks During Fill u
