Circuit Boards (9)

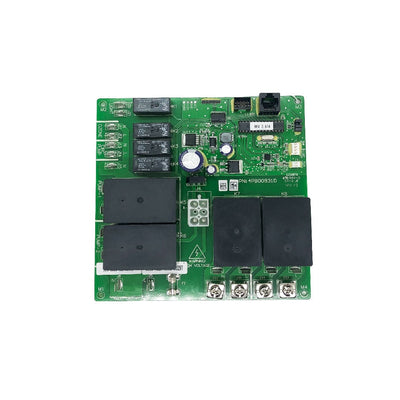

Circuit board for Jacuzzi hot tubs: J-LX: 2011+ J-300: 2012-2013: J-375, J-365, J-355, J-345, J-335 2008-2011: J-375 2007-2011: J-365, J-355, J-345, J-335 2005-2007: J-325 2002-2006: J-345, J-340, J-335, J-330 2002-2003: J-320 J-200 (only models with circulation pump): 2007-2012: J-280, J-270, J-230 mid-year 2007-2011: J-280, J-270 2005-2017: J-285, J-280, J275, J-270, J-235, J-245, J-230 Part Number Information:  6600-726 All 2004+ J-LX & J-LXL models, Micro Chip 3.61A Included  Replaces: 6600-088, 6600-288 and 6600-167 on all above models

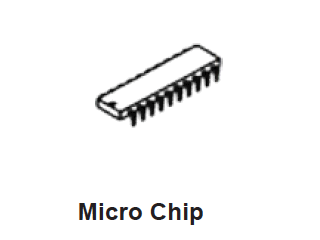

J-300 North American 60Hz And Export 50Hz Models Note: Product may not be in stock at time of order and order may be delayed.  Please contact us for stock inquiry. 6600-296, All 2014-2015 1-Pump J-325, J-315 Models, Micro Chip 3.83 Included.  Note: Replaces 6000-296 6600-297, All 2014-2015 2-Pump J-385, J-375, J-365, J-355, J-345, J-335 Models. Replaces 6000-293 6600-724, 2002-2013 1-Pump J-300 models (except 2002-2003 J320 & 2005-2007 J325) *Please message us before ordering to ensure you are receiving the correct product needed.    6660-289, Micro Chip Rev 3.82 (used with all 2014-2015 J-300 LED 1-Pump & 2-Pump spas with circulation pumps)

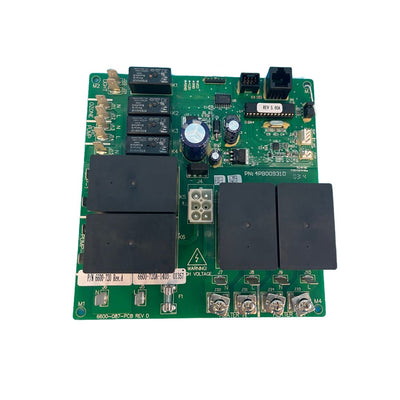

Circuit boards are available for sale for the J-200 and J-100 LCD Series Hot Tubs. Part numbers will vary depending on the hot tub model. Refer to the list below for the correct part number.  J-200 North American 60Hz Models (2018+) 6600-268, All 2018+ 1 & 2-Pump J-200 & J-100 Models (Microprocessor Based) J-200 LED Series (2014-2017) & J-100 LED Series (2016-2017) 6600-720, All 2014-2017 J-280, J-275, J-245, J-235 2-Pump Models, Micro Chip 5.60A Included 6600-722, All 2014-2017 J-210 and 2016-2017 J-225, J-215 1-Pump Models, Micro Chip 5.60A Included

CIRCUIT BOARD: J300 1&2 PUMP, 60HZ 6600-730 - Replaces 6600-092 and 6600-180 CIRCUIT BOARD: J300 3 PUMP, 60HZ 6600-101 (only J-385 & J-380) *Eprom 9.70B included

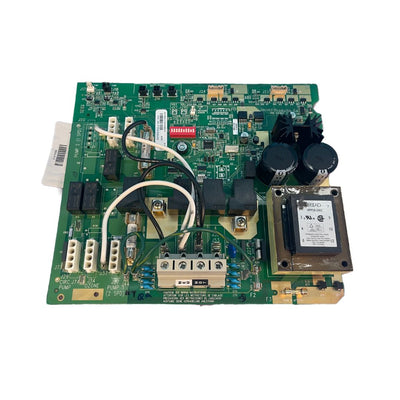

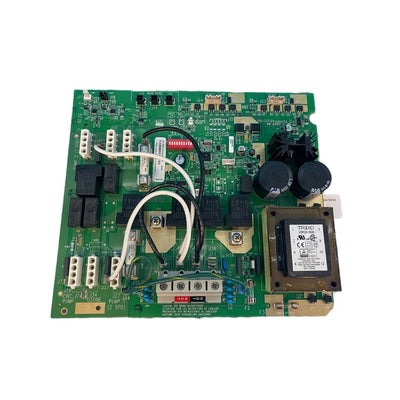

J-300 North American 60Hz Models (2020+) 6600-505 All 2 pump J-300 models 2020+. Encrypted board. 6600-499, All 1 pump J-300 models 2020+. Encrypted board. J-300 North American 60Hz Models (06/2018-2019) 6600-412, All 1 Pump J-300 models 06/2018-2019. Encrypted board. Will not work with older control panels. When used in pre- 06/2018 spas needs to be reprogrammed with a Pick-iT kit. 6600-420, Replaced by 6600-505 All 2 Pump J-300 models 06/2018- 2019. Encrypted board. It will not work with older control panels. When used in pre-06/2018 spas needs to be reprogrammed with a Pick-iT kit.Replaced by 6600-505 J-300 North American 60Hz Models (2016-05/2018) 6600-784, All 2016-05/2018 2-Pump Domestic 60Hz J-385, J-375, J-365, J-355, J-345, J-335 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. 6600-786, All 2016-05/2018 1-Pump Domestic 60Hz J-325, J-315 Models.Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. J-300 Export 50Hz Models 6600-785, All 2016-05/2108 2-Pump Export 50Hz J-385, J-375, J-365, J-355, J-345, J-335 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. 6600-783, All 2016-05/2018 1-Pump Export 50Hz J-325, J-315 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.

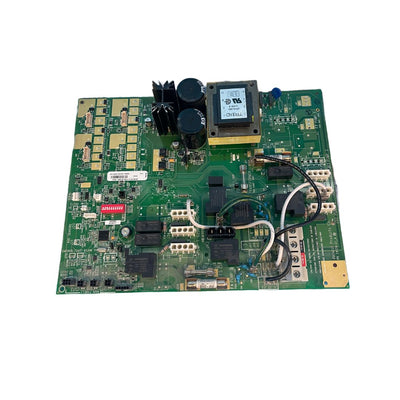

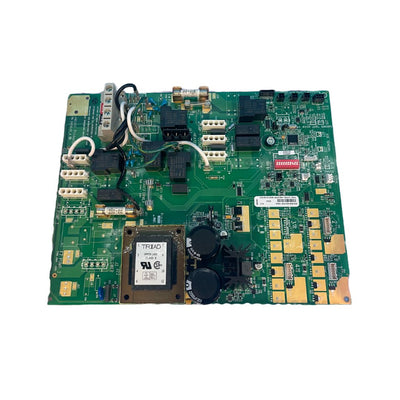

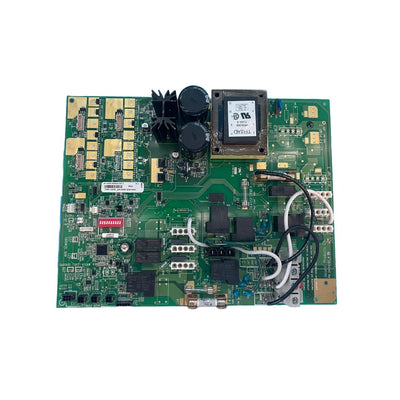

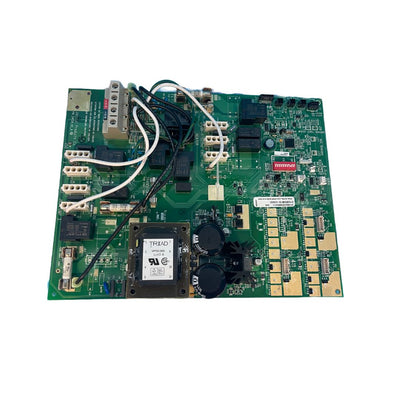

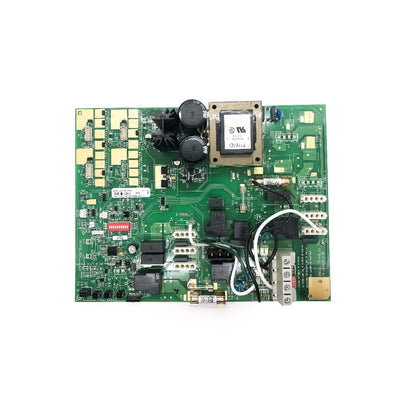

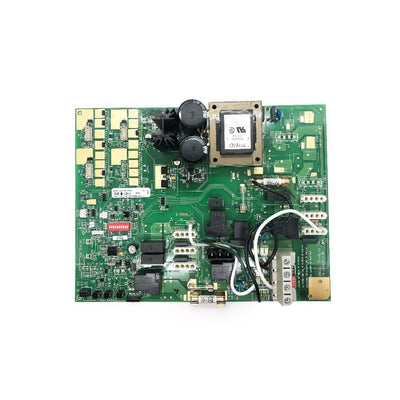

Please note: circuit boards may not be in stock at the time of order and delivery may be delayed. Please contact our team to confirm current stock. J-400 North American 60Hz Models (04/2018+) 6600-478 All 2019+ J485, J475, J445, J435, and 2020+ J425 models. Encrypted board. It will not work with older control panels. 6600-422 All 1 or 2-Pump J-400 models 04/2018 - 2019, EXCEPT J-435/J-445/J-475/J-485. Encrypted board. It will not work with older control panels. When used in pre 04/2018 spas need to be reprogrammed with the Pick-iT kit. 6600-430 J-435/J-445 models 04/2018-2018. Encrypted board. Will not work with older control panels. When used in pre-04/2018 spas needs to be reprogrammed with Pick-iT kit. 6600-476, All 3 Pump J-400 models 04/2018+. Encrypted board. Will not work with older control panels. When used in pre-04/2018 spas needs reprogrammed with Pick-iT kit. J-400 LCD Series (09/2015-03/2018) 6600-766 All 09/2015-03/2018 1&2 Pump J-400 models (Not Compatible with 10/2017+ J-445 & J-435 models). Board is microprocessor controlled, includes factory-installed jumper wires and does not require an Eprom. 6600-266 For 2-Pump Domestic 60Hz J-445 & J-435 10/2017-3/2018 models only. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. 6600-768 All 09/2015-03/2018 3-Pump J-495 models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. J-400 Export 50Hz Models 6600-765 All 09/2015-03/2018 1&2 Pump J-400 models (Not Compatible with 10/2017+ J-445 & J-435 models). Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. 6600-767, All 09/2015-03/2018 3-Pump J-495 models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom. J-400 LCD Series (2006-08/2015) 6600-728, All 2008-Mid 12/2009  1&2 Pump J-400 models with 1-speed Jet Pump Board is microprocessor controlled and does not require an Eprom.

53834-05, Balboa EL 2000 M3 Board (EL2000M3)

6600-390, Sundance circuit board for 880 NT systems (1 and 2 pump with PermaClear). IC Processor Rev. 1.1A included. Replaces: 6600-164 and 6600-176 Compatibility April 2009-2015 1 or 2 pump Sundance 880 Series\ excluding Aspen and Maxxus includes: Altamar, Cameo, Capri, Majesta, Marin, Optima 2014-2015 880 NT systems, 1 and 2 pump with PermaClear, (IC Processor Rev. 1.1A included) 2007-2008 to Mid 2012 Optima, Cameo, Altamar, Marin, Majesta, Capri   Note: This product may not be in stock at the time of your order. Your order may be delayed.  This item is a special order and not eligible for cancellation or refund. Please contact us for availability if time sensitive.

Note: This is a special order. After ordering, it cannot be cancelled or returned. 0201-300031, Kit - all MSPA-MP-BFs; incl. JJ receptacles; works with Arctic TSC-14
