Jet Assemblies: PowerPro FX2-S Spinner Jet (2/2014+)
from $2.63
Compatible with:
J-LX/LXL Series 2015-2019
J-315 2016+
J-325 2016+
J-355 2014+
J-345 2014+
J-355 2014+
J-365 2014+
J-375 2014+
J-385 2016+
J-415 2014-2019
J-425 2016-2019
J-435 2018+
J-445 2018+
J-465 2016-2017
J-470 2016-2018
J-475 2019+
J-480 2016-2018
J-485 2019+
J-495 2016+
J-575/585 2015+
6541-132, Jet Face: PowerPro FX2-S Spinner with Stainless Steel Escutcheon
6541-567, Jet Back: PowerPro FX2-S (O-Ring and Nut Included)
6541-644, Washer: 500s (Self Leveling)
Air Components: J-300 / J-LX Series
from $0.37
Air control valves are available for sale for the J-LX hot tub and the J-LXL hot tub. Individual air control components and their specifications are listed below:
J-LX & J-LXL Air Control Valve (2011+) J-300 Air Control Valve (2007+)
6541-142, Control: Air Toggle Switch
6541-143, Gasket: Toggle Outer Shell
6541-144, O-Ring: Toggle Inner Shell
6540-375, Manifold: Air Control Jacket
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
J-300 Air Control Valve (2002-2006)
Air control valves are available for sale for the J-300 Hot Tub Series. Individual air control components and their specifications are listed below:
6540-914, Control: Air Push Button
6540-913, Gasket: Push Button Air Control
6540-522, O-Ring: Push Button Air Control
6540-912, Manifold: Push Button Air Control
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
J-LX/J-LXL Air Bleed Line Fitting (2011+) J-300 Air Bleed Line Fitting (2005+)
6540-252, Nut: Air Injector
6540-228, O-Ring: EPDM 0.662" ID x 0.210"
6541-263, Injector: Air PVC Gray
Knob:T-valve JHT
from $6.61
Diverter Valve Knob
2540-533, Knob: T-Valve
Compatibility:
J-LX/J-LXL: 2007+
J-400: 2007+ (excluding J-485/J-475 2019+, J-445/J-435 Oct 2017+)
J-300: 2007+
6540-728, Knob: T-Valve
Compatibility:
J-300: 2002-2006
Jet Assemblies: Classic Luxury DVX, PRO Duo Rotator & PRO Directional Jets
from $1.38
Compatible with:
J-210 2012+
2540-431, Jet Face: 400s Directional (DVX Jet, Grey)1B 2540-433, Jet Face: 400s Directional (DVX Jet, Stainless Steel)1C 2472-610, Jet Face: 400s Rotating - Not Shown (DVX Jet, Stainless Steel)1D 6541-574, Jet Face: Classic PRO Duo Rotator1E 6541-573, Jet Face: Classic PRO Directional
6541-632, Jet Back: 400s (Nut And O-Ring Included)
6541-635, O-Ring: 400s - Not available in Canada
6541-634, Washer/Nut: 400s (Self Leveling)
6541-633, Nut: 400s Jet Back
Valves & Waterfalls: J-400
from $1.27
Waterfall Valve (For J-475, J-485, 2019+ J-435, J-445 & 2020+ J-425, J-495 models)
6540-695, Knob: Waterfall J-475/J-485
6541-081, Valve: Waterfall, 3-way 1" without knob
IX Jet Valve (Pre-2019 J-445 & J-435 models**)
6540-451, Knob: Waterfall J-445
20241-001, Valve: 90°, 2-Way, 1-1/2" Slip
Waterfall Valve (Pre-2019 J-445 & J-435 models**)
6540-451, Knob: Waterfall J-445, 2017
6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (Includes item 2a) (includes 6541-069, T Gasket)2a. 6570-462 Replacement C-Clip: Waterfall Valve
6000-506, O-Ring for 3-Way Waterfall Valve
6541-069, "T" Gasket for 3-Way Waterfall Valve
20172-001, Valve: Plumbing 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately
Waterfall (for All J-485, J-475, J-445 & J-435 models and 2020+ J-425, J-495 models)
6560-119, Cover: 1 Waterfall LED Light J-400, 2017
6473-310, Base; ABS Waterfall Assembly (Complete) Note: Includes Body, Barb 2 Fittings, compensating washers, and Mounting Nuts.
IX Jet Valve (2006+ J-400 Series EXCEPT for J-435 & J-445)
20150-001, Knob: 2006+ 1 J-400 Waterfall Valves & Waterfalls (J-400) Waterfall Valve (2006-2019 J-400 Series*)
20241-001, Valve: 90°, 2-Way, 1-1/2" Slip
Waterfall Valve (2006-2019 J-400 Series*)
20150-001, Knob: 2006+ J-400 Waterfall
6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (includes 6541-069, T Gasket)
6000-506, O-Ring for 3-Way Waterfall Valve 5
6541-069, "T" Gasket for 3-Way Waterfall Valve
20172-001, Valve: 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately.
Waterfall (2006-2019 J-400 Series*)
20095-001, Cover: Waterfall J-400 Series
6541-063, Fill Spout: Waterfall "Niagra" J-400 Series (Includes 2 Nuts And 2 Self-Leveling Washers)
6540-935, Gasket: 1.25" ID "Niagra" J-400 (2 Req'd.)
Covermate 3 Parts (J435, J445, J465, J470, J475, J480, J485, J495)
from $0.85
Please note: Covermate III parts may not be in stock at time of order
Compatibility: Covermate III for J435, J445, J465, J470, J475, J480, J485, J495
100002 - 1x Foam Grip100003 - Coupler100028 - Right Support Arm
100029 - Left Support Arm
101632 - Replacement Shock (Locking)101520 - Replacement Shock (Non-Locking)
100280 - 38" Extender Pivot Arm
Find the installation instructions for your Covermate III here.
J300 Pillows & Parts (2002-2013)
from $0.63
A. 6455-007, Pillow Insert Only (for 2002-2006)

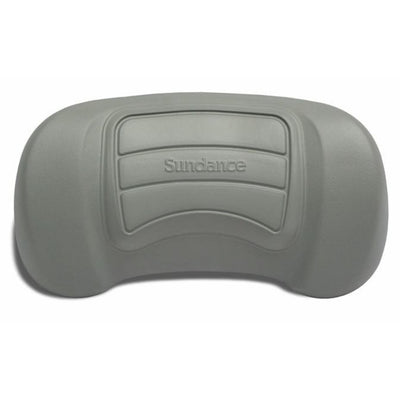

B. 2455-105, Pillow Only (for 2002-2019); Note: Replaced older 6455-006 Pillow
C. 6570-231, Screw: Pillow Attachment (for 2002-2013) (2 req'd)
D. 6570-233, Bushing: Pillow Attachment (for 2002-2013) (2 req'd)
E. 6540-282, Gasket: Pillow Attachment for (for 2002-2013) (2 req'd)
G. 6570-234, Nut: Pillow Attachment (for 2002-2013) (2 req'd)
Bracketless Emerson 56 Frame Pump Parts (5/2009+)
from $3.00
Please note: These are the Emerson-made version of these pumps. The LX-made pumps are more common (click here for the LX-made versions). You can replace the LX-made pump with an Emerson pump. However, pump parts are not interchangeable. The label will indicate if it is LX or Emerson.
Universal Mounts are available for the J-LX, J-500, J-400, J-300, and J-100 Series hot tubs. Find the specifical hot tub parts and their specifications below:
J-LX/J-LXL/J-500/J-400/J-300/J-100 North America 60Hz
6500-352S Universal Bracket Mount, 1-Speed
6500-365 Universal Bracket Mount, 1-Speed
6500-367 Universal Bracket Mount, 2-Speed
6500-363 Universal Bracket Mount, 1-Speed
Pump Parts
Union Assembly, Straight (O- 6500-232 Ring Included)
Union Assembly, 45° 6500-037 (O-Ring Included)
Union O-Ring (1 ea.) 6000-645
Drain Plug with O-Ring (1 ea.) 6500-547
Screw, Self-Tapping (1 ea.) 6500-548
Housing, Front (Volute) 6500-546
Housing O-Ring 6500-545
Impeller, 2.5hp 6500-549
Seal-Plate, rotation 6500-544
Seal, ceramic, Stationary for North American 60Hz Pumps 6500-543
Rear housing 6500-541
Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-171 **Requires new o-ring 6540-263
O-Ring, 0.434" ID x 0.682" OD x 0.125" 6540-263
Run Capacitor 2.5hp (1&2 Speed Emerson Motors Only) 6000-163
Quartz Tube (part only)
$61.95
Replacement quartz tube for all years of Jacuzzi® Hot Tubs & Sundance® Spas
Suction Fittings: J-300, J-400, J-500, J-LX
from $1.59
J-300 Wall Suction Fitting (2004+)
6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008
6540-564, Grate: Suction
6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw Included)
6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring)
6540-619, Washer: Self Levelling Suction Assy.
6000-564, Screw: 8-32 x 12mm, 316SS
J-300 Series Skimmer/ Filter Wall Fitting (2002+)
6540-126, Fitting: Wall with High Flow Strainer (for High Flow Circ. Models); OR 6540-751, Fitting: Wall with Strainer (for Low Flow Circ. Models)
6540-753, Fitting: Wall w/o Strainer (Jet Pump 1)
6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.)
6540-791, Nut: 2"
6540-241, Reducer: 2" Spigot x 1/2" Slip (for Low Flow Circ. Models)
6540-085, Elbow: 1/2" Spigot x 3/4" Barb (for Low Flow Circ.Models)
J-300 Series Wall Suction (2002-2003)
6540-113, Filter: Spa Drain Cover
J-300 Filter Fill Fitting
6540-329, Filter: Fill Fitting (Reduces Air Locks During Refills).
J-LX, J-500, J-400 (2006+) Wall Suction Fitting
6540-564, Grate: Suction
6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw, Included)
6540-620, O-Ring: Compression, 2"
6540-619, Washer: Self Levelling Suction Assy.
6000-564, Screw: 8-32 x 12mm, 316SS
J-LX, J-500, J-400 (2006+) Skimmer/Filter Wall Fittings
6540-126, Fitting: Wall With High Flow Strainer 2011 (for Circulation Pump)
6540-753, Fitting: Wall w/o Strainer (for Jet Pump 1)
6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.)
6540-791, Nut: 2" Suction Fittings (J-400 Series)
J-400 Filter Fill Fitting
6540-329, Filter: Fill Fitting (Reduces Air Locks During Fill u
J-LX & J-LXL Series Skimmer Shield Parts (2011+)
from $0.35
6570-381, Grill: Jacuzzi 2011
6570-119, Grill: Left Lift Hinge Kit (For 6570-381 Grill)
6570-071, Grill: Right Lift Hinge Kit (For 6570-381 Grill)
6570-061, Magnetic Latch Plate (For 6570-381)
6570-116, Strike plate for 6570-061
6570-122, Clip: (Two Required for 6570-381 Grill)
6570-220, Screw 8-32 x 3/8" PHP Nylon (Two Req'd for 6570-061 Magnetic Latch)
6570-219, Nut: 8-32 x 3/8" Hex Nylon (Two Req'd for 6570-061 Magnetic Latch)
Skimmer Hook Attachment
from $3.00
6570-250, Catch: Shield attachment on spa shell
J-495, J-425, J-415 2012+
All J-400 & J-500 series hot tubs 2013+
All J-300 & J-200 series hot tubs 2006+
6570-251, Hook: Shield attachment on skimmer shield
All J-300 & J-200 series hot tubs 2006+
6570-397, Hook: Shield Attachment
J-495/J-425/J-415 2012+
All J-500 & J-400 series hot tubs 2012+
Circuit Board: J-LX, J-300, J-200 (various years/models)
$645.95
Circuit board for Jacuzzi hot tubs:
J-LX: 2011+
J-300:
2012-2013: J-375, J-365, J-355, J-345, J-335
2008-2011: J-375
2007-2011: J-365, J-355, J-345, J-335
2005-2007: J-325
2002-2006: J-345, J-340, J-335, J-330
2002-2003: J-320
J-200 (only models with circulation pump):
2007-2012: J-280, J-270, J-230
mid-year 2007-2011: J-280, J-270
2005-2017: J-285, J-280, J275, J-270, J-235, J-245, J-230
Part Number Information:
6600-726 All 2004+ J-LX & J-LXL models, Micro Chip 3.61A Included
Replaces: 6600-088, 6600-288 and 6600-167 on all above models
Jet Assemblies: Classic Mini DXL & Mini Duo Rotator Jets
from $1.02
Note: These parts may not be in stock at time of order and may delay your shipment.
Classic Mini
2540-317, Jet Face: 300s Mini (Grey)1b. 2540-319, Jet Face: 300s Mini (Stainless Steel)1c. 6541-575, Jet Face: Classic PRO Mini Duo Rotator
6541-622, Jet Back: 300s (Nut And O-Ring Included)
6541-625, O-Ring: 300s - Not available in Canada
6541-624, Washer/Nut: 300s (Self Leveling)
6541-623, Nut: 300s Jet Back
