Circuit Boards

6600-390, Sundance circuit board for 880 NT systems (1 and 2 pump with PermaClear). IC Processor Rev. 1.1A included. Replaces: 6600-164 and 6600-176 Compatibility April 2009-2015 1 or 2 pump Sundance 880 Series\ excluding Aspen and Maxxus includes: Altamar, Cameo, Capri, Majesta, Marin, Optima 2014-2015 880 NT systems, 1 and 2 pump with PermaClear, (IC Processor Rev. 1.1A included) 2007-2008 to Mid 2012 Optima, Cameo, Altamar, Marin, Majesta, Capri   Note: This product may not be in stock at the time of your order. Your order may be delayed.  This item is a special order and not eligible for cancellation or refund. Please contact us for availability if time sensitive.

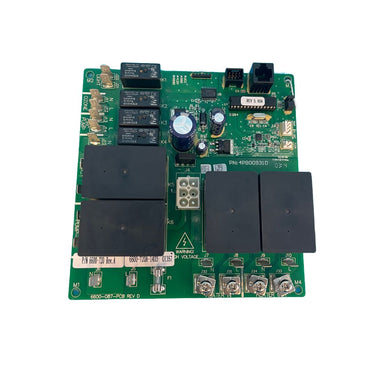

6600-720 – OEM Jacuzzi® circuit board for J-200 LED Series, 2-Pump, 60Hz, North American and Export configuration. Used in spas manufactured from 2014–2017. Includes Micro Chip 5.60A. Compatibility: Jacuzzi® J-280, J-275, J-245, J-235 Models (No Circ. Pump) 2014–2017 Jacuzzi® J-225, J-220, J-215, J-210 Convertible Models 2014–2017 Special Notes: Replaces 6600-046 board for J-280, J-275, J-245, and J-235 models only. Other compatible or related components: View: Circuit Board: J-200 LCD Series – Jacuzzi® J-200 & J-100 (2018+) – 6600-268

6660-289 – OEM Jacuzzi® circuit board for J-300 Series, 1-Pump and 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 2014–2015. Includes Micro Chip version 3.83. Compatibility: Jacuzzi® J-300 Series (2014–2015) with Circulation Pumps, 60Hz, Micro Chip 3.83 Special Notes: Replaces 3.82 and 3.80 chips and includes revised Summer Logic.

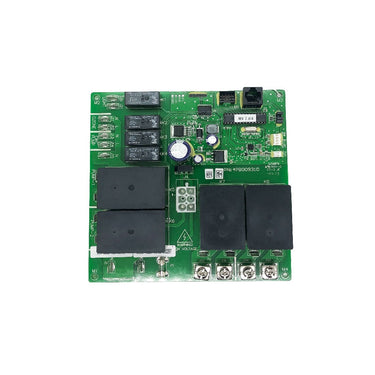

6600-726 – OEM Jacuzzi® circuit board for J-LX & J-LXL Series models, 1-Pump, 60Hz, North American and Export configuration. Used in spas manufactured from 2011–2019. Includes Micro Chip 3.61A. Compatibility: Jacuzzi® J-LX & J-LXL Series, 2011–2019, 60Hz, North American and Export Special Notes: Replaces 6000-167 circuit board for all applicable models.

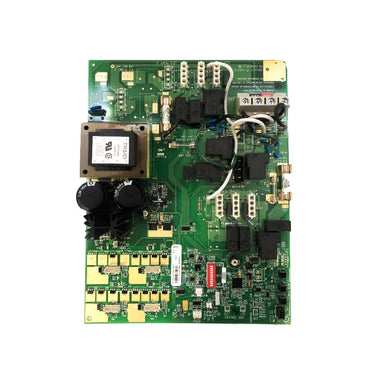

6600-427 – OEM Jacuzzi® circuit board for J-500 Series models, 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 06/2018–Present. Encrypted board. Will not work with older control panels. When used in pre-06/2018 spas, will need to be reprogrammed with Pick-iT kit. Compatibility: Jacuzzi® J-585, J-575 models 06/2018–Present, 2-Pump, 60Hz, North American Special Notes: Encrypted board. Not compatible with older model control panels. Requires reprogramming with Pick-iT kit for pre-06/2018 spas.

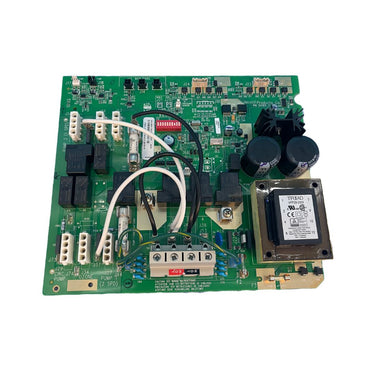

6600-768 – OEM Jacuzzi® circuit board for J-400 LCD Series, 3-Pump, 60Hz, North American configuration. Used in spas manufactured from 09/2015 to 03/2018. Includes factory installed jumper wires and does not require an Eprom. Compatibility: Jacuzzi® J-495, 3-Pump, 60Hz, North American Models (09/2015–03/2018) Special Notes: Encrypted board. Not compatible with older model control panels.

6600-478 – OEM Jacuzzi® circuit board for J-400 Series Models, 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 2019+. Includes encrypted board, not compatible with older model control panels. Compatibility: Jacuzzi® J-485, J-475, J-445, J-435 (2019+), 60Hz, North American configuration Special Notes: Replaces older part numbers. Encrypted board will not work with older control panels.

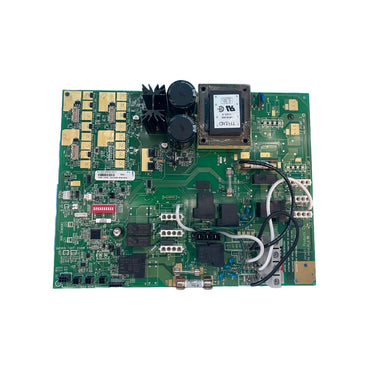

6600-266 – OEM Jacuzzi® circuit board for J-400 LCD Series, 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 10/2017 to 03/2018. Includes factory installed jumper wires and does not require an Eprom. Compatibility: Jacuzzi® J-445 & J-435 Models, 2-Pump, 60Hz, 10/2017–03/2018 Special Notes: Not compatible with older model control panels.

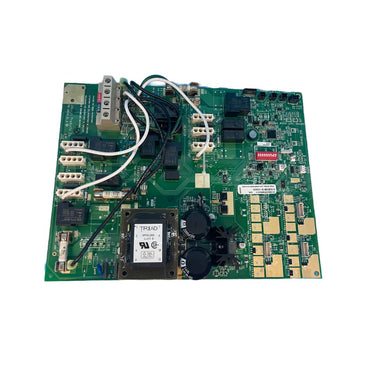

6600-476 – OEM Jacuzzi® circuit board for J-400 Series, 3-Pump, 60Hz, North American configuration. Used in spas manufactured from 2018–Present. Encrypted board, will not work with older control panels. Compatibility: Jacuzzi® J-400 Series, 3-Pump Models, 60Hz, 2018–Present Special Notes: Replaces 6600-424. When used in pre-04/2018 spas, needs reprogramming with Pick-iT kit.

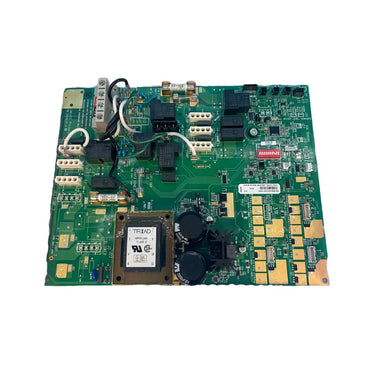

6600-422 – OEM Jacuzzi® circuit board for J-400 Series, 1 or 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 2018 to 2019. Encrypted board, not compatible with older model control panels. Requires reprogramming with Pick-iT kit if used in pre-04/2018 spas. Compatibility: Jacuzzi® J-400 Series: J-480, J-470, J-465, J-425, J-415 (04/2018–2019, EXCEPT J-435/J-445) Special Notes: Not compatible with older model control panels. Requires Pick-iT kit for reprogramming if used in pre-04/2018 spas.

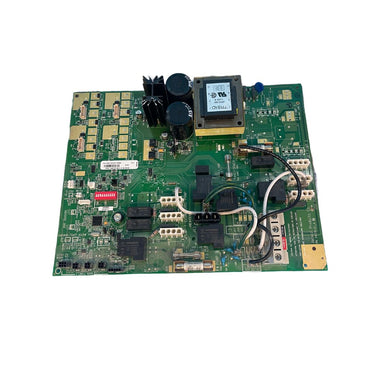

6600-766 – OEM Jacuzzi® circuit board for J-400 Series, 1 or 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 09/2015 to 03/2018. Includes factory installed jumper wires and does not require an Eprom. Compatibility: Jacuzzi® J-400 Series, J-480, J-470, J-465, J-425, J-415 (09/2015–03/2018, 1 or 2-Pump, 60Hz, North American) Special Notes: Not compatible with 10/2017+ J-445 & J-435 models.

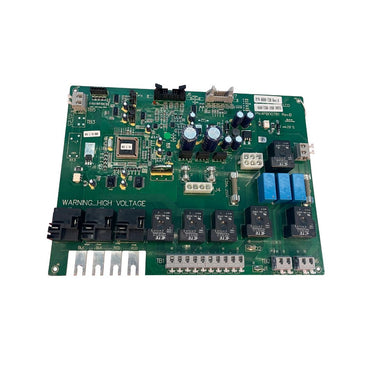

6600-728 – OEM Jacuzzi® circuit board for J-400 Series, 1 or 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 2008 to mid-2009. Includes microprocessor control and does not require an Eprom. Compatibility: Jacuzzi® J-400 Series, 1 & 2-Pump Models, 60Hz, North American (2008–Mid 2009) Special Notes: Replaces 6600-180 board. Also replaced 6600-161 board below.

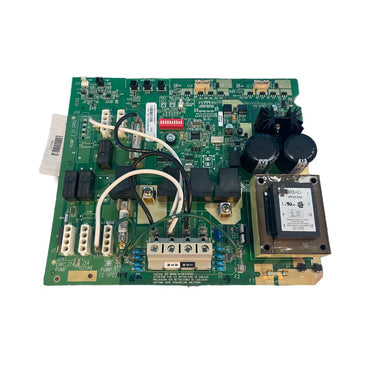

6600-412 – OEM Jacuzzi® circuit board for J-300 Series models, 1-Pump, 60Hz, North American configuration. Used in spas manufactured from 2018–Present. Encrypted board, requires reprogramming with Pick-iT kit if used in pre-06/2018 spas. Compatibility: Jacuzzi® J-300 Series, 1-Pump, 60Hz, North American Models (2018–Present) Special Notes: Encrypted board - Not compatible with older model control panels. Requires reprogramming with Pick-iT kit if used in pre-06/2018 spas.

6600-296 – OEM Jacuzzi® circuit board for J-300 LED Series, 1-Pump, 60Hz, North American configuration. Used in spas manufactured from 2014–2015. Includes Micro Chip 3.83. Compatibility: Jacuzzi® J-325, J-315 (2014–2015) – 1-Pump, 60Hz, North American configuration Special Notes: Replaces 6600-293, 6600-295 boards. Supports models with the CLEARRAY® On-Demand function.

6600-297 – OEM Jacuzzi® circuit board for J-300 LED Series, 2-Pump, 60Hz, North American configuration. Used in spas manufactured from 2014–2015. Includes Micro Chip 3.83. Compatibility: Jacuzzi® J-385, J-375, J-365, J-355, J-345, J-335 Models, 60Hz, 2014–2015, North American configuration Special Notes: Replaces 6600-293 board below. Other compatible or related components: View: Circuit Board: J-300 LED Series – Jacuzzi® J-325, J-315 (2014–2015) – 6600-296
