19 products
Bracketless LX 56 Frame Pump Parts (5/2009+) - Hot Tub Store
Bracketless LX 56 Frame Pump Parts (5/2009+)
from $0.50

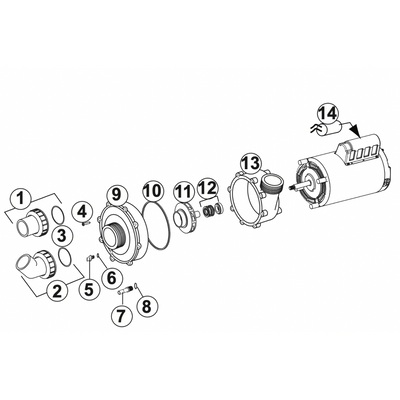

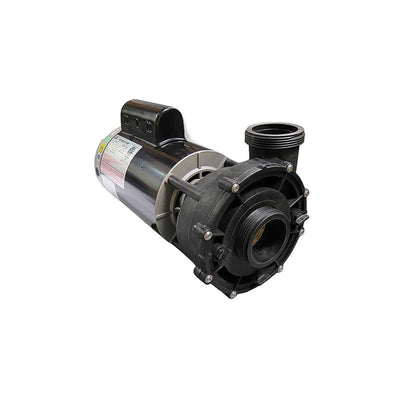

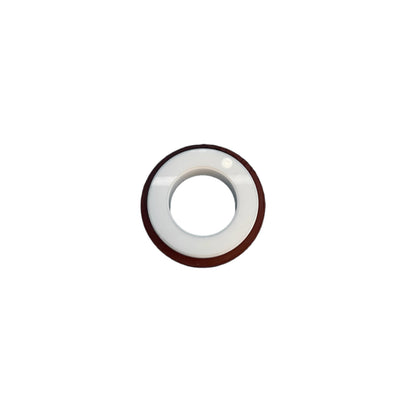

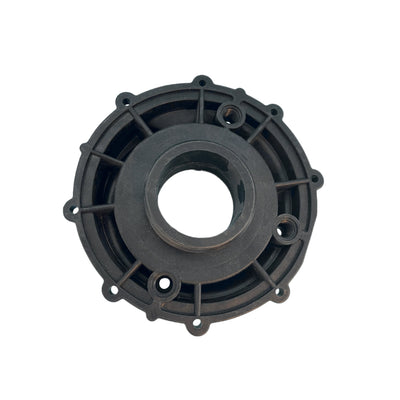

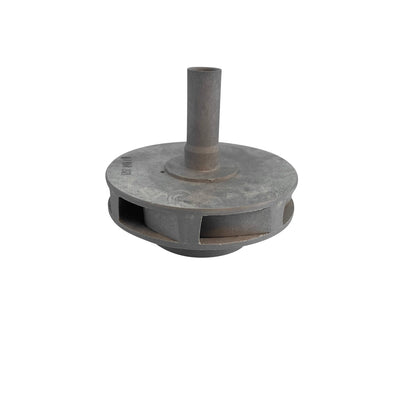

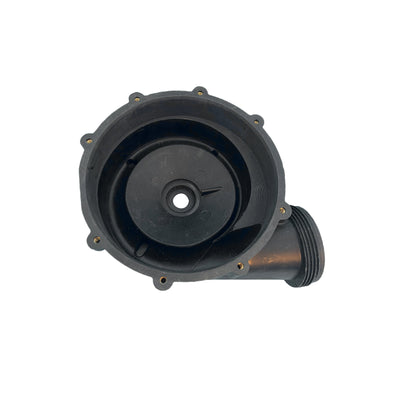

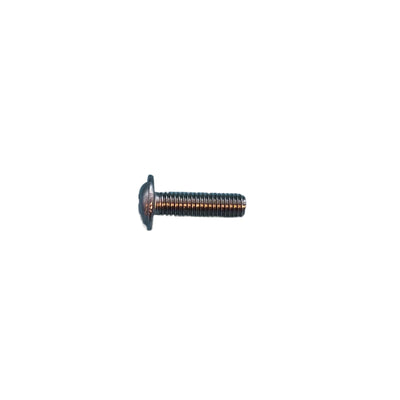

J-LX/J-LXL/J-500/J-400/J-300/J-200/J-100 North America 60Hz Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)   Compatible Pumps (LX Version; Not Emerson) 6500-352S 6500-365S 6500-367S 6500-363S 6500-845S 6500-090S 6500-357S   6500-232 Union Assembly, straight (o-ring included) 6500-037 Union Assembly, 45 degree (o-ring included) 6000-645 Union o-ring 6500-601 Screw, Self-Tapping (1 ea) 6500-602 Drain Plug 6500-603 Drain Plug O-Ring 6540-171 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (replaced 6540-030) 6540-263 O-Ring, 0.434"ID x 0.682" OD x 0.125"  6500-604 Housing, Front (Volute) 56FR 6500-605 Housing O-Ring 6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 6500-281 Seal-Stationary ASM (PS200) 6500-606 Housing Rear 56FR 6500-613 Run Capacitor 2.5HP (for 1 & 2 speed LX motors ONLY)
Bracketless Emerson 56 Frame Pump Parts (5/2009+) - Hot Tub Store
Bracketless Emerson 56 Frame Pump Parts (5/2009+)
from $3.00

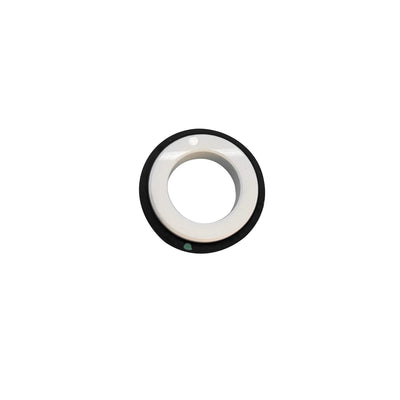

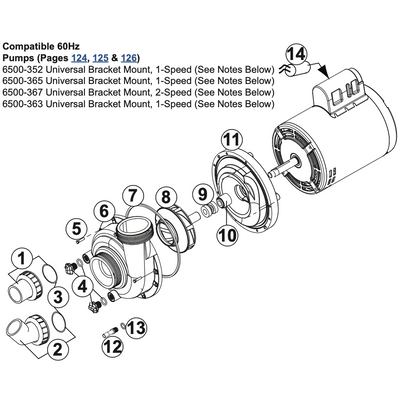

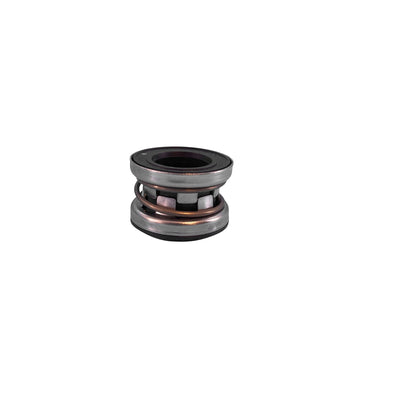

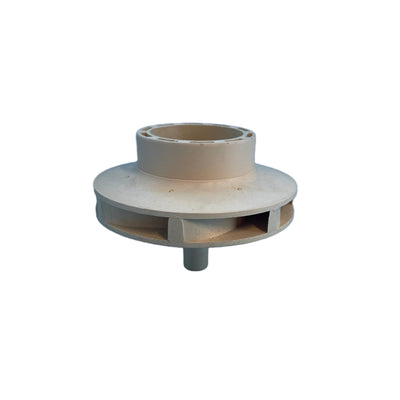

Please note: These are the Emerson-made version of these pumps. The LX-made pumps are more common (click here for the LX-made versions). You can replace the LX-made pump with an Emerson pump. However, pump parts are not interchangeable. The label will indicate if it is LX or Emerson.     Universal Mounts are available for the J-LX, J-500, J-400, J-300, and J-100 Series hot tubs. Find the specifical hot tub parts and their specifications below:    J-LX/J-LXL/J-500/J-400/J-300/J-100 North America 60Hz  6500-352S Universal Bracket Mount, 1-Speed 6500-365 Universal Bracket Mount, 1-Speed 6500-367 Universal Bracket Mount, 2-Speed 6500-363 Universal Bracket Mount, 1-Speed   Pump Parts Union Assembly, Straight (O- 6500-232 Ring Included) Union Assembly, 45° 6500-037 (O-Ring Included) Union O-Ring (1 ea.) 6000-645 Drain Plug with O-Ring (1 ea.) 6500-547 Screw, Self-Tapping (1 ea.) 6500-548 Housing, Front (Volute) 6500-546 Housing O-Ring 6500-545 Impeller, 2.5hp 6500-549 Seal-Plate, rotation 6500-544 Seal, ceramic, Stationary for North American 60Hz Pumps 6500-543 Rear housing 6500-541 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-171 **Requires new o-ring 6540-263 O-Ring, 0.434" ID x 0.682" OD x 0.125" 6540-263 Run Capacitor 2.5hp (1&2 Speed Emerson Motors Only) 6000-163
Low Flow Circulation Pump / Replacement Kit - Hot Tub Store
Low Flow Circulation Pump / Replacement Kit
from $0.37
Individual Circulation Pumps For J-300 Non-Convertible Spas (2002-2011)All J-280/J-270/J-230 Non-Convertible Spas with The Circ. Pump Option (2002-2011)   6000-125E (Laing) or 6000-125NA (Grundfos), Circulation Pump: E10, 240V 50/60Hz with Cord. This pump replaces retired 6000-125, 6500-035 pumps. 6500-460 (Laing)or 6500-460NA (Grundfos), Circulation Pump: E10, 120V with Chord. This pump replaced retired 6500-038 pump.     Note: The following parts are recommended when replacing a 6500-125 low-flow circulation pump. These products are also known as kit 6000-125RK (Grunfos pump + installation kit). They can be ordered as a kit or individually. Recommended quantities: 2x  27mm clamp (6570-033) 2x  #6 x 1" Flat Head Wood Screw (6570-100) 1x   3/4" Barb x Barb adapter (6541-075) 1x   3/4" Barb x Barb elbow (6540-228) 3x   3/4" Clear PVC Hose (sold by the foot for a total of 3') (6540-744)
North American 60Hz High-Flow Circulation Pumps

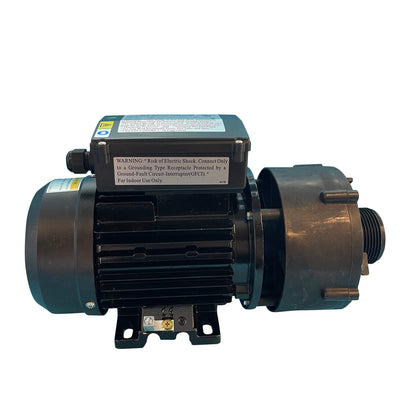

North American 60Hz High-Flow Circulation Pumps
from $0.41
Compatible with All J-LX & J-LXL Models (2011+) All J-500 Models (2015+) All J-400 models except J-415 (Jan 26, 2012+) J-415 Models (October 2, 2013+) J-385, J-375, J-365, J-355 Models (2012+) J-345, J-335 Models (2012-8/11/15) 6500-907S, LX Pump: 240V 60Hz, 48 Frame, 3'Oclock (1.5" Unions); 13.7" overall length Mounting Hardware (All Models) 6570-011, Insulator: 1" x 1.5" Rubber (4 Required) 6570-126, Nut: Hex 5/16-18 (4 Required) 6570-127, Washer, Split-Lock 5/16 (4 Required)
J-300/J-200 Pump Replacement Parts (Prior to June 2009) - Hot Tub Store
J-300/J-200 Pump Replacement Parts (Prior to June 2009)
from $0.71

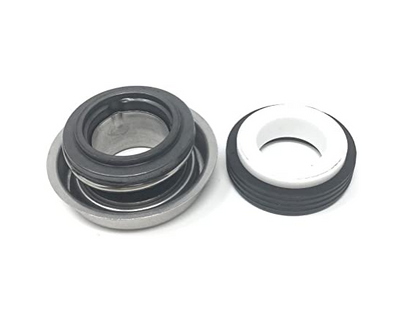

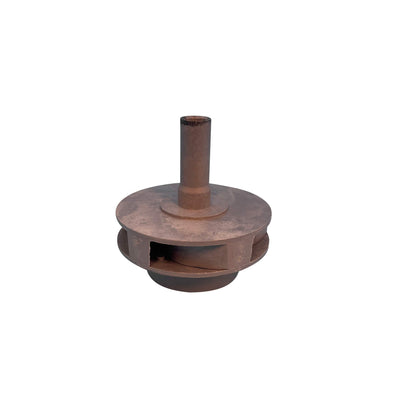

*Parts on this page may not be in stock and may be delayed for shipment J-300/J-200 Fixed Bracket 48 Frame (60Hz) Pump Replacement Parts (Prior to June 2009) 6000-031, 2" Split nut6500-232, 2" Straight Union Assembly (includes 2" O-ring)6500-037, 2" 45° Union Assembly (includes 2" O-ring)6500-288, Front Housing for 2.5 hp (all years) and 2.0 hp (July 2003 - December 2009)6500-287, Font Housing for 2.0 hp (1999-June 2003) No longer available6540-171, 1/4-18 NSPM threadx 3/8"Barb, Stainless Steel Adapter (replaces 6540-030) Requires 1x 6540-171 O-ring (below)6540-263, O-ring (0.434" IDx 0.682" OD x 0.125" )6570-070, Self-tapping screw6500-255, Drain plug (1/4" NPSM)6500-256, Drain plug o-ring (0.47" ID x 0.103" )6500-290, Front Housing O-Ring6500-281, Seal (2.0hp 0.625" Shaft, PS200, 2002-June 2006) 6500-805, Seal (2.5hp 0.75" Shaft, PS201, all years) 6500-286, Rear bracket (2.0hp 1999-June 2003) No longer available6500-311, Rear bracket (2.0hp July 2003+, 2.5hp all years)Impellers6500-295, Impeller for 2.5hp (4.129" Diameter)6500-296, Impeller for 2.0hp (3.875" Diameter)6500-309, Impeller for 2.0hp (5.025" Diameter)6500-308, Impeller for 1.5hp (3.65" Diameter) No longer available  Compatibility: 6500-707 (2-Speed), 6500-753 (2-Speed), 6500-754 (2-Speed), 6500-758 (2-Speed), 6500-759 (2-Speed), 6500-761 (2-Speed), 6500-769 (1-Speed), 6500-763 (1-Speed)
J-300/J-200 North America 60Hz Bracketless - Hot Tub Store
J-300/J-200 North America 60Hz Bracketless
from $26.95

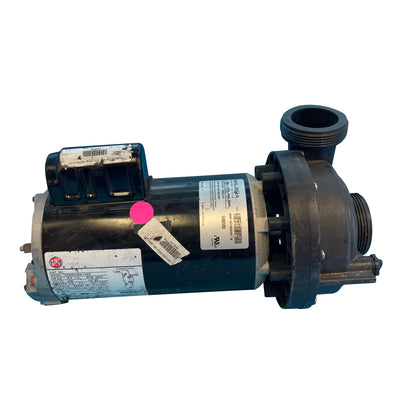

6500-341S Universal Bracket Mount, 1-Speed 6500-343S Universal Bracket Mount, 2-Speed   6000-031 Nut: Split Replacement 2" 6500-232 Union: Assembly 2" (Straight) 6500-037 Union: Assembly 2" (45°) 6000-645 O-Ring: 2" 6540-171 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-263 O-Ring, 0.434" ID x 0.682" OD x 0.125" 6500-546 Housing: Front 6500-548 Screw: Self-Tapping 6500-547 Plug: Drain And O-Ring 6500-545 O-Ring: Front Housing 6500-549 Impeller, 2.5hp6500-550 Impeller, 2.0hp6500-551 Impeller, 1.5hp 6500-543 Seal (Stationary) ASM-PS200 6500-544 Seal (Rotating) ASM-PS200 6500-540 Housing: Rear Bracket 6500-449 Start Capacitor, 240V 6500-448 Start Capacitor, 120
Pump: 6500-345 - Hot Tub Store

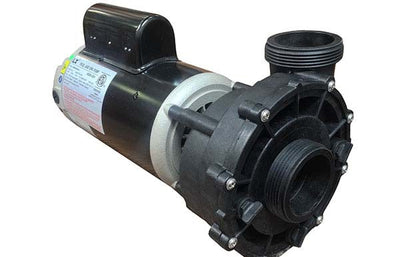

Pump: 6500-345
$700.95
6500-345, 1.5 Horsepower, 120V/60Hz, 2-speed, 48 frame pump*This pump will need a universal mount when replacing fixed mount pumpsUsed in: J-210 (2005-2014) J-220 (2005-July 2010) J-315 (2005-2014) J-325 (2002-2004, Aug 2008-2014) Del Sol Redondo (all years) Del Sol Hermosa (all years)
North American 60Hz Low-Flow Circulation Pumps
North American 60Hz Low-Flow Circulation Pumps
$339.95
6000-314 Kit For 120V Convertible Spas: Includes one 6500-066, 120V Circulation Pump And Items 1-9 Below Clamp: 27mm Screw: #6 x 1" Wood (Flat Head) Adapter: 3/4" Barb x Barb Elbow: 3/4" Barb x Barb Wire: #6, Bare Copper, 36" (Bonding Wire) Hose: 3/4" Clear PVC, 36" Nut: Circ Pump 3QADAP 2014 (Included on Circulation Pump) Barb: Circ Pump 3QADAP 2014 (Included on Circulation Pump) Gasket: Circ Pump 3QADAP 2014 (Included on Circulation Pump) This Product is a Special Order and is not in stock. Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled.Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information.If a special order item is ordered with other non-special order items, it will delay the entire order.
Circulation Pump: 6500-905S - Hot Tub Store
Circulation Pump: 6500-905S
$558.95
6500-905S Circulation Pump for J-335 and J-345 models (after August 2015) 240V 60Hz 48 Frame 9'Oclock (1.5" Unions)

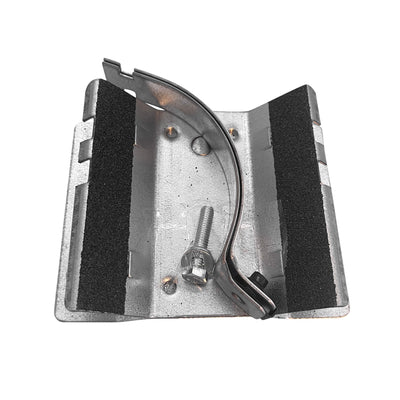

Universal 48 Frame Pump Bracket Kit (2007+)

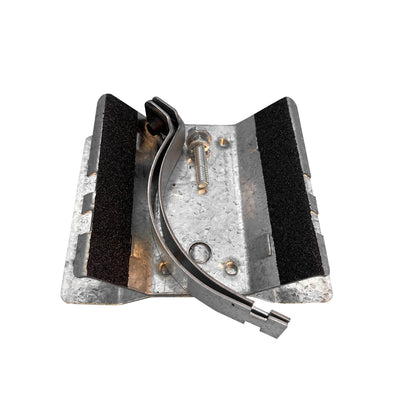

Universal 48 Frame Pump Bracket Kit (2007+)
$60.95
Universal Mounting Bracket Assembly (Complete)Includes: Bolt: 5/16-18 x 1/2"Flat Washer 5/16"Lock Washer 5/16"Bracket: 48 Frame, Half BandBracket: 48 Frame, Half Band (Captive Nut)Base: Universal Cradle BracketNut, 5/16-18 ThreadWasher, Split-Lock, 5/16"Washer, Flat 3/8"Pump Insulator
Balboa Pumps
Balboa Pumps
$797.95
1014210, 1.0HP Dual Speed 120V pump with female buttress thread (3 o'clock wet end rotation) (Nordic part # 044021)   Pumps are non-refundable purchases. If in doubt, please reach out to our team for assistance.
Waterway Executive 56 Frame 2-Speed Pumps - Hot Tub Store
Waterway Executive 56 Frame 2-Speed Pumps
from $2.95
Note: Wet ends and impellers are special orders. Once the order is placed, it cannot be cancelled, refunded or exchanged.    HP Voltage Amperages (high/low) Plumbing Wet End Seal Impeller 3721221-1D 3 HP 240 V 10.0 / 3.4 Amps 2" in / 2" out 310-1730 PS10002018+ requires o-ring 805-0028 310-4200
Pump: J-225/J-215/J-210/J-125/J-115 (6500-845S)
Pump: J-225/J-215/J-210/J-125/J-115 (6500-845S)
$731.95
6500-845S 2-Speed 48 Frame 1.5 Horsepower 120 Volt Compatible with: 2015+ J-225/J-215/J-210 2015+ J-125/J-115 2019+ Sundance Alicia 2015+ Sundance Denali 2015+ Sundance Dover 2017+ Sundance Prado and Prado 5 Also replaces: 6500-258 (will require universal bracket system: 6000-532) 6500-758 (will require universal bracket system: 6000-532) 6500-259 (will require universal bracket system: 6000-532)
Waterway Executive 48 Frame 2-Speed Pumps - Hot Tub Store
Waterway Executive 48 Frame 2-Speed Pumps
from $464.11
4-10-WW3420410-1A 120V, 1.0HP, 11.0/2.9 amps, 2" in/out *Discontinued 4-10-WW3420610-1A  120V, 1.5HP, 13.8/4.7 amps, 2" in/out 4-10-WW3420620-1A  240V, 1.5HP, 8.0/2.6 amps, 2" in/out
Waterway Pump 4-10-WW3721621-1T - Hot Tub Store
Waterway Pump 4-10-WW3721621-1T
$750.00
Waterway-Viper, 56 Frame, 2 speed, 240V, 60 Hz, 4.0HP, 2.5" In/Out Piping, Amps 12/4.4.   This pump has a "side discharge".   It can be rotated into three positions 12pm, 3pm, 9pm.   Model # 4-10-WW3721621-1T
