Description

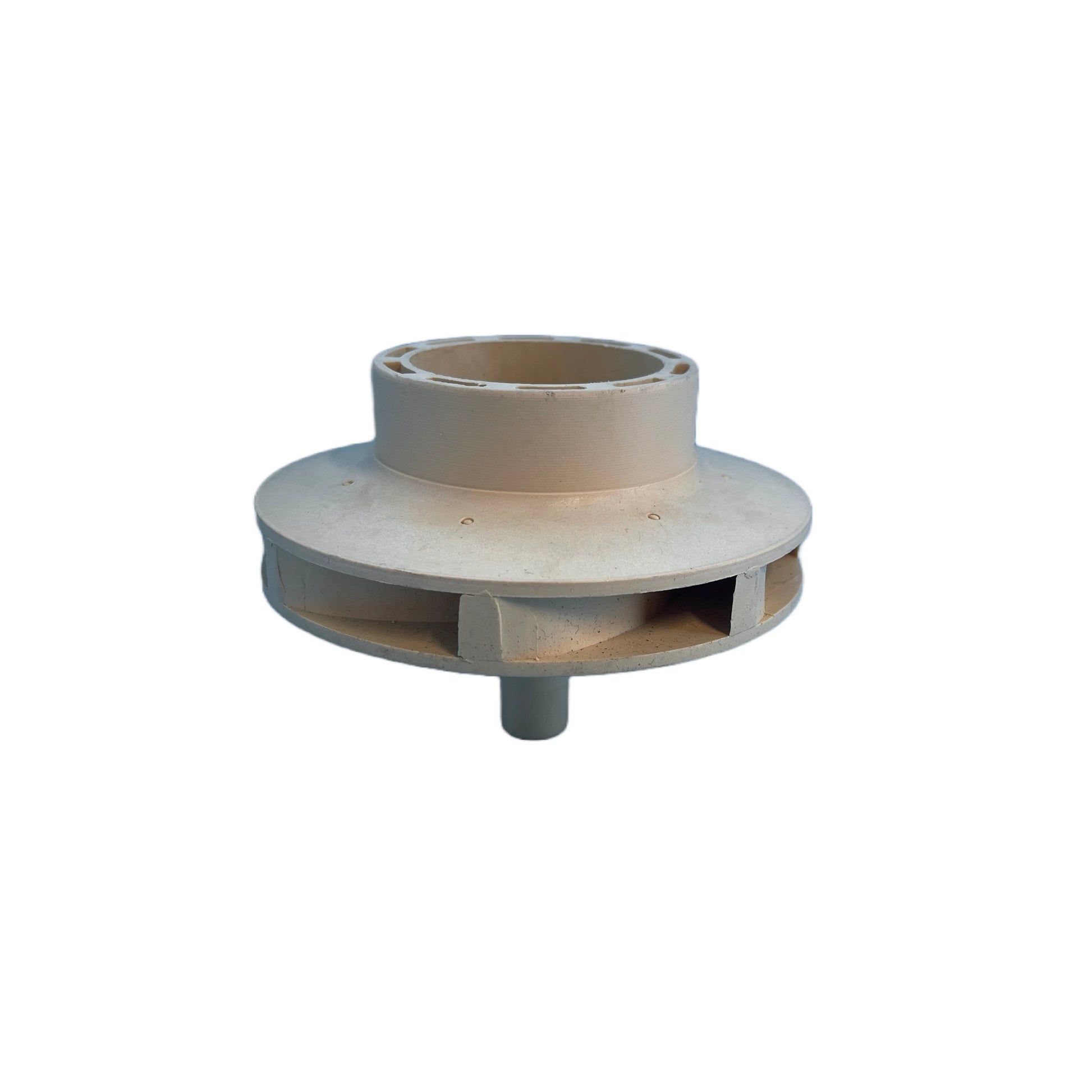

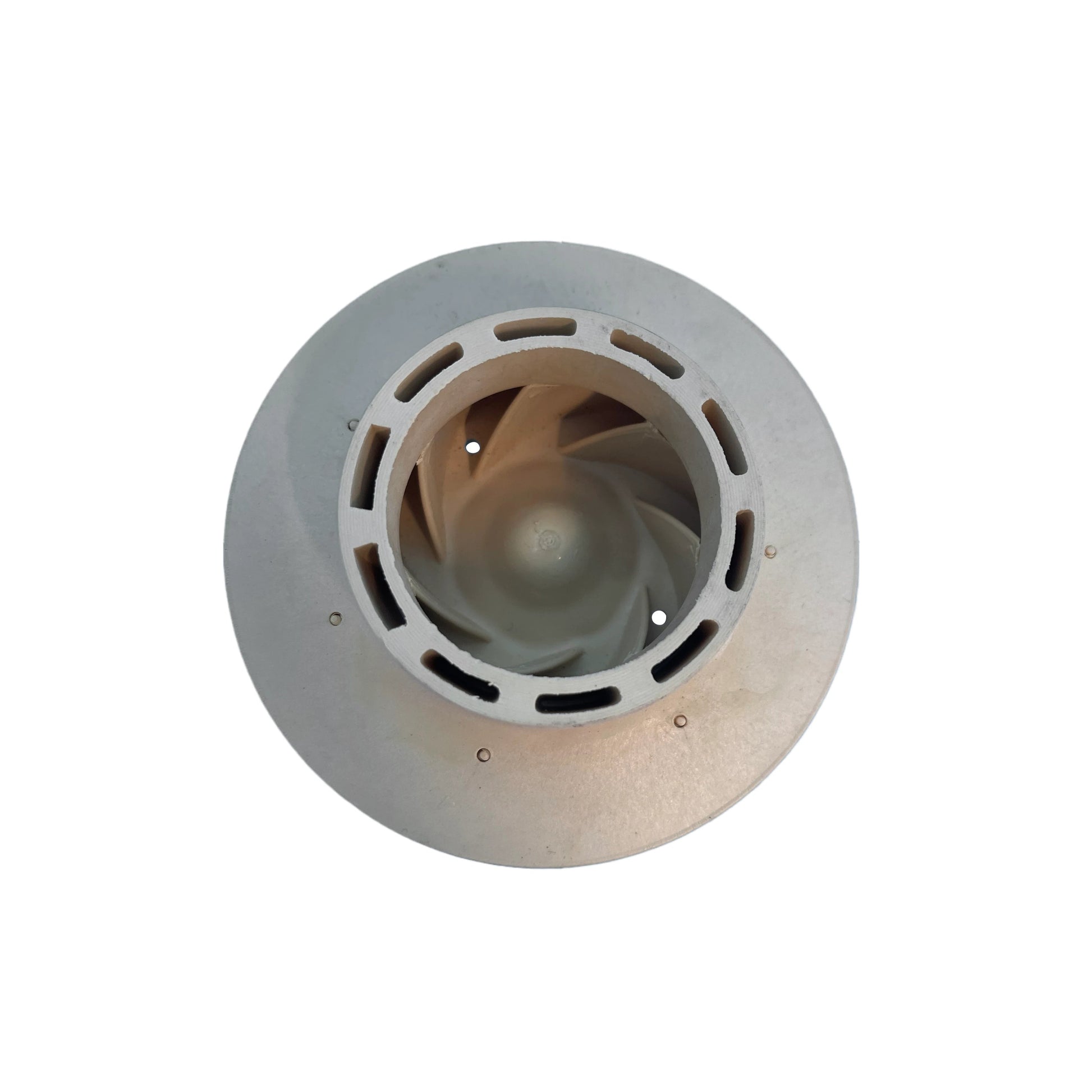

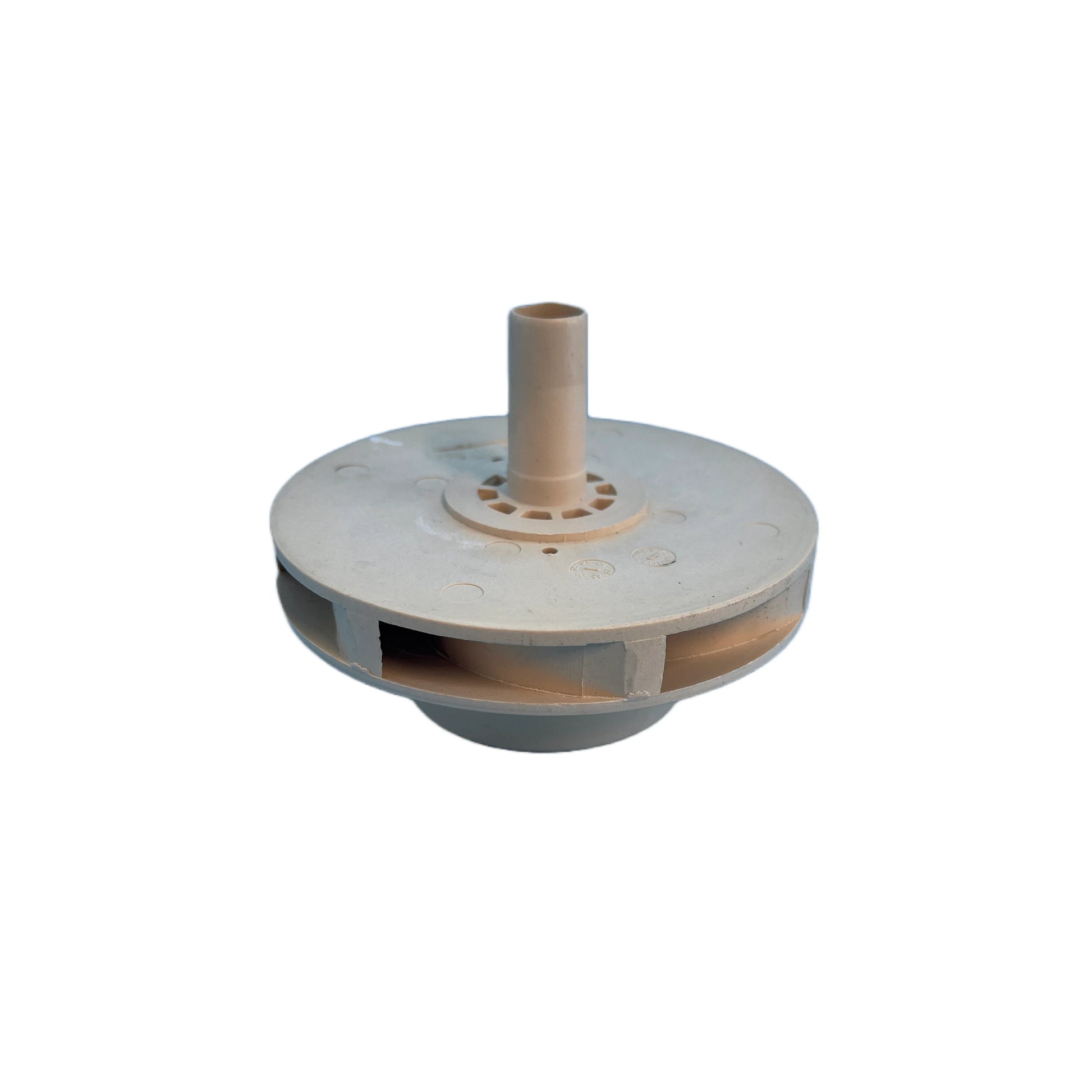

6500-612 – OEM Jacuzzi® Impeller, 2.5hp. Used in J-LX/J-LXL/J-400/J-300/J-200/J-100 Series, 60Hz. Designed for 1 & 2 Speed Motors, 56FR.
Compatibility:
- Jacuzzi® J-LX/J-LXL/J-400/J-300/J-200/J-100 Series (2009+), 60Hz
Special Notes: Used on 1 & 2 Speed Motors, 56FR. Ensure compatibility with specific pump models and configurations.
Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)
Compatible Pumps:
- 6500-352S – Universal Bracket Mount 56 FR, 1-Speed
- 6500-365S – Universal Bracket Mount 56 FR, 1-Speed
- 6500-367S – Universal Bracket Mount 56 FR, 2-Speed
- 6500-363S – Universal Bracket Mount 56 FR, 1-Speed
- 6500-845S – Universal Bracket Mount 48 FR, 2-Speed
- 6500-357S – Universal Bracket Mount 48 FR, 1-Speed

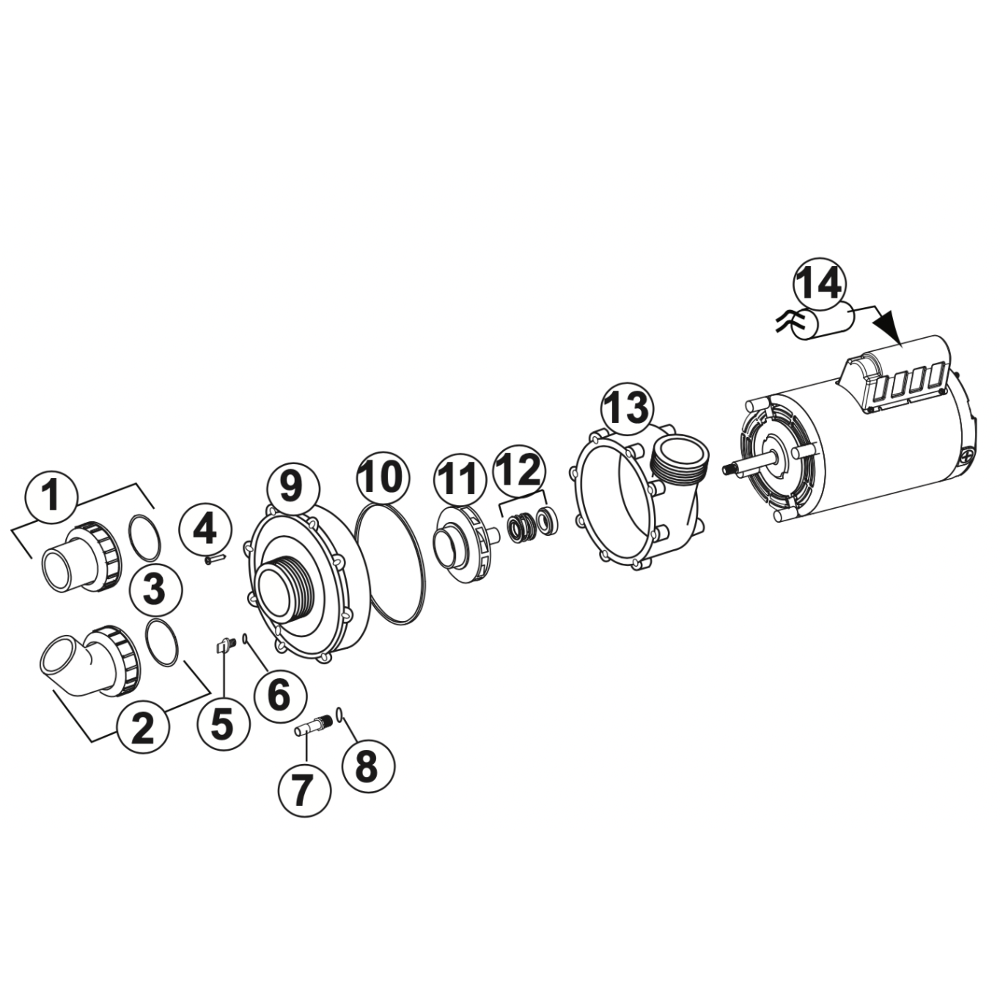

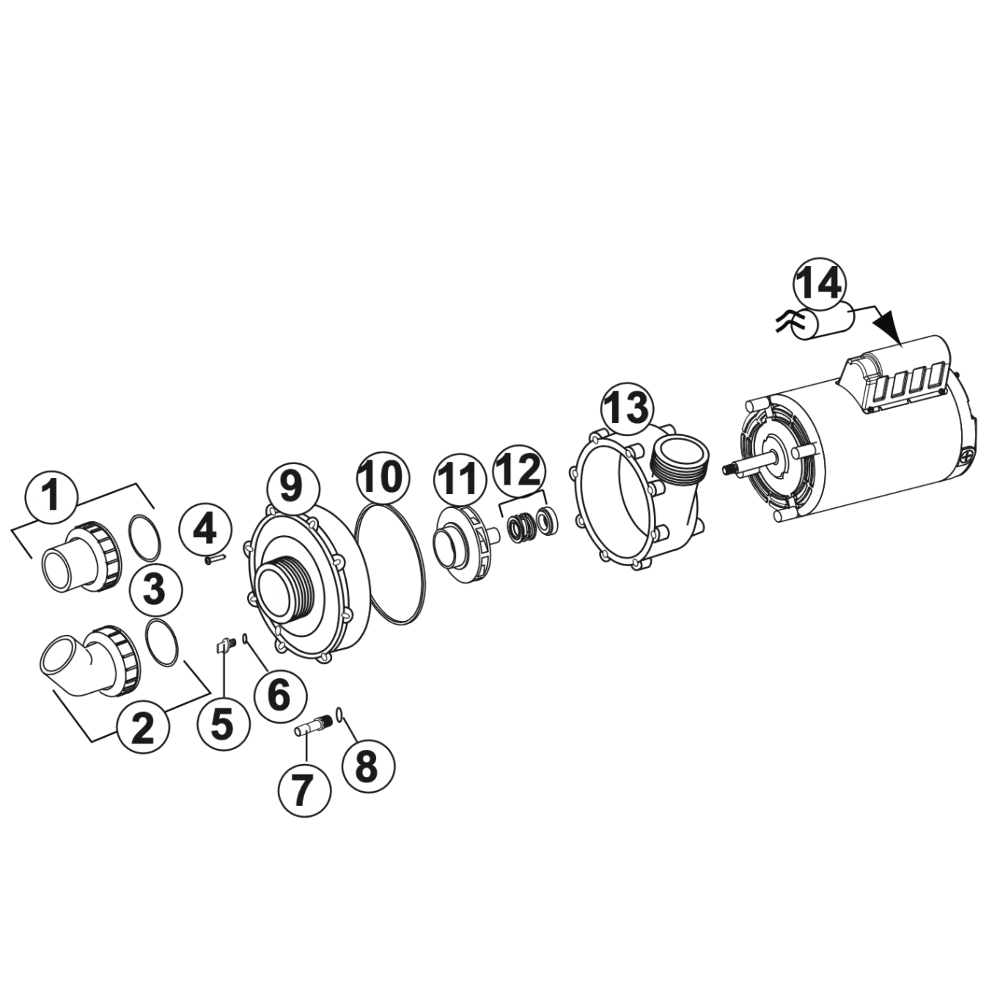

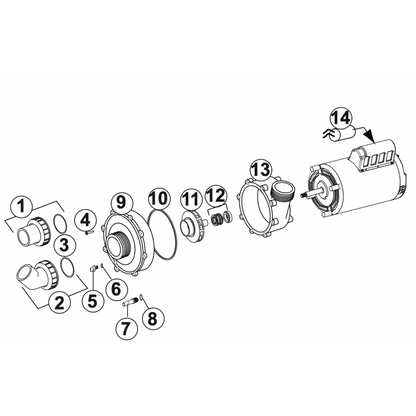

| Item # | Part # | Description |
|---|---|---|
| 1 | 6500-232** | Union Assembly, Straight (O-Ring Included) |
| 2 | 6500-037** | Union Assembly, 45° (O-Ring Included) |
| 3 | 6000-645 or 6000-554** | Union O-Ring (1 ea.) |
| 4 | 6500-601 | Screw, Self-Tapping (1 ea.) |
| 5 | 6500-602 | Drain Plug |
| 6 | 6500-603 | Drain Plug O-Ring |
| 7a | 6540-171* | Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (Replaces 6540-030) |
| 7b | 6540-030 | Adapter, 0.25" MIPT x 0.375" Barb, Glass Filled Polypropylene - Noryl |
| 8 | 6540-263* | O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø |
| 9 | 6500-604 | Housing, Front (Volute) 56FR |
| 10 | 6500-605 | Housing O-Ring 56FR |
| 11 | 6500-612 | Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 56FR |
| 12 | 6500-281 | Seal-Stationary ASM (PS200) |
| 13 | 6500-606 | Housing Rear 56FR |
| 14 | 6500-613 | Run Capacitor 2.5hp (for 1&2 Speed LX Motors Only) |
| 15* | 6500-010* | Housing: Front Lingxo 48FR* |
| 16* | 6500-012* | Housing: Back Lingxo 48FR* |
| 17* | 6500-013* | Impeller: 1-1/2 HP Lingxo 48FR* |
| 18* | 6500-014* | O-Ring front housing Lingxo 48FR* |
| 19* | 6500-281* | Mechanical seal Lingxo 48FR* |
Note 1. All J-LX/J-LXL/J-400/J-300 Series pump housings are universal and can be rotated to fit various configurations.
Note 2. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.
Note 3. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.
* Not shown
