Plumbing (54)

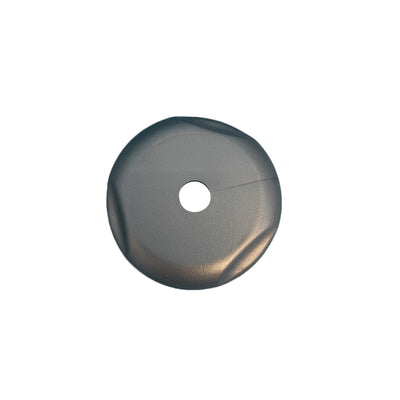

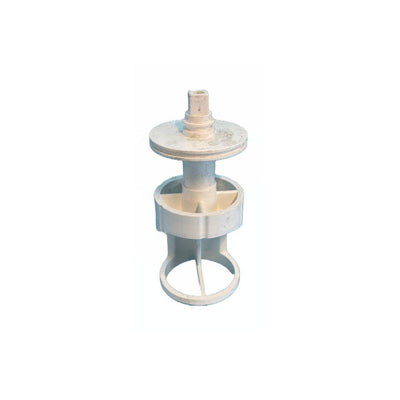

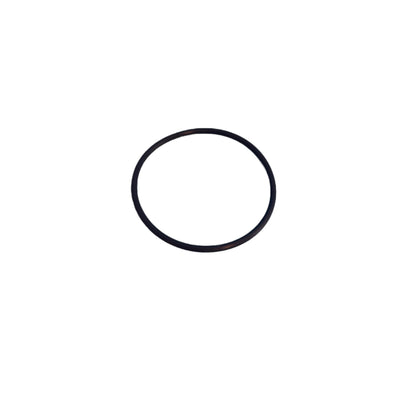

J-LX & J-LXL Series (2011+) Assembly Used on 2020+ J-425 & J-495, 2019+ J-485 & J-475 and 10/2017+ J-445 & J-435 6540-439, Knob: Diverter J-445, 2017 6540-455 Nut: Diverter J-400 (Grey) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D. 6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 (6540- 550 O-Ring Purchased Separately) 6541-014, Fitting: Wall T-Valve J-400 (Clear) 6560-320, Light ring: Diverter Top HT This item is not stocked and made to order. Final sale (not eligible for a refund). 6560-312, Nut: J400 (Clear) 6540-560 (2/16/18+), Body: T-Valve 2018  Assembly Used on All other 2016+ J-400 Models 2540-533, Knob: Diverter (2007+ J-400/J-300) 20090-001, Knob: Diverter (2006 J-400 Series) 6540-729, Cap: Diverter (All 2002+ Models) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D.  6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967

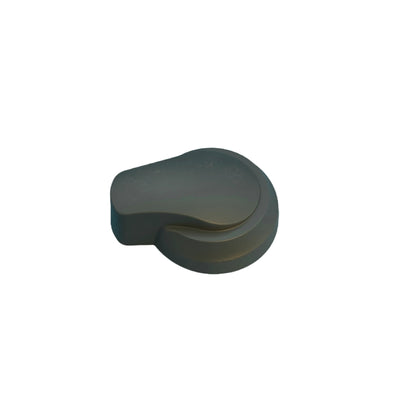

J-300 Models 2020+ 6541-344, Knob: Diverter, J-300 2020 6540-434, Nut: Diverter HT 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D. 6540-550, O-Ring: Diverter Gate, 2.175 I.D.  6540-568, Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560, Body: T-Valve 2018  Assembly Used on All other 2016+ J-300 Models 2540-533, Knob: Diverter (2007+ J-400/J-300) 20090-001, Knob: Diverter (2006 J-400 Series) 6540-729, Cap: Diverter (All 2002+ Models) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D.  6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967

J-300 Series 2016+ 6560-905, 2016+ Waterfall (12VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket purchased separately below. 6541-068, 2014+ Waterfall Cover; 2540-906, Gasket: Waterfall 2560-904, Nut: Waterfall 2014/2015 6560-125 2014-2015 Waterfall (15VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket Purchased Separately Below. 6541-068, 2014+ Waterfall Cover; 2540-906, Gasket: Waterfall 2560-904, Nut: Waterfall 2007-2012 2540-904, Waterfall: Complete Kit (no longer available) 2540-905, Waterfall cover (no longer available) 2540-906, Waterfall gasket 2560-904, Waterfall nut

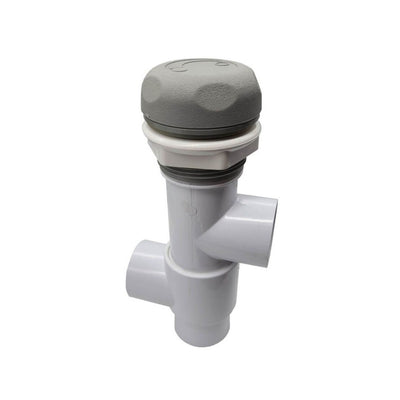

Waterfall Valve (For J-475, J-485, 2019+ J-435, J-445 & 2020+ J-425, J-495 models) 6540-695, Knob: Waterfall J-475/J-485 6541-081, Valve: Waterfall, 3-way 1" without knob IX Jet Valve (Pre-2019 J-445 & J-435 models**) 6540-451, Knob: Waterfall J-445 20241-001, Valve: 90°, 2-Way, 1-1/2" Slip Waterfall Valve (Pre-2019 J-445 & J-435 models**) 6540-451, Knob: Waterfall J-445, 2017 6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (Includes item 2a)  (includes  6541-069, T Gasket)2a. 6570-462 Replacement C-Clip: Waterfall Valve 6000-506, O-Ring for 3-Way Waterfall Valve 6541-069, "T" Gasket for 3-Way Waterfall Valve 20172-001, Valve: Plumbing 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately Waterfall (for All J-485, J-475, J-445 & J-435 models and 2020+ J-425, J-495 models) 6560-119, Cover: 1 Waterfall LED Light J-400, 2017 6473-310, Base; ABS Waterfall Assembly (Complete) Note: Includes Body, Barb 2 Fittings, compensating washers, and Mounting Nuts. IX Jet Valve (2006+ J-400 Series EXCEPT for J-435 & J-445) 20150-001, Knob: 2006+ 1 J-400 Waterfall Valves & Waterfalls (J-400) Waterfall Valve (2006-2019 J-400 Series*) 20241-001, Valve: 90°, 2-Way, 1-1/2" Slip Waterfall Valve (2006-2019 J-400 Series*) 20150-001, Knob: 2006+ J-400 Waterfall 6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (includes  6541-069, T Gasket) 6000-506, O-Ring for 3-Way Waterfall Valve 5  6541-069, "T" Gasket for 3-Way Waterfall Valve 20172-001, Valve: 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately. Waterfall (2006-2019 J-400 Series*) 20095-001, Cover: Waterfall J-400 Series 6541-063, Fill Spout: Waterfall "Niagra" J-400 Series (Includes 2 Nuts And 2 Self-Leveling Washers) 6540-935, Gasket: 1.25" ID "Niagra" J-400 (2 Req'd.)

Air control valves are available for sale for the J-LX hot tub and the J-LXL hot tub. Individual air control components and their specifications are listed below: J-LX & J-LXL Air Control Valve (2011+) J-300 Air Control Valve (2007+) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control J-300 Air Control Valve (2002-2006) Air control valves are available for sale for the J-300 Hot Tub Series. Individual air control components and their specifications are listed below: 6540-914, Control: Air Push Button 6540-913, Gasket: Push Button Air Control ( 6541-143) Replacement.  6540-522, O-Ring: Push Button Air Control 6540-912, Manifold: Push Button Air Control 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control  J-LX/J-LXL Air Bleed Line Fitting (2011+) J-300 Air Bleed Line Fitting (2005+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray

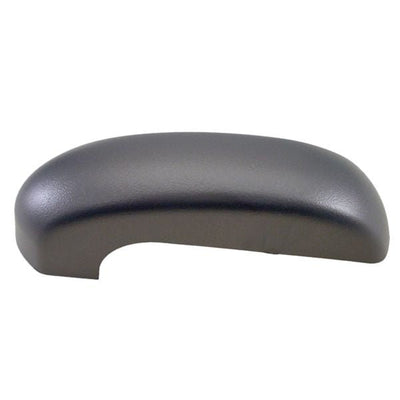

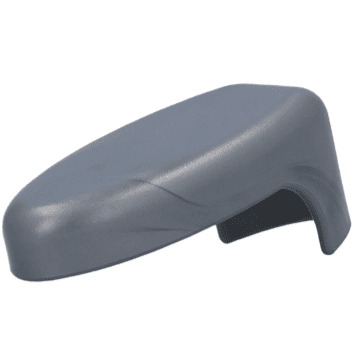

Diverter Valve Knob 2540-533, Knob: T-Valve Compatibility: J-LX/J-LXL: 2007+ J-400: 2007+ (excluding J-485/J-475 2019+, J-445/J-435 Oct 2017+) J-300: 2007+  6540-728, Knob: T-Valve Compatibility: J-300: 2002-2006

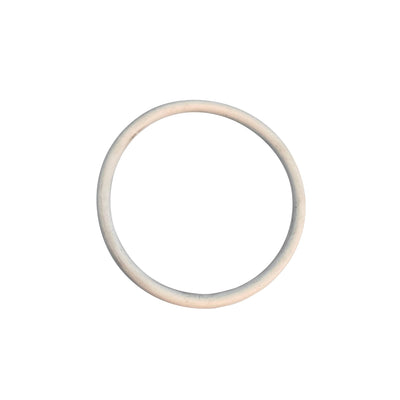

J-300 Wall Suction Fitting (2004+) 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008 6540-564, Grate: Suction 6540-565, Fitting: Wall  Suction (Nut and 6000-564 Screw Included) 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring) 6540-619, Washer: Self Levelling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-300 Series Skimmer/ Filter Wall Fitting (2002+) 6540-126, Fitting: Wall with High Flow Strainer (for High Flow Circ. Models); OR 6540-751, Fitting: Wall with Strainer (for Low Flow Circ. Models) 6540-753, Fitting: Wall w/o Strainer (Jet Pump 1) 6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.) 6540-791, Nut: 2" 6540-241, Reducer: 2" Spigot x 1/2" Slip (for Low Flow Circ. Models) 6540-085, Elbow: 1/2" Spigot x 3/4" Barb (for Low Flow Circ.Models)   J-300 Series Wall Suction (2002-2003) 6540-113, Filter: Spa Drain Cover   J-300 Filter Fill Fitting 6540-329, Filter: Fill Fitting (Reduces Air Locks During Refills). J-LX, J-500, J-400 (2006+) Wall Suction Fitting 6540-564, Grate: Suction 6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw, Included) 6540-620, O-Ring: Compression, 2"  6540-619, Washer: Self Levelling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-LX, J-500, J-400 (2006+) Skimmer/Filter Wall Fittings 6540-126, Fitting: Wall With High Flow Strainer 2011 (for Circulation Pump) 6540-753, Fitting: Wall w/o Strainer (for Jet Pump 1) 6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.) 6540-791, Nut: 2" Suction Fittings (J-400 Series) J-400 Filter Fill Fitting 6540-329, Filter: Fill Fitting (Reduces Air Locks During Fill u

3/4" Internal Drain,  ?Can be used on any 3/4" internal drain line J-LX/J-500/J-400/J-300 Series & 2020+ J-200 Series (Standard Drain) 6540-039, Cap: Spa Drain with Gasket, 3/4" FHTAlso compatible with 2012+ J-245, 2017+ J-215/225 and 2015+ J-115/J-125/J135/J-145 2540-303, Valve: Spa Drain (JWB# R745000) 2540-250, Nut to hold drain valve in place on cabinet 2000-035, Fitting (Not Shown): Spa Drain For Older Spas (JWB# H999000) J-400 Series (2012+ Quick-Drain Kit) 6472-246, Drain Hose: Clear, 1-1/2" x 10'; Note: Sold by The Foot 6560-470, Cable Tie: 11" 6540-438, Fitting: Drain Barb 1-1/2"   J-400 Series Quick Drain (2013-2015) 2540-030, 1" adaptor: spigot x insert 2540-740, Clear 1" hose (sold by the foot) (recommend length 3 feet) 2540-005, 35mm clamp *Special Order - please expect additional delays 6540-170, Reducer: 1-1/2" spigot to 1" slip 6540-509, EDPM O-ring (2.35 inner diameter) 6540-597, Quick-Drain: Assembly with Check Valve (Complete), 1-1/2" Slip 6540-016, 3/4" Slip x Slip coupler PFT003, Tee: 1" slip x 1" slip x 3/8" barb

J-280 Models (2007+) 2540-239, T-Valve: Cap And Knob 2540-274, T-Valve: Knob 2540-273, T-Valve: Cap 6541-241, O-Ring: Stem 6541-240, O-Ring: Body 6541-242, Gate Valve (T-Valve) 2540-275, Fitting: Wall T-Valve (6541-238 Nut Included) 6541-238, Nut: Diverter 6541-236, Body Assembly: T-Valve (Includes one each of items 4 through 6 above) J-210 (2005+) A 6541-800, Jet Face: Divert-A-Jet (Graphite Color for 2012+ J-210 Models) B 6540-800, Jet Face: Divert-A-Jet (Gray 2011 And Older Models) *Special Order 6540-797, Wall Fitting: Divert-A-Jet 6540-511, O-Ring: Divert-A-Jet 6540-798, Nut: Divert-A-Jet 6540-796, Jet Back: Divert-A-Jet

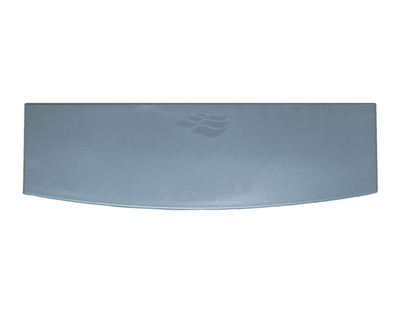

Waterfall Returns J-LX, J-500, J-300, J-200, J-100 Series 6540-979, Drain: Gravity Drain with Cover 1-1/32"? 6540-682, O-Ring, 1.22" ID X 1 0.158" C/S (2 Req'd.) 6540-685, Nut, Accu- Pressure Jet Waterfalls (J-200/J-100 Series) 6540-925, Cover: Waterfall Gray (Plastic) 6000-530, Cover: Waterfall (Stainless Steel) 6540-921, Fill Spout: Waterfall (Clear Plastic) 6541-285, Gasket: Waterfall 6570-121, Washer: Split Lock, 5/16" Stainless Steel (2 Req'd.) 6570-120, Bolt: Hex 1/4-20 x 1", Stainless Steel (2 Req'd.) 2540-004, Adapter: 3/4" Slip x FPT 6540-262, Adapter: 3/4" Spigot x 3/4" Barb

Air control valves are available for sale for the J-400 Series by Jacuzzi® Hot Tub. The air control valve is suitable for all hot tub models, but the part number will change depending on the model: individual air control components and their specifications are listed below: J-400 Air Components (2006+) Air Control Valve (All J-435, J-445, J-475, J-485, & 2020+ J-425, J-495) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control  Air Control Valve (All other J-400 Models) 20101-001, Knob: Air Valve 6540-377, Control: Air Body And Stem 6540-522, O-Ring: EPDM, 1.64" ID x 0.163" 6540-375, Manifold: Air Control Jacket 6540-376, Nut: Air Control 6000-179, Knob Stem 6000-016, Cup (Long) 6000-029, O-Ring  Filter/Skimmer Air Bleed Line 20216-001, Check Valve: 3/4" Air 6540-024, Adapter: 1/2" Spigot x 3/8" Barb 6570-491, Clamp: Metal Hose (Black) IX Jet Air Bleed Check Valve 20216-001, Check Valve: 3/4" Air 6540-065, Adapter: 1" Spigot x 3/4" Barb 6570-033, Clamp: 27mm J-400 Air Bleed Line (2009+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray J-500 Series Air Components (2015+) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control J-500 Air Bleed Line Fitting (2015+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray

J-200 Series Air Components (2005+) Compatible Models: J-275, J-245, J-235, J-210 (2012+) J-270, J-280 (2007+) J-230 (2008+) J-225, J-215 (2017+) 2540-281, Control: Air with Knob 6541-284, Manifold: Air Control Jacket 6541-282, Nut: Air Control (Not Shown) 6541-283, Gasket: Air Control (Not Shown)

Arctic Spa Notched Black Diverter Handle

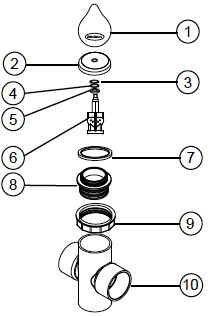

Sundance Diverter Valve Assembly Compatibility: 2007-2016 880 Series 2012-2016 Aspen 2011-2018 Select Series   6540-533, Knob (gray) 6541-377, Cap (gray) 6540-868, O-ring stem 6540-359, O-ring stem (discontinued) 6570-248, Washer.  (discontinued) 6540-966, Gate 6540-865, O-ring: T valve EP70 2.55 ID WHT 6541-969, Wall fitting (gray) 6540-968, Nut 6540-967, Valve Body

J-LX & J-LXL Series (2011+) 2540-533, Knob: T-Valve JHT, 2007 6541-359, Knob: Side Valve, 2011 6540-729, Cap: T-Valve (Oval) 6540-876, Cap: T-Valve (Phoenix) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D. 6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 (6540- 550 O-Ring Purchased Separately) 6541-969, Fitting: Wall Diverter 6540-511, O-Ring: 2.85" I.D. x 0.21" (2 Required) 6540-968, Nut: Diverter 6541-358, Body: Side
