Air Components: J-400 and J-500 Series

$5.27

Model

20101-001 6540-377 6540-376 6000-179 6000-016 6000-029 6540-024 6570-491 6540-252 6541-263
Thumbnail for Air Components: J-400 Series - Hot Tub Store
Air Components: J-400 Series - Hot Tub Store

Air Components: J-400 and J-500 Series

$5.27

Model

20101-001 6540-377 6540-376 6000-179 6000-016 6000-029 6540-024 6570-491 6540-252 6541-263
Free Shipping on orders above $49* Fast delivery from Ontario, Canada Easy returns
0 watching this item.

Most orders ships Next Day with FEDEX
Excludes COVERS & PARTS
Description Reviews

Air control valves are available for sale for the J-400 Series by Jacuzzi® Hot Tub. The air control valve is suitable for all hot tub models, but the part number will change depending on the model: individual air control components and their specifications are listed below:

J-400 Air Components (2006+)

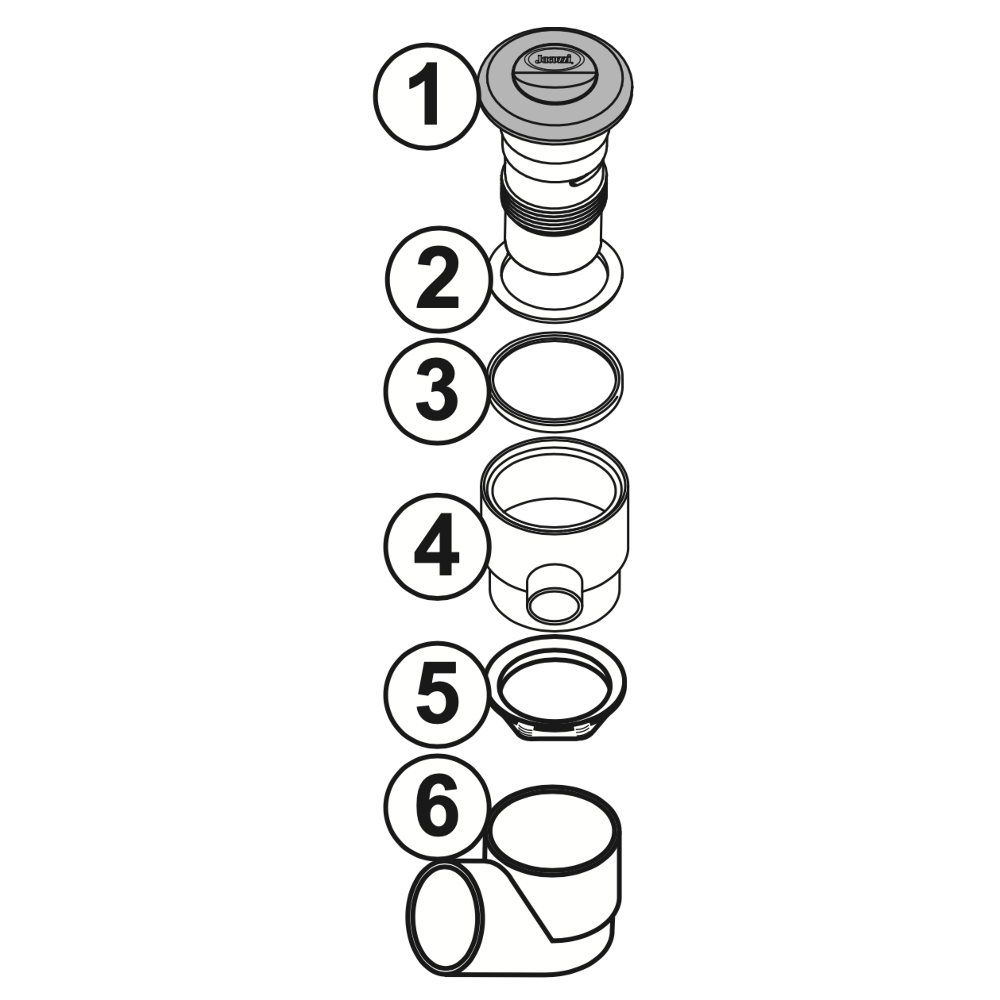

Air Control Valve (All J-435, J-445, J-475, J-485, & 2020+ J-425, J-495)

  1. 6541-142, Control: Air Toggle Switch
  2. 6541-143, Gasket: Toggle Outer Shell
  3. 6541-144, O-Ring: Toggle Inner Shell
  4. 6540-375, Manifold: Air Control Jacket
  5. 6540-911, Nut: Push Button Air Control
  6. 6540-910, Elbow: Push Button Air Control

Air Control Valve (All other J-400 Models)

  1. 20101-001, Knob: Air Valve
  2. 6540-377, Control: Air Body And Stem
  3. 6540-522, O-Ring: EPDM, 1.64" ID x 0.163"
  4. 6540-375, Manifold: Air Control Jacket
  5. 6540-376, Nut: Air Control
  6. 6000-179, Knob Stem
  7. 6000-016, Cup (Long)
  8. 6000-029, O-Ring

 Filter/Skimmer Air Bleed Line

  1. 20216-001, Check Valve: 3/4" Air
  2. 6540-024, Adapter: 1/2" Spigot x 3/8" Barb
  3. 6570-491, Clamp: Metal Hose (Black)

IX Jet Air Bleed Check Valve

  1. 20216-001, Check Valve: 3/4" Air
  2. 6540-065, Adapter: 1" Spigot x 3/4" Barb
  3. 6570-033, Clamp: 27mm

J-400 Air Bleed Line (2009+)

  1. 6540-252, Nut: Air Injector
  2. 6540-228, O-Ring: EPDM 0.662" ID x 0.210"
  3. 6541-263, Injector: Air PVC Gray

J-500 Series Air Components (2015+)

  1. 6541-142, Control: Air Toggle Switch
  2. 6541-143, Gasket: Toggle Outer Shell
  3. 6541-144, O-Ring: Toggle Inner Shell
  4. 6540-375, Manifold: Air Control Jacket
  5. 6540-911, Nut: Push Button Air Control
  6. 6540-910, Elbow: Push Button Air Control

J-500 Air Bleed Line Fitting (2015+)

  1. 6540-252, Nut: Air Injector
  2. 6540-228, O-Ring: EPDM 0.662" ID x 0.210"
  3. 6541-263, Injector: Air PVC Gray
