Jacuzzi Hot Tub Parts

The CLEARRAY® system uses UV-C technology to neutralize waterborne pathogens, rendering them useless. CLEARRAY® will also help reduce the amount of sanitizer you use in your hot tub, providing you with clean, fresh clear water. For the cleanest, softest water possible. No more drying out, no more red-eye.  The CLEARRAY® bulb needs to be replaced once a year. Detailed instructions on replacing your ClearRay bulb can be found here.   Replacement recommended every 12 months.

J-LX & J-LXL Series (2011+) Assembly Used on 2020+ J-425 & J-495, 2019+ J-485 & J-475 and 10/2017+ J-445 & J-435 6540-439, Knob: Diverter J-445, 2017 6540-455 Nut: Diverter J-400 (Grey) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D. 6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 (6540- 550 O-Ring Purchased Separately) 6541-014, Fitting: Wall T-Valve J-400 (Clear) 6560-320, Light ring: Diverter Top HT This item is not stocked and made to order. Final sale (not eligible for a refund). 6560-312, Nut: J400 (Clear) 6540-560 (2/16/18+), Body: T-Valve 2018  Assembly Used on All other 2016+ J-400 Models 2540-533, Knob: Diverter (2007+ J-400/J-300) 20090-001, Knob: Diverter (2006 J-400 Series) 6540-729, Cap: Diverter (All 2002+ Models) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D.  6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967

J-LX/J-LXL/J-500/J-400/J-300/J-200/J-100 North America 60Hz Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)   Compatible Pumps (LX Version; Not Emerson) 6500-352S 6500-365S 6500-367S 6500-363S 6500-845S 6500-090S 6500-357S   6500-232 Union Assembly, straight (o-ring included) 6500-037 Union Assembly, 45 degree (o-ring included) 6000-645 Union o-ring 6500-601 Screw, Self-Tapping (1 ea) 6500-602 Drain Plug 6500-603 Drain Plug O-Ring 6540-171 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (replaced 6540-030) 6540-263 O-Ring, 0.434"ID x 0.682" OD x 0.125"  6500-604 Housing, Front (Volute) 56FR 6500-605 Housing O-Ring 6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 6500-281 Seal-Stationary ASM (PS200) 6500-606 Housing Rear 56FR 6500-613 Run Capacitor 2.5HP (for 1 & 2 speed LX motors ONLY)

J-300 Models 2020+ 6541-344, Knob: Diverter, J-300 2020 6540-434, Nut: Diverter HT(Discontinued) Replaced by 6540-455 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D. 6540-550, O-Ring: Diverter Gate, 2.175 I.D.  6540-568, Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560, Body: T-Valve 2018  Assembly Used on All other 2016+ J-300 Models 2540-533, Knob: Diverter (2007+ J-400/J-300) 20090-001, Knob: Diverter (2006 J-400 Series) 6540-729, Cap: Diverter (All 2002+ Models) 6540-865, O-Ring: Diverter Cap 6540-868, O-Ring: Diverter Stem, 0.591" I.D.  6540-550, O-Ring: Diverter Gate, 2.175 I.D. 6540-568 (2/16/18+): Gate: T-Valve, 2018 6541-969, Fitting: Wall Diverter 6540-968, Nut: Diverter 6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967

J-300 Series 2016+ 6560-905, 2016+ Waterfall (12VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket purchased separately below. 6541-068, 2014+ Waterfall Cover; 2540-906, Gasket: Waterfall 2560-904, Nut: Waterfall 2014/2015 6560-125 2014-2015 Waterfall (15VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket Purchased Separately Below. 6541-068, 2014+ Waterfall Cover; 2540-906, Gasket: Waterfall 2560-904, Nut: Waterfall 2007-2012 2540-904, Waterfall: Complete Kit (no longer available) 2540-905, Waterfall cover (no longer available) 2540-906, Waterfall gasket 2560-904, Waterfall nut

Waterfall Valve (For J-475, J-485, 2019+ J-435, J-445 & 2020+ J-425, J-495 models) 6540-695, Knob: Waterfall J-475/J-485 6541-081, Valve: Waterfall, 3-way 1" without knob IX Jet Valve (Pre-2019 J-445 & J-435 models**) 6540-451, Knob: Waterfall J-445 20241-001, Valve: 90°, 2-Way, 1-1/2" Slip Waterfall Valve (Pre-2019 J-445 & J-435 models**) 6540-451, Knob: Waterfall J-445, 2017 6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (Includes item 2a)  (includes  6541-069, T Gasket)2a. 6570-462 Replacement C-Clip: Waterfall Valve 6000-506, O-Ring for 3-Way Waterfall Valve 6541-069, "T" Gasket for 3-Way Waterfall Valve 20172-001, Valve: Plumbing 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately Waterfall (for All J-485, J-475, J-445 & J-435 models and 2020+ J-425, J-495 models) 6560-119, Cover: 1 Waterfall LED Light J-400, 2017 6473-310, Base; ABS Waterfall Assembly (Complete) Note: Includes Body, Barb 2 Fittings, compensating washers, and Mounting Nuts. IX Jet Valve (2006+ J-400 Series EXCEPT for J-435 & J-445) 20150-001, Knob: 2006+ 1 J-400 Waterfall Valves & Waterfalls (J-400) Waterfall Valve (2006-2019 J-400 Series*) 20241-001, Valve: 90°, 2-Way, 1-1/2" Slip Waterfall Valve (2006-2019 J-400 Series*) 20150-001, Knob: 2006+ J-400 Waterfall 6000-298, Valve: Replacement 3-Way Waterfall Valve Stem Assembly (includes  6541-069, T Gasket) 6000-506, O-Ring for 3-Way Waterfall Valve 5  6541-069, "T" Gasket for 3-Way Waterfall Valve 20172-001, Valve: 90o, 3-Way, 1-1/2" Slip (Complete); Note: Knob Purchased Separately. Waterfall (2006-2019 J-400 Series*) 20095-001, Cover: Waterfall J-400 Series 6541-063, Fill Spout: Waterfall "Niagra" J-400 Series (Includes 2 Nuts And 2 Self-Leveling Washers) 6540-935, Gasket: 1.25" ID "Niagra" J-400 (2 Req'd.)

Diverter Valve Knob 2540-533, Knob: T-Valve Compatibility: J-LX/J-LXL: 2007+ J-400: 2007+ (excluding J-485/J-475 2019+, J-445/J-435 Oct 2017+) J-300: 2007+  6540-728, Knob: T-Valve Compatibility: J-300: 2002-2006

Please note: Covermate III parts may not be in stock at time of order Compatibility: Covermate III for J435, J445, J465, J470, J475, J480, J485, J495 100002 - 1x Foam Grip100003 - Coupler100028 - Right Support Arm 100029 - Left Support Arm 101632 - Replacement Shock (Locking)101520 - Replacement Shock (Non-Locking) 100280 - 38" Extender Pivot Arm Find the installation instructions for your Covermate III here.

Please note: These are the Emerson-made version of these pumps. The LX-made pumps are more common (click here for the LX-made versions). You can replace the LX-made pump with an Emerson pump. However, pump parts are not interchangeable. The label will indicate if it is LX or Emerson.     Universal Mounts are available for the J-LX, J-500, J-400, J-300, and J-100 Series hot tubs. Find the specifical hot tub parts and their specifications below:    J-LX/J-LXL/J-500/J-400/J-300/J-100 North America 60Hz  6500-352S Universal Bracket Mount, 1-Speed 6500-365 Universal Bracket Mount, 1-Speed 6500-367 Universal Bracket Mount, 2-Speed 6500-363 Universal Bracket Mount, 1-Speed   Pump Parts Union Assembly, Straight (O- 6500-232 Ring Included) Union Assembly, 45° 6500-037 (O-Ring Included) Union O-Ring (1 ea.) 6000-645 Drain Plug with O-Ring (1 ea.) 6500-547 Screw, Self-Tapping (1 ea.) 6500-548 Housing, Front (Volute) 6500-546 Housing O-Ring 6500-545 Impeller, 2.5hp 6500-549 Seal-Plate, rotation 6500-544 Seal, ceramic, Stationary for North American 60Hz Pumps 6500-543 Rear housing 6500-541 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-171 **Requires new o-ring 6540-263 O-Ring, 0.434" ID x 0.682" OD x 0.125" 6540-263 Run Capacitor 2.5hp (1&2 Speed Emerson Motors Only) 6000-163

Replacement quartz tube for all years of Jacuzzi® Hot Tubs & Sundance® Spas

6570-119, Grill: Left Lift Hinge Kit (For 6570-381 Grill) 6570-071, Grill: Right Lift Hinge Kit (For 6570-381 Grill) 6570-061, Magnetic Latch Plate (For 6570-381)  6570-116, Strike plate for 6570-061 6570-122, Clip: (Two Required for 6570-381 Grill) 6570-220, Screw 8-32 x 3/8" PHP Nylon (Two Req'd for 6570-061 Magnetic Latch)  6570-219, Nut: 8-32 x 3/8" Hex Nylon (Two Req'd for 6570-061 Magnetic Latch)  6570-381, Grill: Jacuzzi 2011 .This Product is a Special Order and is not in stock. Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled. Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information. If a special order item is ordered with other non-special order items, it will delay the entire order.

6570-250, Catch: Shield attachment on spa shell J-495, J-425, J-415 2012+ All J-400 & J-500 series hot tubs 2013+ All J-300 & J-200 series hot tubs 2006+     6570-251, Hook: Shield attachment on skimmer shield All J-300 & J-200 series hot tubs 2006+     6570-397, Hook: Shield Attachment J-495/J-425/J-415 2012+ All J-500 & J-400 series hot tubs 2012+

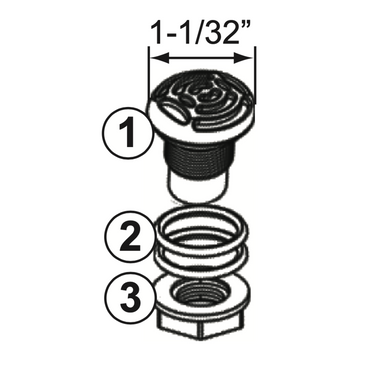

Waterfall Returns J-LX, J-500, J-300, J-200, J-100 Series 6540-979, Drain: Gravity Drain with Cover 1-1/32"? 6540-682, O-Ring, 1.22" ID X 1 0.158" C/S (2 Req'd.) 6540-685, Nut, Accu- Pressure Jet Waterfalls (J-200/J-100 Series) 6540-925, Cover: Waterfall Gray (Plastic) 6000-530, Cover: Waterfall (Stainless Steel) 6540-921, Fill Spout: Waterfall (Clear Plastic) 6541-285, Gasket: Waterfall 6570-121, Washer: Split Lock, 5/16" Stainless Steel (2 Req'd.) 6570-120, Bolt: Hex 1/4-20 x 1", Stainless Steel (2 Req'd.) 2540-004, Adapter: 3/4" Slip x FPT 6540-262, Adapter: 3/4" Spigot x 3/4" Barb

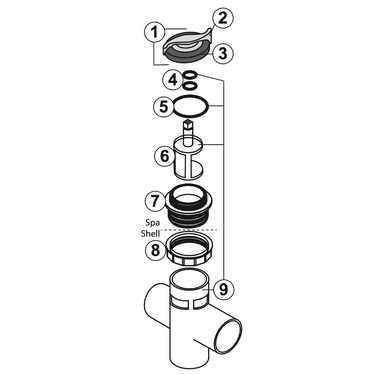

J-280 Models (2007+) 2540-239, T-Valve: Cap And Knob 2540-274, T-Valve: Knob 2540-273, T-Valve: Cap 6541-241, O-Ring: Stem 6541-240, O-Ring: Body 6541-242, Gate Valve (T-Valve) 2540-275, Fitting: Wall T-Valve (6541-238 Nut Included) 6541-238, Nut: Diverter 6541-236, Body Assembly: T-Valve (Includes one each of items 4 through 6 above) J-210 (2005+) A 6541-800, Jet Face: Divert-A-Jet (Graphite Color for 2012+ J-210 Models) B 6540-800, Jet Face: Divert-A-Jet (Gray 2011 And Older Models) *Special Order 6540-797, Wall Fitting: Divert-A-Jet 6540-511, O-Ring: Divert-A-Jet 6540-798, Nut: Divert-A-Jet 6540-796, Jet Back: Divert-A-Jet

*Parts on this page may not be in stock and may be delayed for shipment J-300/J-200 Fixed Bracket 48 Frame (60Hz) Pump Replacement Parts (Prior to June 2009) 6000-031, 2" Split nut6500-232, 2" Straight Union Assembly (includes 2" O-ring)6500-037, 2" 45° Union Assembly (includes 2" O-ring)6500-288, Front Housing for 2.5 hp (all years) and 2.0 hp (July 2003 - December 2009)6500-287, Font Housing for 2.0 hp (1999-June 2003) No longer available6540-171, 1/4-18 NSPM threadx 3/8"Barb, Stainless Steel Adapter (replaces 6540-030) Requires 1x 6540-171 O-ring (below)6540-263, O-ring (0.434" IDx 0.682" OD x 0.125" )6570-070, Self-tapping screw6500-255, Drain plug (1/4" NPSM)6500-256, Drain plug o-ring (0.47" ID x 0.103" )6500-290, Front Housing O-Ring6500-281, Seal (2.0hp 0.625" Shaft, PS200, 2002-June 2006) 6500-805, Seal (2.5hp 0.75" Shaft, PS201, all years) 6500-286, Rear bracket (2.0hp 1999-June 2003) No longer available6500-311, Rear bracket (2.0hp July 2003+, 2.5hp all years)Impellers6500-295, Impeller for 2.5hp (4.129" Diameter)6500-296, Impeller for 2.0hp (3.875" Diameter)6500-309, Impeller for 2.0hp (5.025" Diameter)6500-308, Impeller for 1.5hp (3.65" Diameter) No longer available  Compatibility: 6500-707 (2-Speed), 6500-753 (2-Speed), 6500-754 (2-Speed), 6500-758 (2-Speed), 6500-759 (2-Speed), 6500-761 (2-Speed), 6500-769 (1-Speed), 6500-763 (1-Speed)
