Fittings (7)

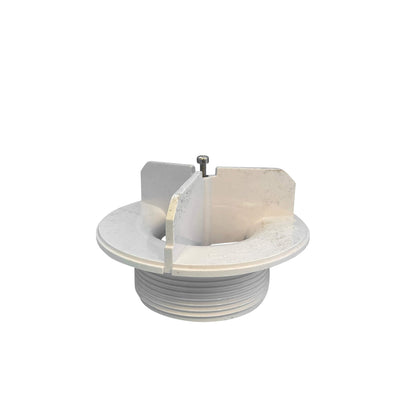

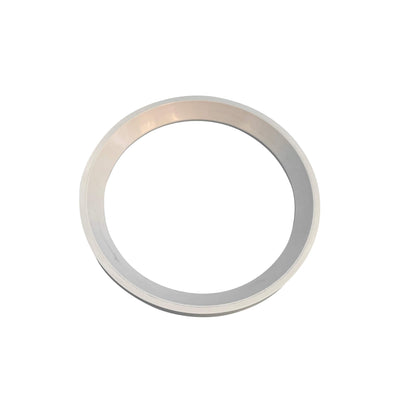

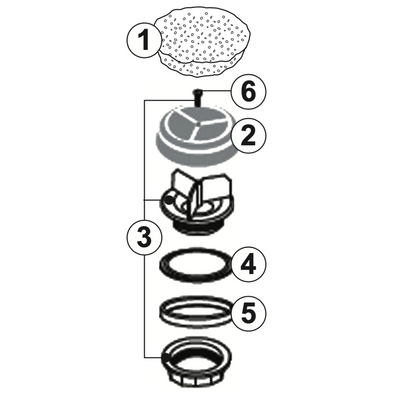

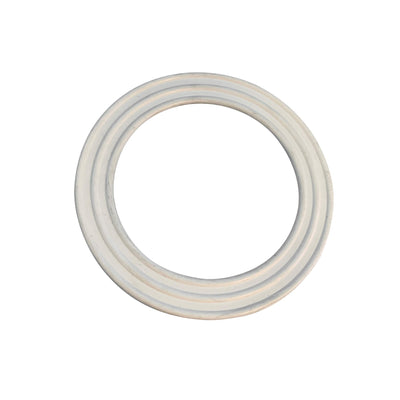

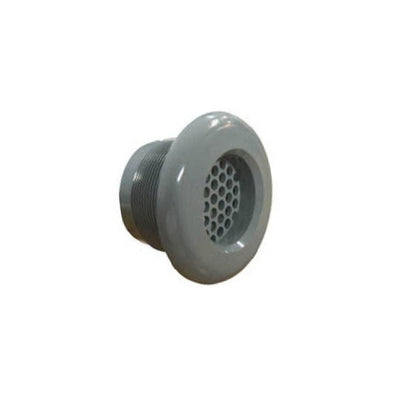

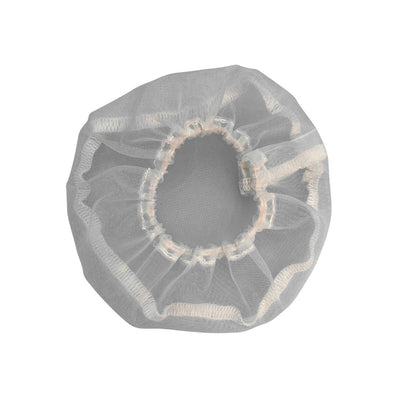

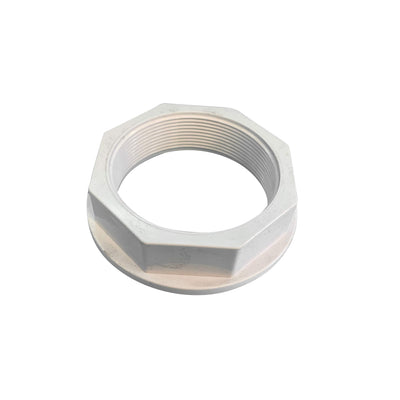

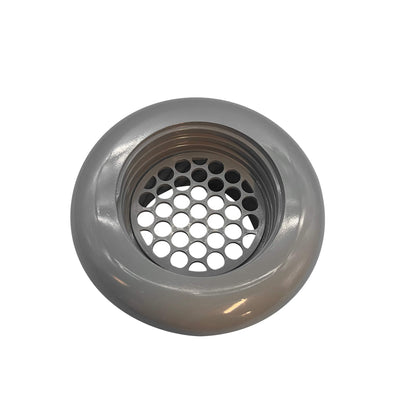

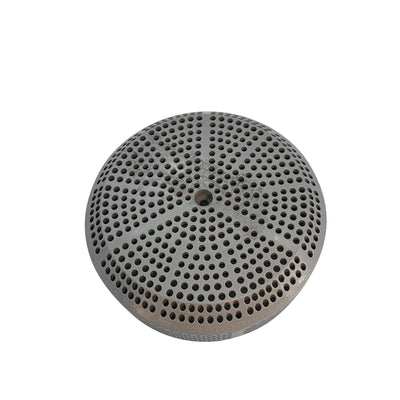

J-300 Wall Suction Fitting (2004+) 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008 6540-564, Grate: Suction 6540-565, Fitting: Wall  Suction (Nut and 6000-564 Screw Included) 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring) 6540-619, Washer: Self Levelling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-300 Series Skimmer/ Filter Wall Fitting (2002+) 6540-126, Fitting: Wall with High Flow Strainer (for High Flow Circ. Models); OR 6540-751, Fitting: Wall with Strainer (for Low Flow Circ. Models) 6540-753, Fitting: Wall w/o Strainer (Jet Pump 1) 6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.) 6540-791, Nut: 2" 6540-241, Reducer: 2" Spigot x 1/2" Slip (for Low Flow Circ. Models) 6540-085, Elbow: 1/2" Spigot x 3/4" Barb (for Low Flow Circ.Models)   J-300 Series Wall Suction (2002-2003) 6540-113, Filter: Spa Drain Cover   J-300 Filter Fill Fitting 6540-329, Filter: Fill Fitting (Reduces Air Locks During Refills). J-LX, J-500, J-400 (2006+) Wall Suction Fitting 6540-564, Grate: Suction 6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw, Included) 6540-620, O-Ring: Compression, 2"  6540-619, Washer: Self Levelling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-LX, J-500, J-400 (2006+) Skimmer/Filter Wall Fittings 6540-126, Fitting: Wall With High Flow Strainer 2011 (for Circulation Pump) 6540-753, Fitting: Wall w/o Strainer (for Jet Pump 1) 6540-984, O-Ring: 2.85 ID x 0.21" C/S Double EPDM (2 Req'd.) 6540-791, Nut: 2" Suction Fittings (J-400 Series) J-400 Filter Fill Fitting 6540-329, Filter: Fill Fitting (Reduces Air Locks During Fill u

Tees Tee: Slip 3/4" x 3/4" x 3/4" -  6540-096 /  4-60-WW413-1800 Tee: Barb 3/8" x 3/8" x 3/8" - 6540-097 Tee: Barb 3/4" x 3/4" x 3/4" - 6540-093 Tee: Slip 1" x Slip 1" x Barb 3/8" - PFT0003 Tee: Slip  2" x 2" x 1" - 2540-130 : This Product is a Special Order and is not in stock. Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled. Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information. If a special order item is ordered with other non-special order items, it will delay the entire order.   Elbows Elbow (90 degree): 3/4" S x 3/4" S - 6540-046 Elbow (90 degree): 1-1/2" S x 1-1/2" S - 6540-090 Elbow (45 degree): 1-1/2" S x 1-1/2" S - 6540-160   Couplers Coupling: 3/4" S x 3/4" S - 6540-016 Coupling: 1-1/2" S x 1-1/2" S - 4-60-0449 Coupling: 2" S x 2" S - 4-60-0451     Unions/Tailpiece Union: 1.5" Straight with nut - 6540-196 (comes with 1.5" o-ring) Union Nut: 2.5" - Waterway 415-6000 (nut only) Sweep Union: 2" Slip, 90°F sweep with flat gasket/o-ring Waterway R5047315  This Product is a Special Order and is not in stock. Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled.Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information.If a special order item is ordered with other non-special order items, it will delay the entire order.     Barbed Adapters Adapter: 3/4" Barb x 3/4" Barb - 6541-075  Adapter: 1" Barb x 3/4" Spigot (JWB# R397000) - 2540-030   Caps 1.5" cap - 4-60-1368 2" cap - 4-60-1369     Plugs 2" Spigot - 6540-270   Misc Check Valve OZ 1/4" Barbed - 20008 Check Valve, Ozone, Green/Nat 1/4"x3/8" -  020087

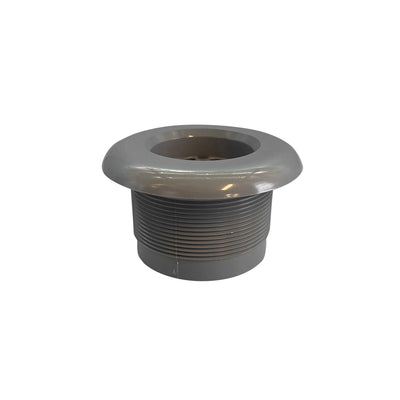

J-200 Wall Suction Fitting (2005+) 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008 6540-564, Grate: Suction 6540-565, Fitting: Wall  Suction (Nut and 6000-564 Screw Included) 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring) 6540-619, Washer: Self Leveling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-200 Filter Wall Fitting (2007+ J-280, J-270, J-230 Models) 6540-102, Wall Fitting, 2" (Gray) 6540-511, O-Ring: EDPM, 2.85" ID x 0.210" 6540-791, Nut, 2"

These fittings are designed to fix leaky glue joints between tees, slice valves, or elbows and Schedule 40 PVC Pipe. Repair fittings glue over the outer diameter of leaking fitting to bypass the leak connection. 6000-355, Repair Fitting (1.5")6000-356, Repair Fitting (2") These fittings are designed to permit the replacement of a leaking slice valve without replacing the mating fittings. They glue directly into the mating fittings after the valve is cut out (one side of the fitting fits into Schedule 40 pipe). A new slice valve can be glued onto the other side of the fitting (which is the same diameter as rigid Schedule 40 pipe). 6000-357, Repair Fitting (1.5")6000-358, Repair Fitting (2")   Repair couplings join two Schedule 40 PVC pipes together in locations where there is insufficient space for an outside fitting. 6000-350, Repair Coupling (1.5")6000-351, Repair Coupling (2")

Unions 2" Pump Union, 45 degree - 300604-20  Fittings 2" 90 degree Elbow, S x SP - 30409-020  Miscell. 2" Heater Tail Piece, with 1/8" FPT (used w/ the Gecko Micro Pack only) - 30020032

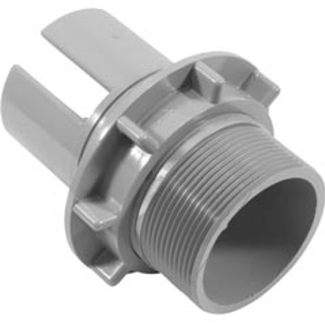

6540-142, Filter pipe with jam nut (gray)

30102306, 2" Slip connection black suction fitting (VGB Certified).
