Circulation Pump: Aqua-Flo – Jacuzzi J-LX & J-500 (2011–Present)

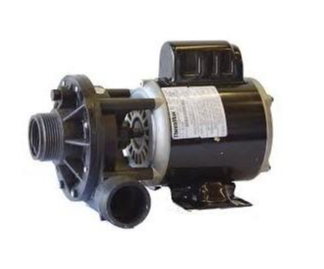

6000-907S – OEM Jacuzzi® Aqua-Flo Circulation Pump. Used in J-LX & J-500 Series, 240V, 60Hz, 3 O'clock orientation. Designed for high-flow circulation systems.

Compatibility:

• Jacuzzi® J-LX & J-XL Models (2011+), 240V, 60Hz, 3 O'clock Union
• Jacuzzi® J-500 Models (2015+), 240V, 60Hz, 3 O'clock Union
• Jacuzzi® J-400 Models (2006-5/4/11), 240V, 60Hz, 3 O'clock Union
• Jacuzzi® J-385, J-375, J-365, J-355, J-345, J-335 Models (2012+), 240V, 60Hz, 3 O'clock Union

Special Notes: 48 Frame, 1.5" Unions, 12" overall length. Includes capacitor 6000-194. Mounting hardware required: Insulator 6570-011, Nut 6570-126, Washer 6570-127.

North American 60Hz High-Flow Circulation Pumps

6000-907S – Aqua-Flo Pump (12")

Used in: All J-400 Models (2006–5/4/11)

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Req'd.)
• 6570-126 – Nut: Hex 5/16-18 (4 Req'd.)
• 6570-127 – Washer, Split-Lock 5/16 (4 Req'd.)
• 6000-194 – Capacitor
