Jet: IX Jet – Jacuzzi J-400 Series (2013–2015)

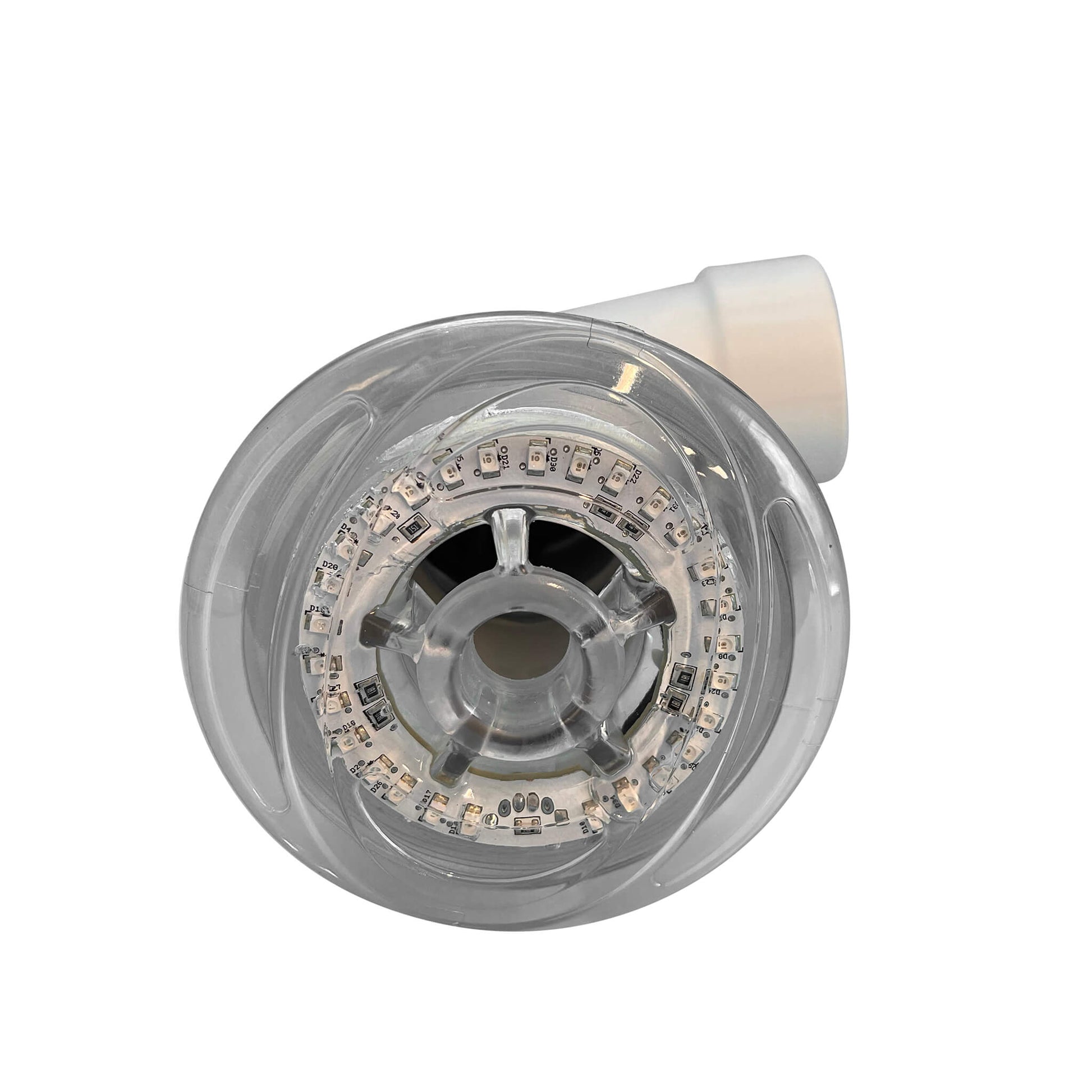

6560-103 – OEM Jacuzzi® IX Jet Face Assembly with multi-color LED light and mini-DIN connector, used in select Jacuzzi® J-400™ Series models manufactured from 2013–2015.

Compatible with the following Jacuzzi® models:

• Jacuzzi® J-445™, J-435™ (10/2017–2018)
• Jacuzzi® J-485™, J-475™, J-445™, J-435™ (2019+)
• Jacuzzi® J-470™, J-465™, J-425™ (2013–2014)
• Jacuzzi® J-465™ (2012)
• Jacuzzi® J-400™ Series (2006–2012)

	Part #	Description
1A	6560-970	Jet Face: Assembly IX Jet w/ Multi-Color LED Light And Mini-DIN Connector for 12V Balboa controllers ONLY. Not compatible with older systems
1B	6560-103	Jet Face: Assembly IX Jet w/Multi-Color LED Light And Mini-DIN Connector
2	6540-520	O-Ring: Double EDPM, 3.312" ID x 0.21" Ø (2 Req'd.)
3	6540-861	Nut: T-Valve
4	6540-443	Nut: Serviceable Light
4	6540-390	Pipe: Rigid PVC, 2" (Sold By The Foot)
5	20178-001	Venturi Tee: 1-1/2" Spigot x 2" Slip x 3/4" Barb
