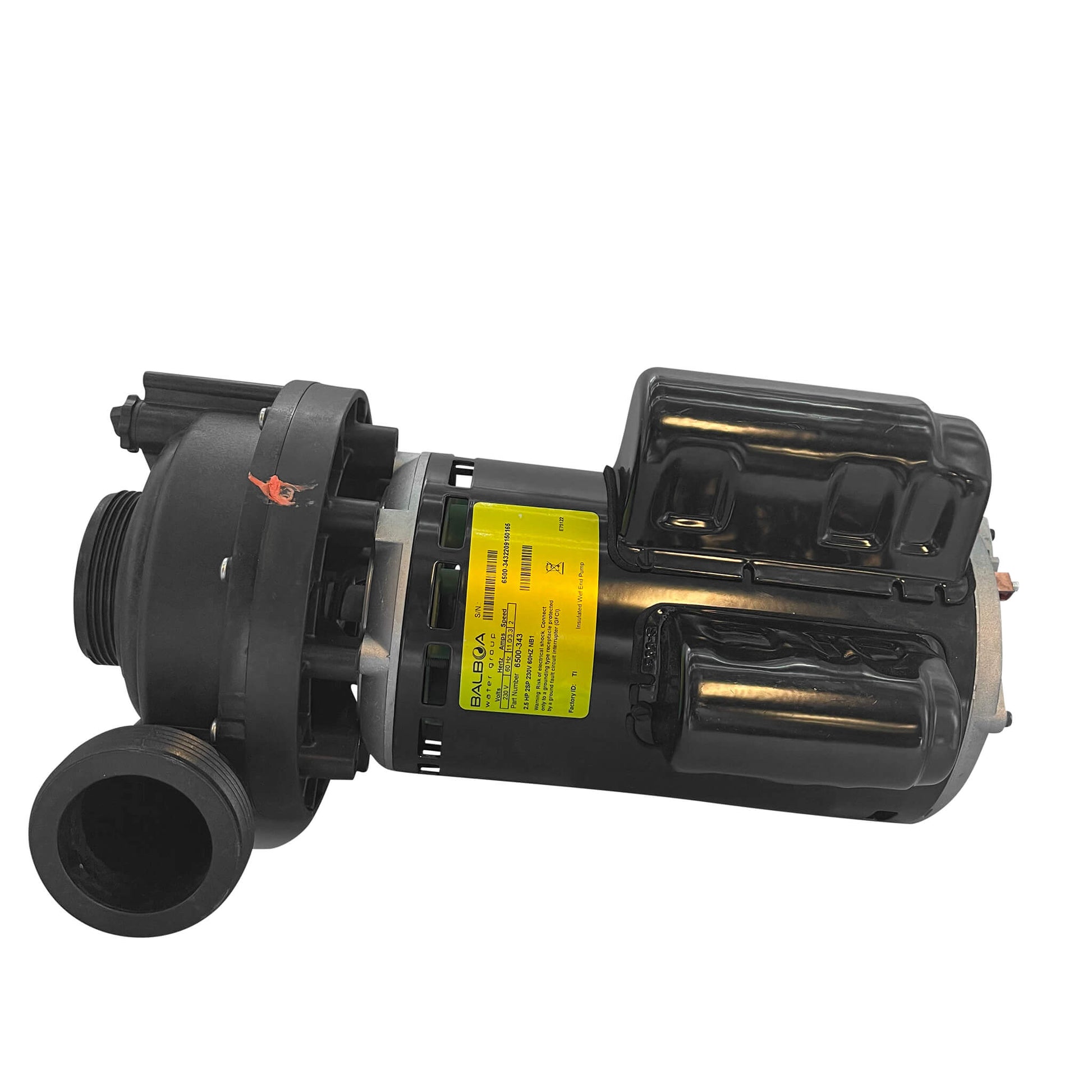

6500-343S – OEM Jacuzzi® 2-Speed Pump. Used in the Jacuzzi® J-300 Collection, 240VAC, 60Hz. Designed for high-flow systems and pump replacement.
Compatibility:
- Jacuzzi® J-495, J-480, J-470, J-465, J-425, J-415, J-385, J-375, J-365, J-355, J-345, J-335, J-325, J-315 (2002–2014, 240VAC, 60Hz)
- Position: 3 O’clock Union
Special Notes: Replaces older pump models. Requires a special mounting bracket (purchased separately). Compatible with 48 Frame configurations. Includes orientation info for 3 O’clock union placement.
48 Frame Pump Parts (6/2009+)
Compatible Universal Pumps:
- 6500-341S – Universal Bracket Mount, 1-Speed
- 6500-343S – Universal Bracket Mount, 2-Speed
- 6500-345S – Universal Bracket Mount, 2-Speed
- 6500-349 – Universal Bracket Mount, 1-Speed
| Item # | Part # | Description |
|---|---|---|
| 1 | 6000-031 | Nut: Split Replacement 2" |
| 2 | 6500-232** | Union: Assembly 2" (Straight) |
| 3 | 6500-037** | Union: Assembly 2" (45°) |
| 4 | 6000-645 or 6000-554** | O-Ring: 2" |
| 5a | 6540-171* | Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel |
| 5b | 6540-030 | Adapter: 1/4" MIPT x 3/8" Barb, Glass Filled Polypropylene - Noryl |
| 6 | 6540-263 | O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø |
| 7 | 6500-546 | Housing: Front |
| 8 | 6500-548 | Screw: Self-Tapping |
| 9 | 6500-547 | Plug: Drain And O-Ring |
| 10 | 6500-545 | O-Ring: Front Housing |
| 11a | 6500-549 | Impeller North America, 2.5hp |
| 11b | 6500-550 | Impeller North America, 2.0hp |
| 11c | 6500-551 | Impeller North America, 1.5hp |
| 12 | 6500-543 | Seal (Stationary) ASM-PS200 |
| 13 | 6500-544 | Seal (Rotating) ASM-PS200 |
| 14 | 6500-540 | Housing: Rear Bracket |
| 15A | 6500-449 | Start Capacitor, 240V (Not Shown) – For 6500-341/-343/-349 Pumps |
| 15B | 6500-448 | Start Capacitor, 120V (Not Shown) – Used For 6500-345 Pumps Only |
Note 1. Wet end parts listed above are for pumps manufactured 6/2009+. To visually identify these pumps, examine the rear housing bracket (14) for elongated hole "platforms" (See Details Above).
Note 2. All J-300/J-200 Series pump housings are universal and can be rotated to any configuration listed on pages 127, 128 & 129.
Note 3. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.
Note 4. See page 144 for replacement service pumps (head rotation may be necessary for installation).
Note 5. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.
