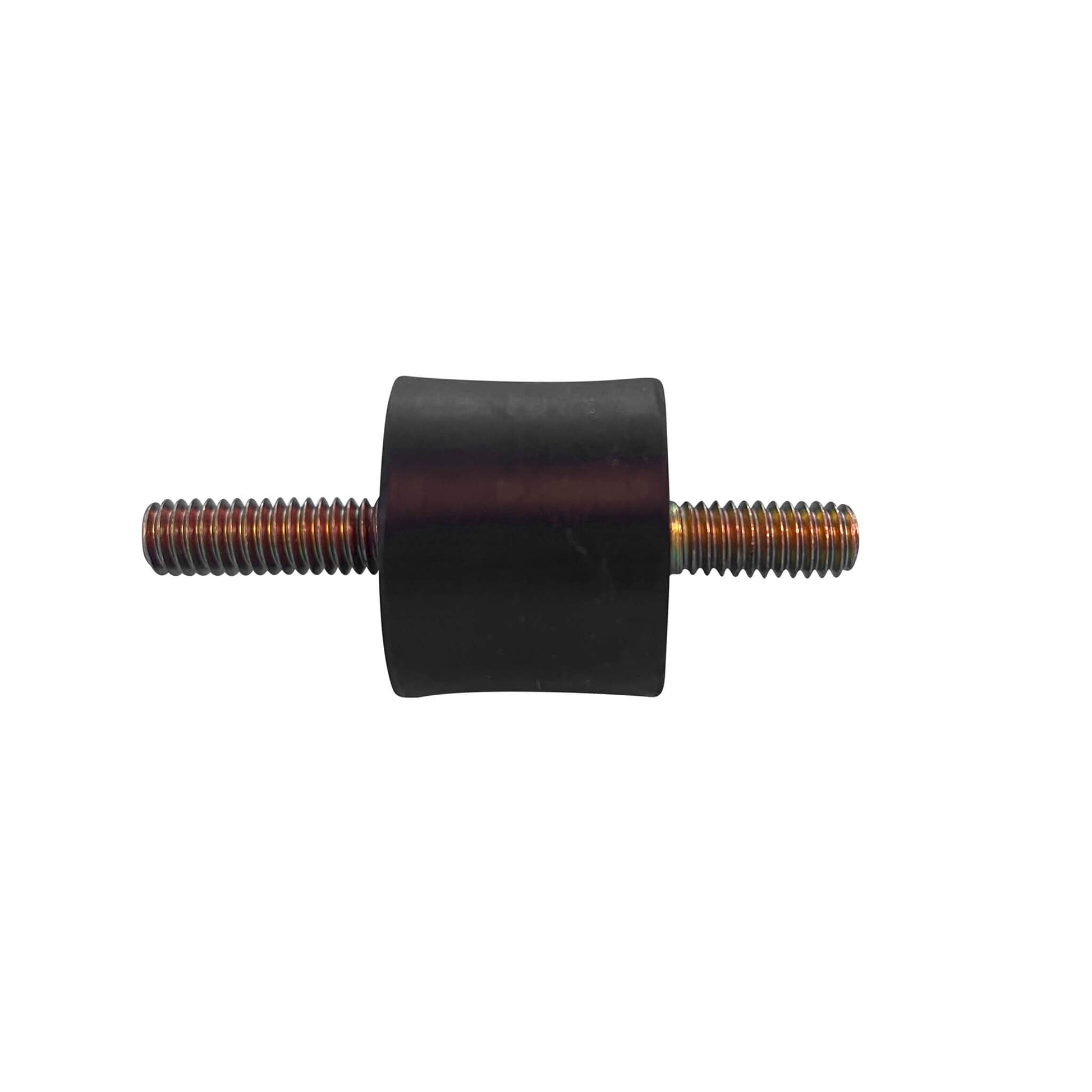

Pump Insulator: 1-1/4" Diameter x 1" Long – Jacuzzi J-Series (2007+)

Export 50Hz High-Flow Circulation Pumps

6500-067S – High Flow Circulation Pump

230V 50Hz, replaces 6500-920

Used in:

• All J-500 Models (2015+)
• All J-400 Models (11/5/2012+)
• All J-375, J-365, J-355 Models (11/5/2012+)
• All J-345, J-335 Models (11/5/2012–8/11/15)
• All J-LX & J-LXL Models (11/5/2012+)

Replacement Parts (LX Models Only):

• 6540-196 – Union: 1.5" Straight with Nut
• 6500-452 – Union: O-Ring
• 6000-118 – Capacitor

Mounting Hardware (All Models):

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Req'd.)
• 6570-126 – Nut: Hex 5/16-18 (4 Req'd.)
• 6570-127 – Washer: Split-Lock 5/16 (4 Req'd.)

North American & Export High-Flow Circulation Pumps

Circulation Pump Mounting Hardware (All Models):

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Req'd.)
• 6570-126 – Nut: Hex 5/16-18 (4 Req'd.)
• 6570-127 – Washer: Split-Lock 5/16 (4 Req'd.)

North American 60Hz High-Flow Circulation Pumps

6500-907S – LX Pump: 240V 60Hz, 48 Frame, 3'Oclock (1.5" Unions); 13.7" overall length

Used in:

• All J-LX & J-LXL Models (2011+)
• All J-500 Models (2015+)
• All J-400 Models (Except 1/26/12–10/1/13 J-415 Models)
• J-415 Models (10/2/2013+)
• All J-385, J-375, J-365, J-355 Models (2012+)
• All J-345, J-335 Models (2012–8/11/15)

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Required)
• 6570-126 – Nut: Hex 5/16-18 (4 Required)
• 6570-127 – Washer, Split-Lock 5/16 (4 Required)

6500-913 – Circulation Pump

Used in: All J-400 Models (Except 5/5/2011–1/25/2012 J-415 Models), J-415 Models (1/26/2012–10/1/2013)

• 6540-196 – Union: 1.5" Straight with Nut
• 6500-452 – Union: O-Ring
• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Required)
• 6570-126 – Nut: Hex 5/16-18 (4 Required)
• 6570-127 – Washer, Split-Lock 5/16 (4 Required)
• 6000-264 – Housing: O-Ring (Aqua-Flo Models Only)
• 6000-262 – Impeller (Aqua-Flo Models Only)

6000-907S – Aqua-Flo Pump (12")

Used in: All J-400 Models (2006–5/4/11)

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Req'd.)
• 6570-126 – Nut: Hex 5/16-18 (4 Req'd.)
• 6570-127 – Washer, Split-Lock 5/16 (4 Req'd.)
• 6000-194 – Capacitor

6500-905S – Circulation Pump

Used in: J-345, J-335 Models (8/12/15+)

• 6570-011 – Insulator: 1" x 1.5" Rubber (4 Req'd.)
• 6570-126 – Nut: Hex 5/16-18 (4 Req'd.)
• 6570-127 – Washer, Split-Lock 5/16 (4 Req'd.)

Pump Mounting Brackets (For Bracketless North American Jet Pumps)

Universal 56 Frame Pump Bracket Kit (2007+)

Universal 48 Frame Pump Bracket Kit (2007+)
