Description

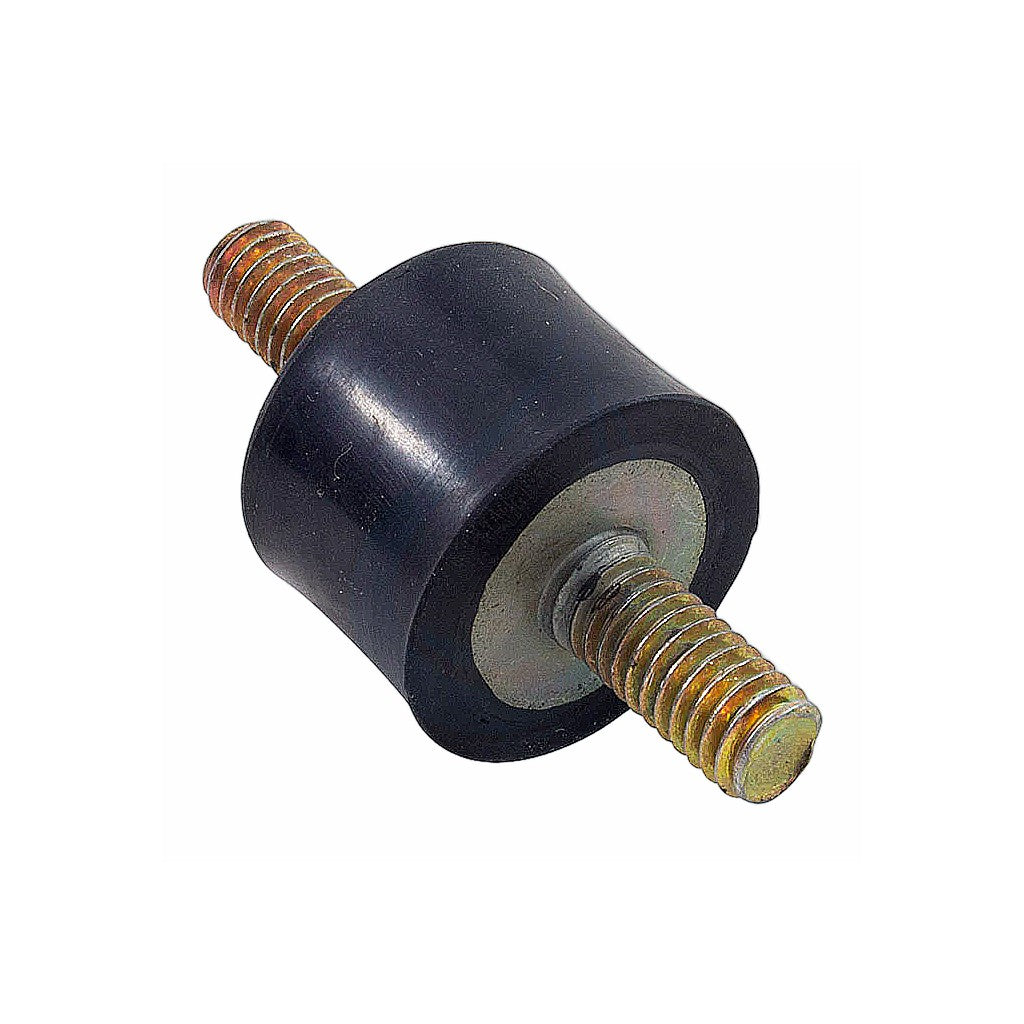

6570-023 – OEM Jacuzzi® Pump Insulator, 1" Diameter x 3/4" Long (Rubber). Used in Universal Frame Bracket Kits for bracketless North American jet pumps. Designed for pump mounting and vibration reduction.
Compatibility:
- Jacuzzi® Universal 56 Frame Pump Bracket Kit (2007+)
- Jacuzzi® Universal 48 Frame Pump Bracket Kit (2007+)
Special Notes: Fits both 56 Frame and 48 Frame pump bracket kits. Used for vibration isolation in pump installations.
AquaFlo 56 Frame Pumps (2006–4/2009)
AquaFlo 56 Frame Pump Parts (2006–4/2009)
Compatible Pumps (Discontinued):
- 6500-901 – 3:00 Rotation, 1-Speed
- 6500-902 – 9:00 Rotation, 1-Speed
| Item # | Part # | Description |
|---|---|---|
| 1 | 6000-031 | Replacement Split Nut 2" |
| 2 | 6500-232** | Union Assembly (Straight) |
| 3 | 6500-037** | Union Assembly (45°) |
| 4 | 6000-047 | Drain Plug |
| 5 | 6000-204 | Drain Plug: O-Ring |
| 6 | 6500-822 | Screw: Mach., 8-32 x 5/8 SS |
| 7 | 6500-829 | Housing Front (Volute) |
| 8 | 6000-154 | Housing O-Ring |
| 9 | 6500-825 | Wear Ring |
| 10 | 6500-823 | Impeller (USA/Canada) |
| 11 | 6500-447 | Seal: Assembly, PS200 (5/8") (USA/Canada) |
| 12 | 6500-828 | Housing Back: Aquaflo |
| 13 | 6570-126 | Nut |
| 14 | 6570-127 | Washer (Split Lock) |
| 15 | 6570-509 | Washer |
| 16 | 6570-023 | Motor Insulator (USA/Canada) |
| 17 | 6000-645 or 6000-554** | O-Ring, 2" Union |
** Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.
Pump Mounting Brackets (For Bracketless North American Jet Pumps)
Pump Mounting Brackets (For Bracketless North American Jet Pumps)
Universal 56 Frame Pump Bracket Kit (2007+)
| Item | Part # | Description |
|---|---|---|
| 1 | 6000-535 | Universal Mounting Bracket Assembly |
| 2 | 6570-025 | Bolt: 5/16-18 x 1-1/2" |
| 3 | 6570-509 | Flat Washer 5/16" |
| 4 | 6570-127 | Lock Washer 5/16" |
| 5 | 6500-837 | Bracket: 56 Frame, Half Band |
| 6 | 6500-838 | Bracket: 56 Frame, Half Band (Captive Nut) |
| 7 | 6500-834 | Base: Universal Cradle Bracket |
| 8 | 6570-126 | Nut, 5/16-18 Thread |
| 9 | 6570-127 | Washer, Split-Lock, 5/16" |
| 10 | 6570-509 | Washer, Flat 3/8" |
| 11A | 6570-202 | Pump Insulator: 1" Diameter x 3/8" Long (Rubber) |
| 11B | 6570-023 | Pump Insulator: 1" Diameter x 3/4" Long (Rubber) |
| 11C | 6570-011 | Pump Insulator: 1-1/4" Diameter x 1" Long (Rubber) |
| 11D | 6570-006 | Pump Insulator: 1-3/8" Dia. x 1-1/2" Long (Rubber) |
Universal 48 Frame Pump Bracket Kit (2007+)
| Item | Part # | Description |
|---|---|---|
| 1 | 6000-532 | Universal Mounting Bracket Assembly (Complete) |
| 2 | 6570-025 | Bolt: 5/16-18 x 1/2" |
| 3 | 6570-509 | Flat Washer 5/16" |
| 4 | 6570-127 | Lock Washer 5/16" |
| 5 | 6500-832 | Bracket: 48 Frame, Half Band |
| 6 | 6500-833 | Bracket: 48 Frame, Half Band (Captive Nut) |
| 7 | 6500-834 | Base: Universal Cradle Bracket |
| 8 | 6570-126 | Nut, 5/16-18 Thread |
| 9 | 6570-127 | Washer, Split-Lock, 5/16" |
| 10 | 6570-509 | Washer, Flat 3/8" |
| 11A | 6570-202 | Pump Insulator: 1" Diameter x 3/8" Long (Rubber) |
| 11B | 6570-023 | Pump Insulator: 1" Diameter x 3/4" Long (Rubber) |
| 11C | 6570-011 | Pump Insulator: 1-1/4" Diameter x 1" Long (Rubber) |
| 11D | 6570-006 | Pump Insulator: 1-3/8" Dia. x 1-1/2" Long (Rubber) |
