Seal Assembly: PS200 (5/8") – Jacuzzi J-400 (2006–2009)

$67.95

Seal Assembly: PS200 (5/8") – Jacuzzi J-400 (2006–2009)

$67.95
Ships with FedEx Fast delivery from Ontario, Canada
Description

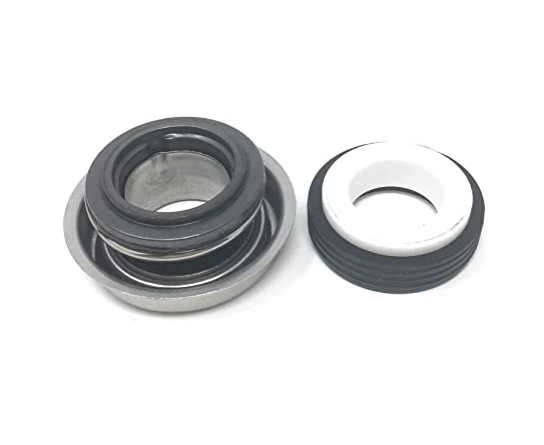

6500-447 – OEM Jacuzzi® Seal Assembly, PS200 (5/8"). Used in J-400 Series, 60Hz North America Fixed Bracket AquaFlo 56 Frame Pump Parts. Designed for pump sealing applications.

Compatibility:

  • Jacuzzi® J-400 Series 2006–2009, 60Hz, Fixed Bracket AquaFlo 56 Frame

Special Notes: Compatible with USA/Canada models. Part of the pump assembly for maintaining proper sealing and preventing leaks.

AquaFlo 56 Frame Pump Parts (2006–4/2009)

Compatible Pumps (Discontinued):

  • 6500-901 – 3:00 Rotation, 1-Speed
  • 6500-902 – 9:00 Rotation, 1-Speed
Exploded view diagram of AquaFlo 56 Frame Pump Parts (2006–4/2009)
Item # Part # Description
1 6000-031 Replacement Split Nut 2"
2 6500-232** Union Assembly (Straight)
3 6500-037** Union Assembly (45°)
4 6000-047 Drain Plug
5 6000-204 Drain Plug: O-Ring
6 6500-822 Screw: Mach., 8-32 x 5/8 SS
7 6500-829 Housing Front (Volute)
8 6000-154 Housing O-Ring
9 6500-825 Wear Ring
10 6500-823 Impeller (USA/Canada)
11 6500-447 Seal: Assembly, PS200 (5/8") (USA/Canada)
12 6500-828 Housing Back: Aquaflo
13 6570-126 Nut
14 6570-127 Washer (Split Lock)
15 6570-509 Washer
16 6570-023 Motor Insulator (USA/Canada)
17 6000-645 or 6000-554** O-Ring, 2" Union

** Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.
