Pump: Universal Bracket Kit – Jacuzzi 56 Frame Pumps (2007+)
Pump: Universal Bracket Kit – Jacuzzi 56 Frame Pumps (2007+)
$75
95
Available, ready to ship.
Couldn't load pickup availability

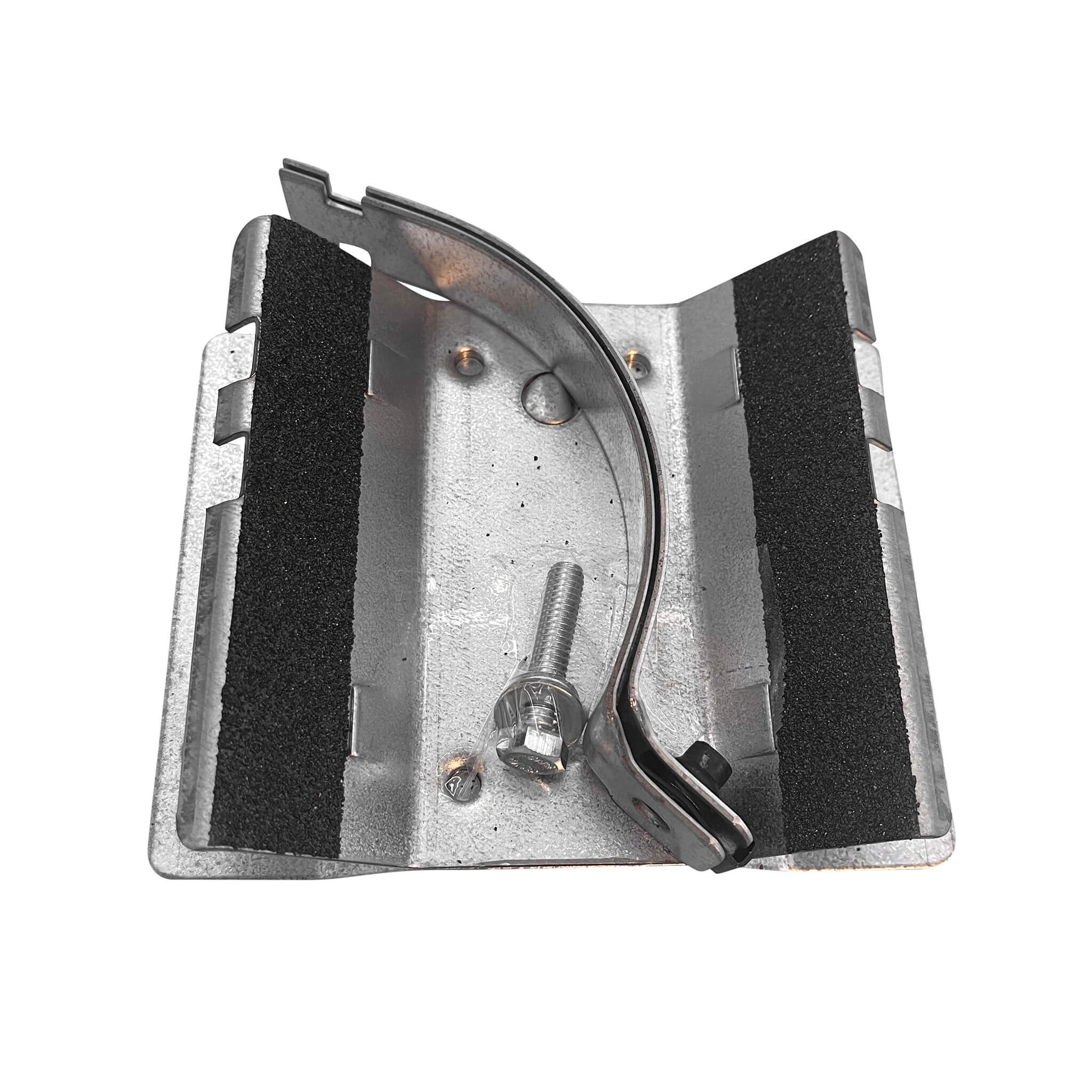

6000-535 – OEM Jacuzzi® Universal Mounting Bracket Kit. Used in 56 Frame Pumps, North American Jet Pumps. Designed for pump mounting and stability.
Compatibility:
- Jacuzzi® 56 Frame Pumps (2007+)
Special Notes: Includes universal mounting bracket assembly and necessary hardware. Compatible with 56 Frame pumps. Retrofit advisory: must use specific mounting bracket for proper installation.
Pump Mounting Brackets (For Bracketless North American Jet Pumps)
Universal 56 Frame Pump Bracket Kit (2007+)
| Item | Part # | Description |
|---|---|---|
| 1 | 6000-535 | Universal Mounting Bracket Assembly |
| 2 | 6570-025 | Bolt: 5/16-18 x 1-1/2" |
| 3 | 6570-509 | Flat Washer 5/16" |
| 4 | 6570-127 | Lock Washer 5/16" |
| 5 | 6500-837 | Bracket: 56 Frame, Half Band |
| 6 | 6500-838 | Bracket: 56 Frame, Half Band (Captive Nut) |
| 7 | 6500-834 | Base: Universal Cradle Bracket |
| 8 | 6570-126 | Nut, 5/16-18 Thread |
| 9 | 6570-127 | Washer, Split-Lock, 5/16" |
| 10 | 6570-509 | Washer, Flat 3/8" |
| 11A | 6570-202 | Pump Insulator: 1" Diameter x 3/8" Long (Rubber) |
| 11B | 6570-023 | Pump Insulator: 1" Diameter x 3/4" Long (Rubber) |
| 11C | 6570-011 | Pump Insulator: 1-1/4" Diameter x 1" Long (Rubber) |
| 11D | 6570-006 | Pump Insulator: 1-3/8" Dia. x 1-1/2" Long (Rubber) |
