Description

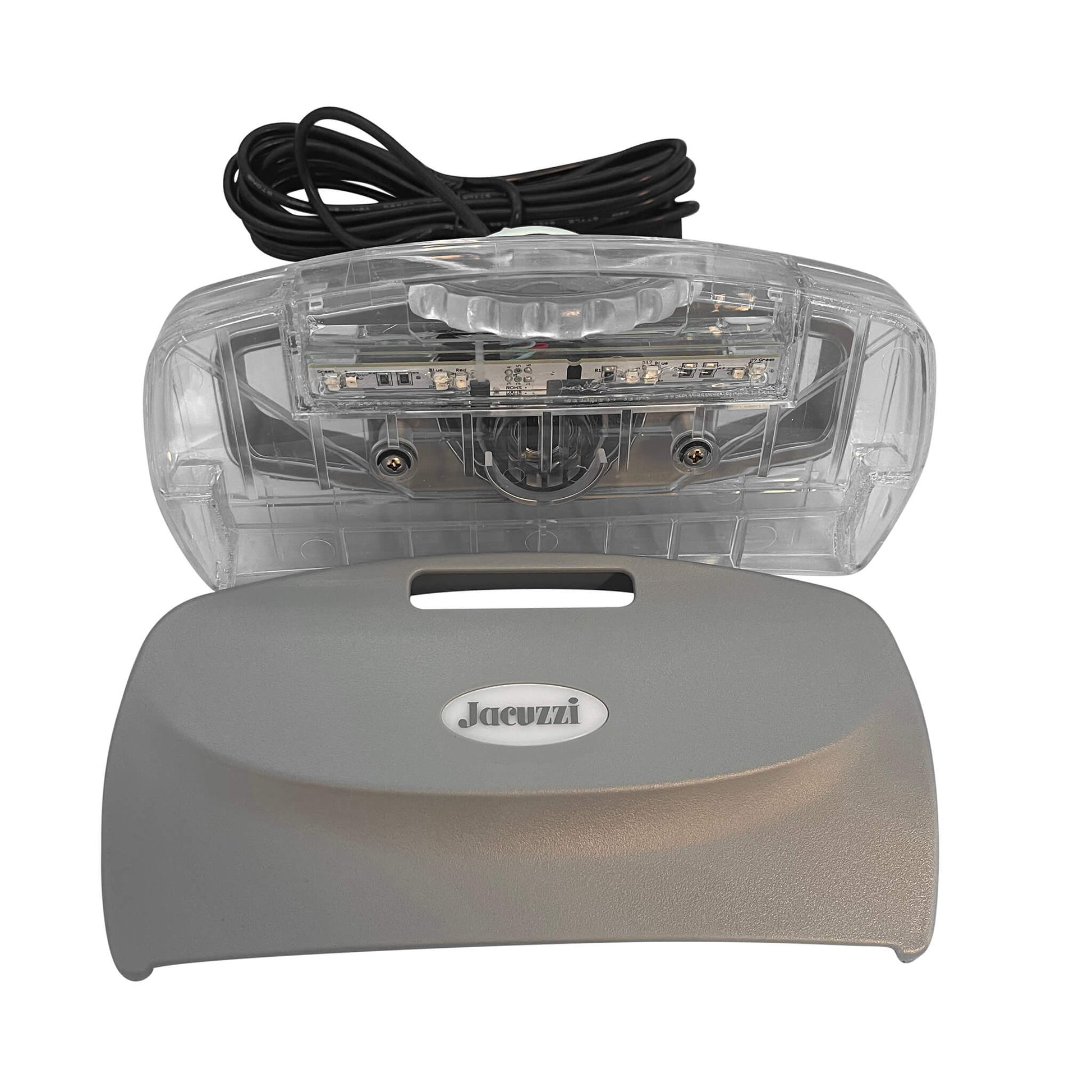

6560-125 – OEM Jacuzzi® waterfall assembly with light, used in select Jacuzzi® J-300™ models manufactured from 2007–2014.
Compatible with the following Jacuzzi® models:
- Jacuzzi® J-355™, J-345™, J-335™, J-325™ (2013–2014)
- Jacuzzi® J-355™, J-345™, J-335™, J-325™ (2007–2012)
Subtype | Waterfall Assembly With Light |
---|---|
System | Waterfall Feature |
Material | Plastic |
Part # | Description | |
---|---|---|
1 | 6560-125 | Waterfall (15VDC), 2014–2015: Kit with Mini-DIN Connector (Body, Cover, and Nut Included); Note: Gasket purchased separately below |
2 | 6541-068 | Waterfall Cover (2014+) |
3 | 2540-906 | Gasket: Waterfall |
4 | 2560-904 | Nut: Waterfall |
— | 6000-362 | Adapter Cable (not shown): Used when retrofitting 2540-904 |
