Air Components

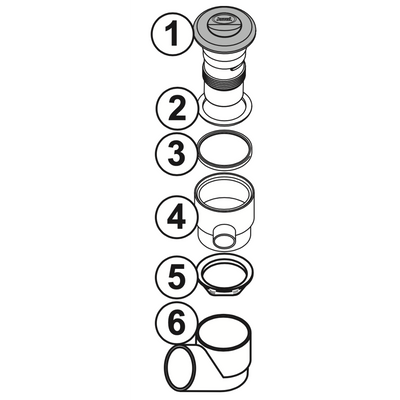

Air control valves are available for sale for the J-LX hot tub and the J-LXL hot tub. Individual air control components and their specifications are listed below: J-LX & J-LXL Air Control Valve (2011+) J-300 Air Control Valve (2007+) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control J-300 Air Control Valve (2002-2006) Air control valves are available for sale for the J-300 Hot Tub Series. Individual air control components and their specifications are listed below: 6540-914, Control: Air Push Button 6540-913, Gasket: Push Button Air Control 6540-522, O-Ring: Push Button Air Control 6540-912, Manifold: Push Button Air Control 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control  J-LX/J-LXL Air Bleed Line Fitting (2011+) J-300 Air Bleed Line Fitting (2005+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray

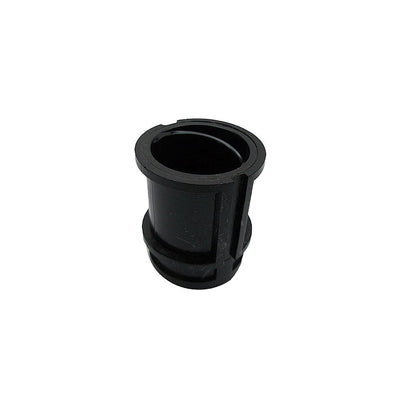

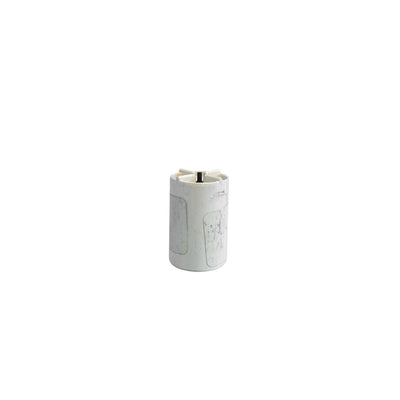

Air control valves are available for sale for the J-400 Series by Jacuzzi® Hot Tub. The air control valve is suitable for all hot tub models, but the part number will change depending on the model: individual air control components and their specifications are listed below: J-400 Air Components (2006+) Air Control Valve (All J-435, J-445, J-475, J-485, & 2020+ J-425, J-495) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control  Air Control Valve (All other J-400 Models) 20101-001, Knob: Air Valve 6540-377, Control: Air Body And Stem 6540-522, O-Ring: EPDM, 1.64" ID x 0.163" 6540-375, Manifold: Air Control Jacket 6540-376, Nut: Air Control 6000-179, Knob Stem 6000-016, Cup (Long) 6000-029, O-Ring  Filter/Skimmer Air Bleed Line 20216-001, Check Valve: 3/4" Air 6540-024, Adapter: 1/2" Spigot x 3/8" Barb 6570-491, Clamp: Metal Hose (Black) IX Jet Air Bleed Check Valve 20216-001, Check Valve: 3/4" Air 6540-065, Adapter: 1" Spigot x 3/4" Barb 6570-033, Clamp: 27mm J-400 Air Bleed Line (2009+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray

J-200 Series Air Components (2005+) Compatible Models: J-275, J-245, J-235, J-210 (2012+) J-270, J-280 (2007+) J-230 (2008+) J-225, J-215 (2017+) 2540-281, Control: Air with Knob 6541-284, Manifold: Air Control Jacket 6541-282, Nut: Air Control (Not Shown) 6541-283, Gasket: Air Control (Not Shown)

Air valve and knob for the Celebrity C-78 and C-84 hot tub. Also used in Sunrise (and other) hot tubs.   R3035164, Handle (knob), S-Style, DSG, fits Sure Grip Mounting system (alternative part number #662-2169-DSG) R3035160, Air Control, Sure Grip Mounting System (SGMS) and TT Cap (alternative part number #668-0009LH-TT)

Air control valves are available for sale for the J-500 Series by Jacuzzi® Hot Tub. The air control valve is suitable for all hot tub models, but the part number will change depending on the model: individual air control components and their specifications are listed below: J-500 Series Air Components (2015+) 6541-142, Control: Air Toggle Switch 6541-143, Gasket: Toggle Outer Shell 6541-144, O-Ring: Toggle Inner Shell 6540-375, Manifold: Air Control Jacket 6540-911, Nut: Push Button Air Control 6540-910, Elbow: Push Button Air Control J-500 Air Bleed Line Fitting (2015+) 6540-252, Nut: Air Injector 6540-228, O-Ring: EPDM 0.662" ID x 0.210" 6541-263, Injector: Air PVC Gray
