6000-125RK – OEM Jacuzzi® Circulation Pump Kit. Used in J-300 Series, 240V, 60Hz. Designed for circulation pump replacement.
Compatibility:
- Jacuzzi® J-280/J-270/J-230 Non-Convertible Spas (2002–2011) 240V 60Hz
- Jacuzzi® J-300 Non-Convertible Spas with Circulation Pump Option (2002–2011) 240V 60Hz
Special Notes: Replaces older pump models 6000-125, 6000-035, 2500-260, and 6000-125E. Includes adjustable output and power cable angle. Installation instructions provided.
North American 60Hz Low-Flow Circulation Pumps
Optional Low-Flow Circulation Pump Replacement Kits
6000-125RK Kit
For 240V Non-Convertible Spas. Includes 6000-125R 240V Circulation Pump and items A–I.
Replaces: 6000-125, 6000-035, 2500-260, 6000-125E
6000-314 Kit
For 120V Convertible Spas. Includes 6500-066, 120V Circulation Pump and items A–I.
Replaces: 2500-460, 6500-038
Included Kit Parts
| Item | Part # | Description |
|---|---|---|
| A | 6570-033 | Clamp: 27mm (x2) |
| B | 6570-100 | Screw: #6 x 1" Wood (Flat Head) (x2) |
| C | 6541-075 | Adapter: 3/4" Barb x Barb (x1) |
| D | 6540-118 | Elbow: 3/4" Barb x Barb (x1) |
| E | 01150-01 | Wire: #6, Bare Copper, 36" (Bonding Wire) (x1) |
| F | 6540-744 | Hose: 3/4" Clear PVC, 36" (x1) |
| G | 6000-435 | Nut: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| H | 6000-436 | Barb: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| I | 6000-437 | Gasket: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
Note: These kits include adjustable output and cable angle. Installation location may differ from OEM pump.
Individual Circulation Pumps for J-300 Non-Convertible Spas (2002–2011) and J-315 & J-325 Models (3/2018–2024)
Used in: J-315 & J-325 240V Models (3/2018–2024), J-300 Series (2002–2011), All J-280, J-270, J-230 Non-Convertible Spas (2002–2011)

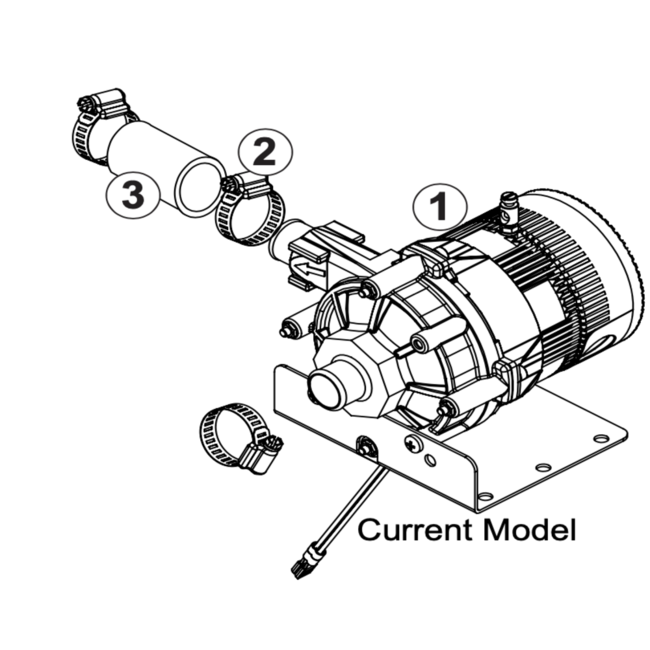

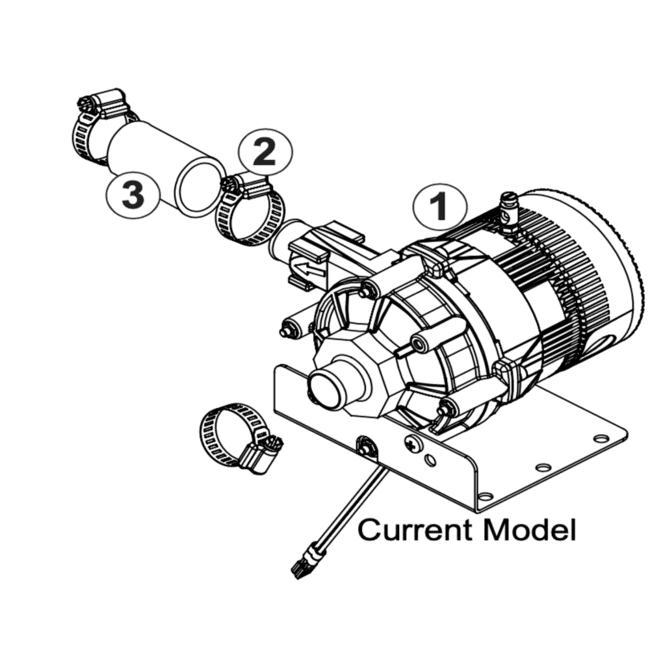

| Item # | Part # | Description |
|---|---|---|
| 1 | 6000-125E / 6000-125NA | Circulation Pump: 240V 60Hz with Cord (Laing or Grundfos). Replaces 6000-125, 6500-035 pumps. |
| 2 | 6570-099 | Clamp: 3/4" Stainless Steel (JWB# 9666000) |
| 3 | 6540-744 | Hose: Clear PVC, 3/4" x 1' |
