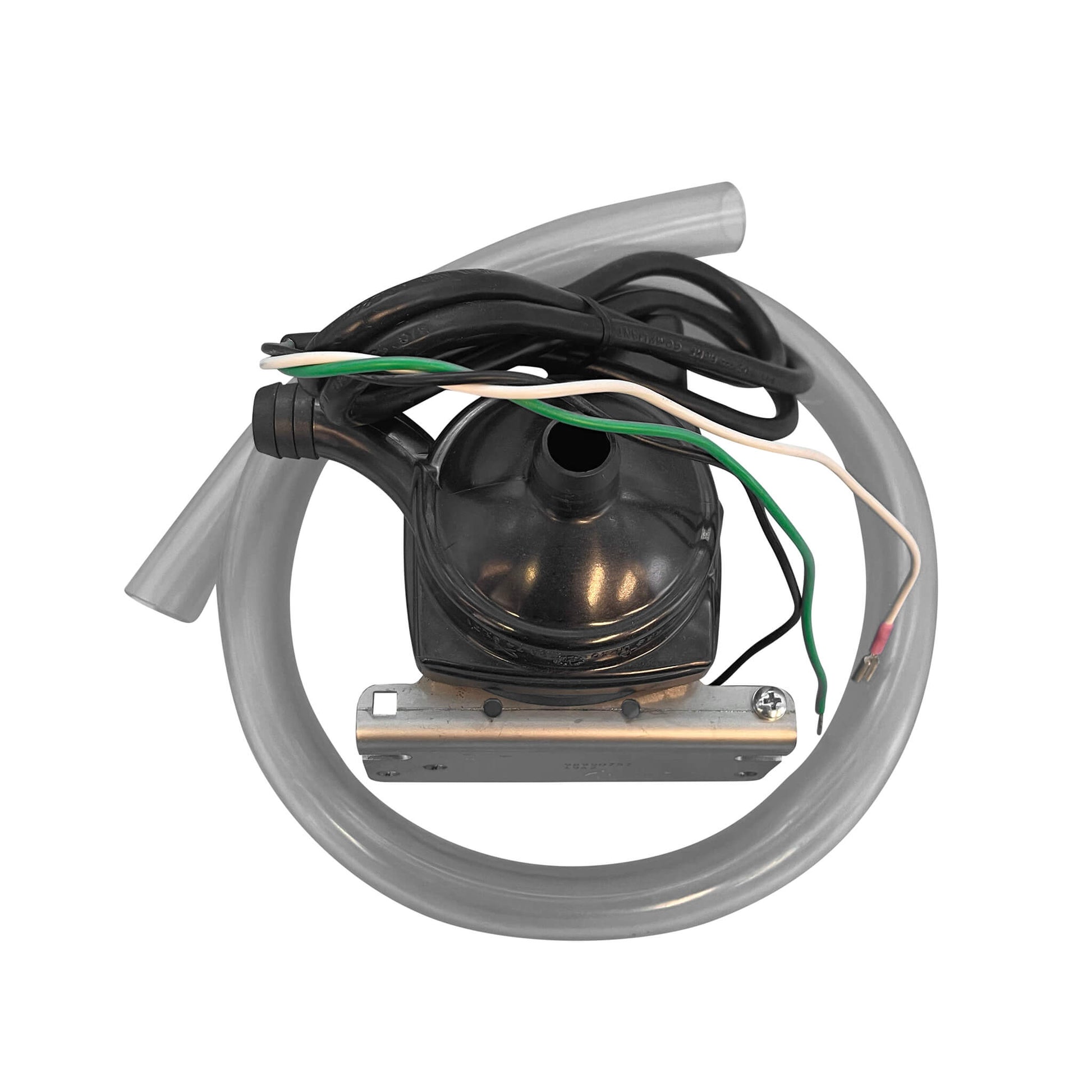

6000-314 – OEM Jacuzzi® Circulation Pump Kit. Used in J-300 Convertible Spas, 120V, 60Hz. Designed for circulation systems.
Compatibility:
- Jacuzzi® J-300 Convertible Spas (2012–2024), 120V, 60Hz
Special Notes: Includes 6500-066, 120V Circulation Pump and items A-I. This pump kit can be used in place of the 2500-460 and 6500-038 OEM pumps. Note: The pump in this kit includes an adjustable output and power cable angle. Installation instructions provided.
North American 60Hz Low-Flow Circulation Pumps
Optional Low-Flow Circulation Pump Replacement Kits
6000-125RK Kit
For 240V Non-Convertible Spas. Includes 6000-125R 240V Circulation Pump and items A–I.
Replaces: 6000-125, 6000-035, 2500-260, 6000-125E
6000-314 Kit
For 120V Convertible Spas. Includes 6500-066, 120V Circulation Pump and items A–I.
Replaces: 2500-460, 6500-038
Included Kit Parts
| Item | Part # | Description |
|---|---|---|
| A | 6570-033 | Clamp: 27mm (x2) |
| B | 6570-100 | Screw: #6 x 1" Wood (Flat Head) (x2) |
| C | 6541-075 | Adapter: 3/4" Barb x Barb (x1) |
| D | 6540-118 | Elbow: 3/4" Barb x Barb (x1) |
| E | 01150-01 | Wire: #6, Bare Copper, 36" (Bonding Wire) (x1) |
| F | 6540-744 | Hose: 3/4" Clear PVC, 36" (x1) |
| G | 6000-435 | Nut: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| H | 6000-436 | Barb: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| I | 6000-437 | Gasket: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
Note: These kits include adjustable output and cable angle. Installation location may differ from OEM pump.
