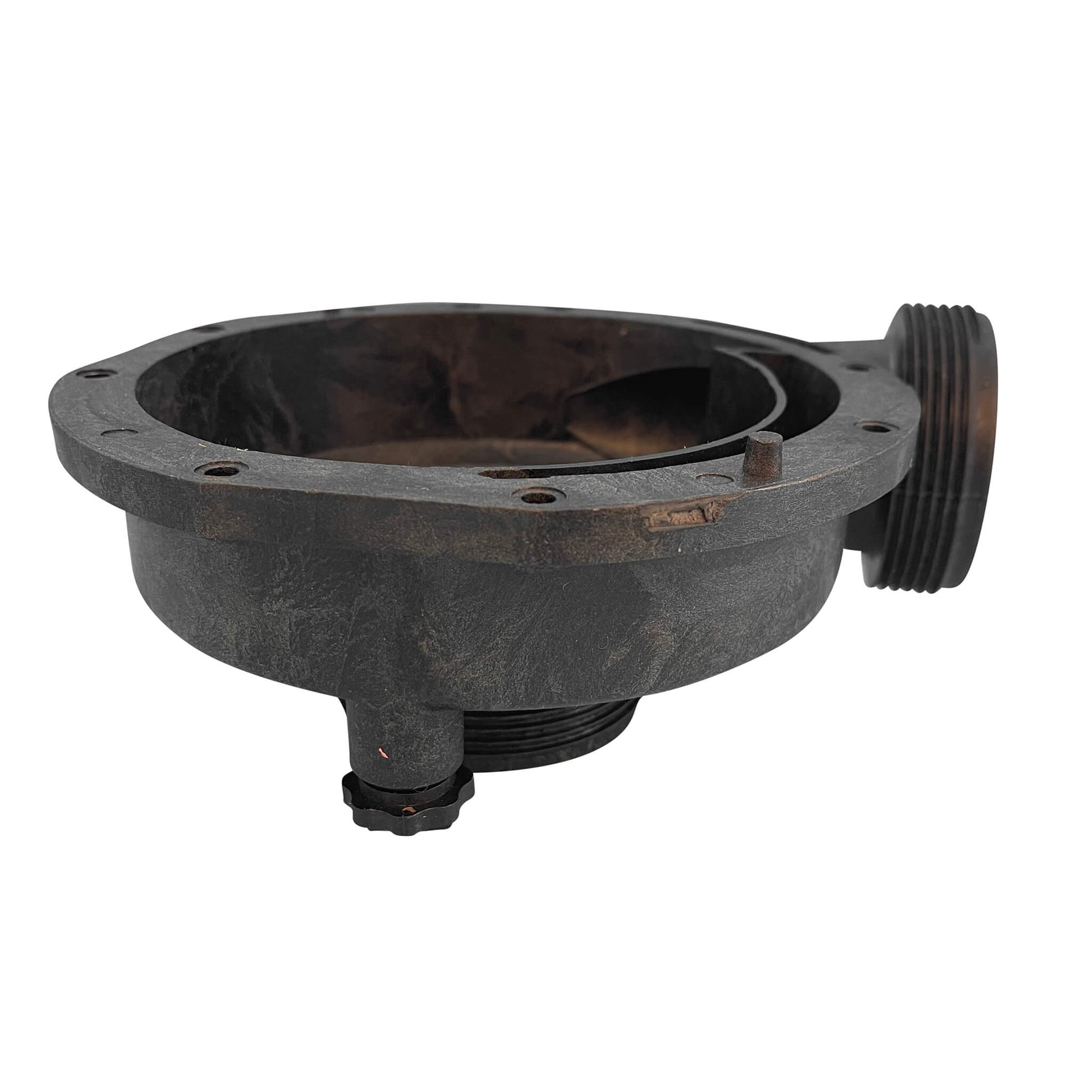

6500-288 – OEM Jacuzzi® Pump Housing Case S45. Used in J-400/J-300/J-200 Series, 50Hz. Designed for pump housing replacement.
Compatibility:
- Jacuzzi® J-400/J-300/J-200 Series (2002+), 50Hz
Special Notes: Compatible with 2HP 2-Speed, 230V pumps. Includes housing case only.
48 Frame Pumps (Prior to 6/2009)
48 Frame Pump Parts (Prior to 6/2009)
Compatible Pumps (Discontinued):
- 6500-707 – 2-Speed
- 6500-753 – 2-Speed
- 6500-754 – 2-Speed
- 6500-758 – 2-Speed
- 6500-759 – 2-Speed
- 6500-761 – 2-Speed
- 6500-769 – 1-Speed
- 6500-763 – 1-Speed
| Item # | Part # | Description |
|---|---|---|
| 1 | 6000-031 | Nut: Split Replacement 2" |
| 2 | 6500-232** | Union: Assembly 2" (Straight) |
| 3 | 6500-037** | Union: Assembly 2" (45°) |
| 4 | 6000-645 or 6000-554** | O-Ring: 2" |
| 5a | 6540-171 | Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel |
| 5b | 6540-030 | Adapter: 1/4" MIPT x 3/8" Barb, Glass Filled Polypropylene - Noryl |
| 6 | 6540-263 | O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø |
| 7A | 6500-288 | Housing: Front 2.0hp (07/2003+), Housing: Front 2.5hp (All) |
| 7B | 6500-287 | Housing: Front, 2.0HP (1999–6/03) |
| 8 | 6570-070 | Screw: Self-Tapping |
| 9 | 6500-255 | Plug: Drain 0.25" NPSM |
| 10 | 6500-256 | O-Ring: Drain Plug 0.487" ID |
| 11 | 6500-290 | O-Ring: Front Housing |
| 12a | 6500-295 | Impeller 2.5hp (4.129" Diameter) |
| 12b | 6500-296 | Impeller 2.0hp (3.875" Diameter) |
| 12c | 6500-309 | Impeller 2.0hp (4.025" Diameter) |
| 12d | 6500-308 | Impeller 1.5hp (3.65" Diameter) |
| 13a | 6500-281 | Seal: Assembly, 2.0hp, 0.625" Shaft, PS200 (2002–06/2006) |
| 13b | 6500-805 | Seal: Assembly, 2.5hp, 0.75" Shaft, PS201 (All Years) |
| 14a | 6500-286 | Housing: Rear Bkt. 2.0hp (1999–06/2003) |
| 14b | 6500-311 | Housing: Rear Bkt. 2.0hp (07/03+), Housing: Rear Bkt. 2.5hp (All) |
| 15 | 6000-285 | Plug: Jacuzzi Filter |
Note 1. Wet end parts listed above are for pumps manufactured prior to 6/2009. To visually identify these pumps, examine the rear housing bracket (14) for round hole "platforms" (See Details Above).
Note 2. Pump 6500-341 (48FR) replaced by P/N 6500-352 (56FR) in July 2010+ for J-300/J-200 Series. Pump 6500-343 (48FR) replaced by P/N 6500-367 (56FR) in August 2010+ for J-300/J-200 Series.
Note 3. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.
Note 4. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.
Export 50Hz Fixed Bracket Pumps (2002+)
Export 50Hz Fixed Bracket Pump Parts (2002+)
Compatible 50Hz Pumps:
- 6500-291 – 12:00 Rotation, 2-Speed
- 6500-299 – 3:00 Rotation, 2-Speed
| Item # | Part # | Description |
|---|---|---|
| 1 | 6570-070 | Screw: #10-12 × 1", Type A (8 Required) |
| 2 | 6500-288 | Pump: Housing Case S45 |
| 3 | 6500-290 | Square Ring: 6" ID × 0.125" Ø |
| 4 | 6500-298 | Impeller: 4.2" Diameter Export |
| 5 | 6500-805 | Pump: Seal Assembly, PS201 (3/4") |
| 6 | 6500-311 | Bracket: Pump Universal |
| 7 | 6500-278 | Motor: 2HP 2-Speed, 230V 50Hz TUV |
| 8 | 6530-134 | Label: Pump Universal |
| 9 | 6560-410 | Connector: Liquid Tight, 1/2" #3231 |
| 10 | 6570-126 | Nut, 5/16" - 18, Hex |
| 11 | 6570-127 | Washer, Split Lock, 5/16" |
| 12 | 6570-509 | Washer, 3/8" |
| 13 | 6570-006 | Motor Mount Insulator, 1.5" |
