Suction Fittings: J-200 Series
J-200 Wall Suction Fitting (2005+)
- 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008
- 6540-564, Grate: Suction
- 6540-565, Fitting: Wall Suction (Nut and 6000-564 Screw Included)
- 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring)
- 6540-619, Washer: Self Levelling Suction Assy.
- 6000-564, Screw: 8-32 x 12mm, 316SS

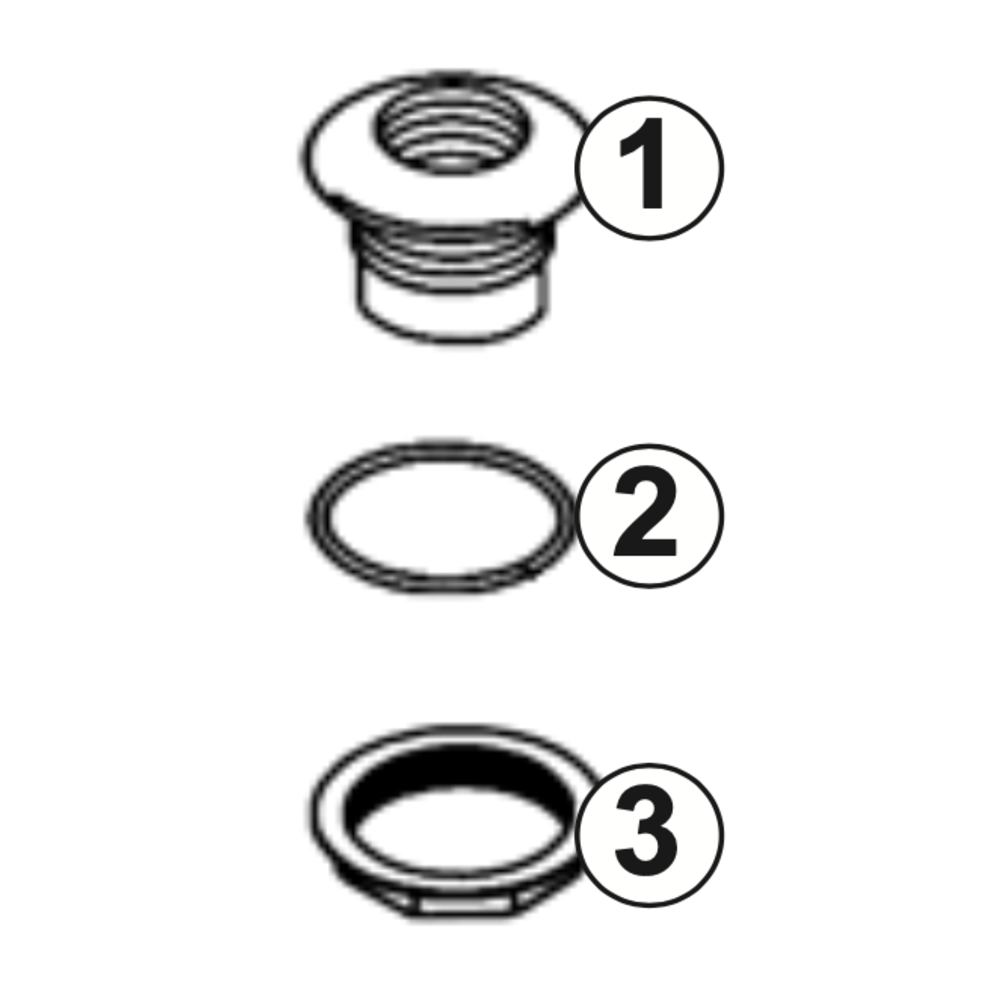

J-200 Filter Wall Fitting (2007+ J-280, J-270, J-230 Models)
- 6540-102, Wall Fitting, 2" (Gray)
- 6540-511, O-Ring: EDPM, 2.85" ID x 0.210" Ø
-
6540-791, Nut, 2"
