Sundance 680 Synthetic Panels 2017+

These panels are special order and once ordered are non-refundable. Ensure you order the correct skirt or ask for assistance. Panels are not in stock at time of order.

Order requires measurements of existing cabinet piece. Please provide measurements in your order note during checkout to avoid delays.

2017+ Sundance 680 Series Panels

Complete set in gray:

• Mahogany and Teak available on request.
• *Replacement panels are not pre-drilled or cut for drain or power.
• **Pre-drill a countersink hold when using a flat head screw

	Model	Edison Peyton	McKinley Ramona
Used until Nov 2019	1 - Front	8104-473G	8104-469G

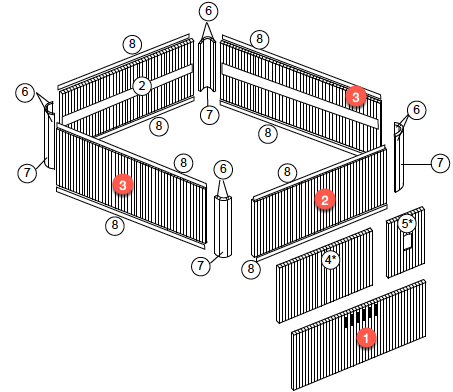

Used Dec 2019+	2 - Front	8104-476G	8104-472G
Used until Oct 2019 (with stereo)	4 - Front (left)	8104-474G	8104-470G

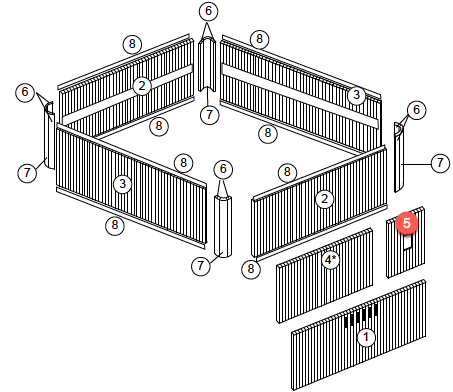

	5 - Front (right)	8104-475G	8104-471G
	3 - Side	8104-476G	8104-472G

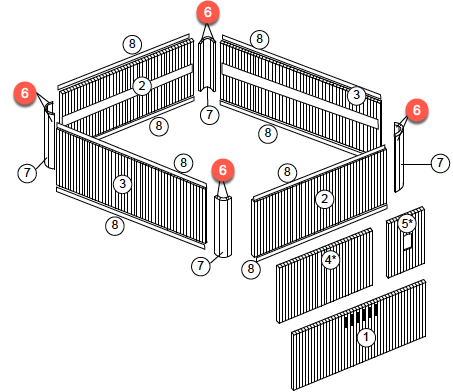

	6 - Corner edge	6551-730G

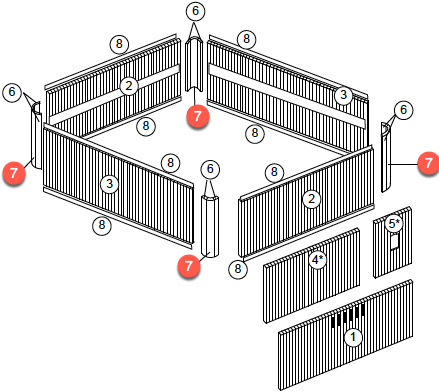

	7 - Corner center	6551-732G

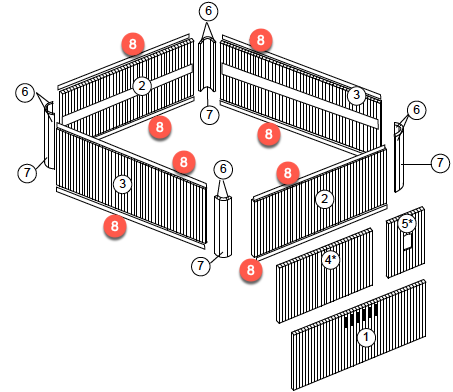

	8 - L channel	6551-035G
