Valve: Wall T-Valve – Jacuzzi J-200 Series (2005–Present)

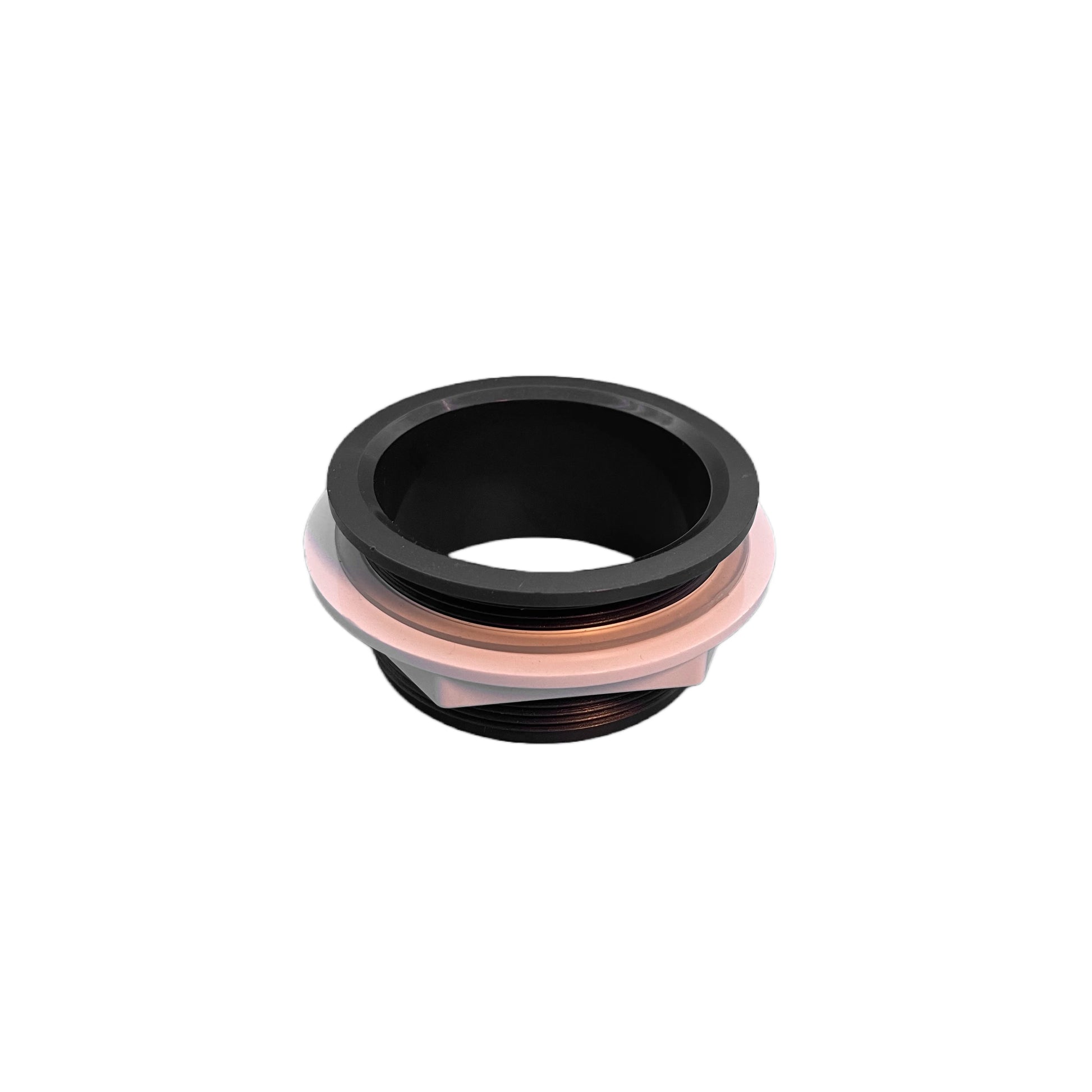

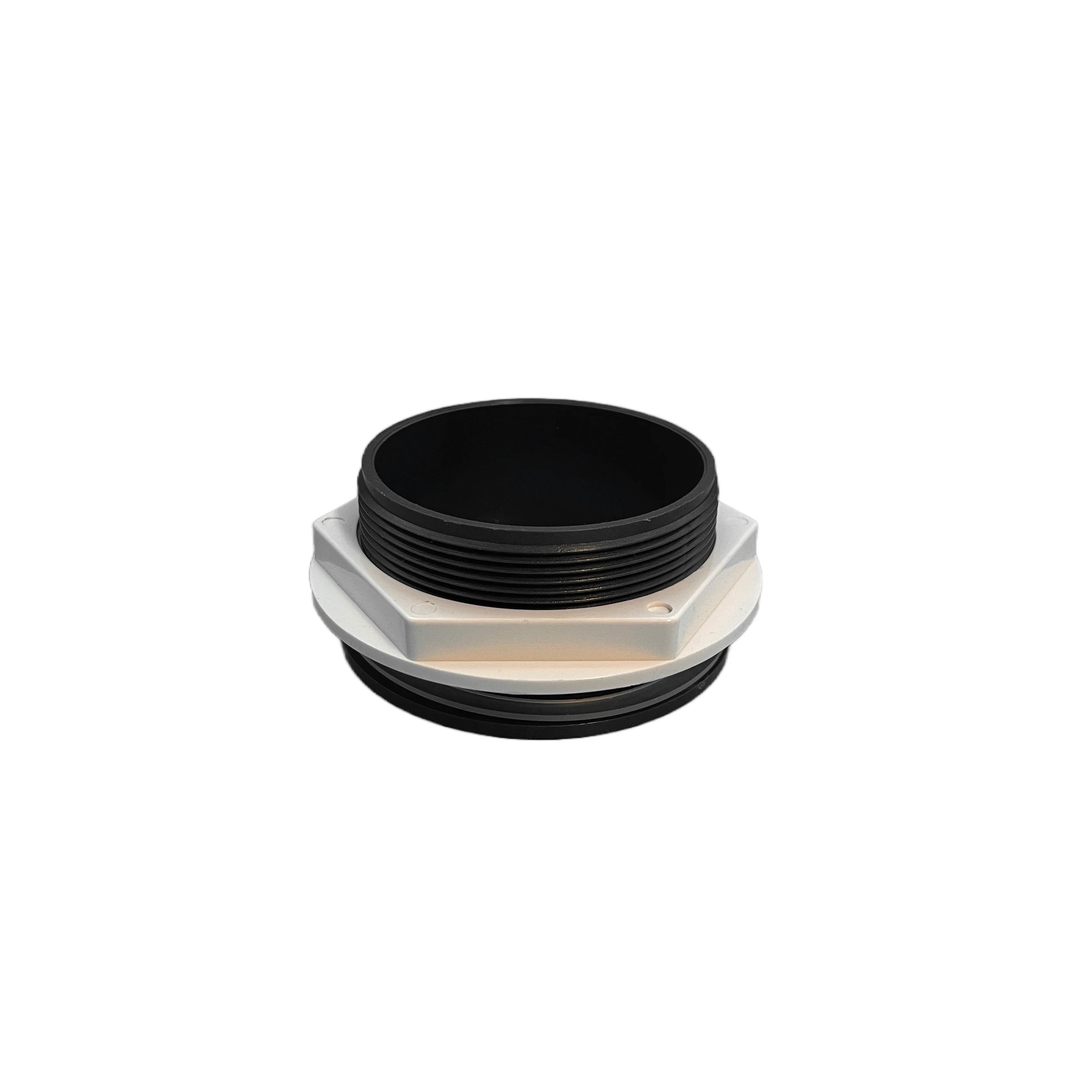

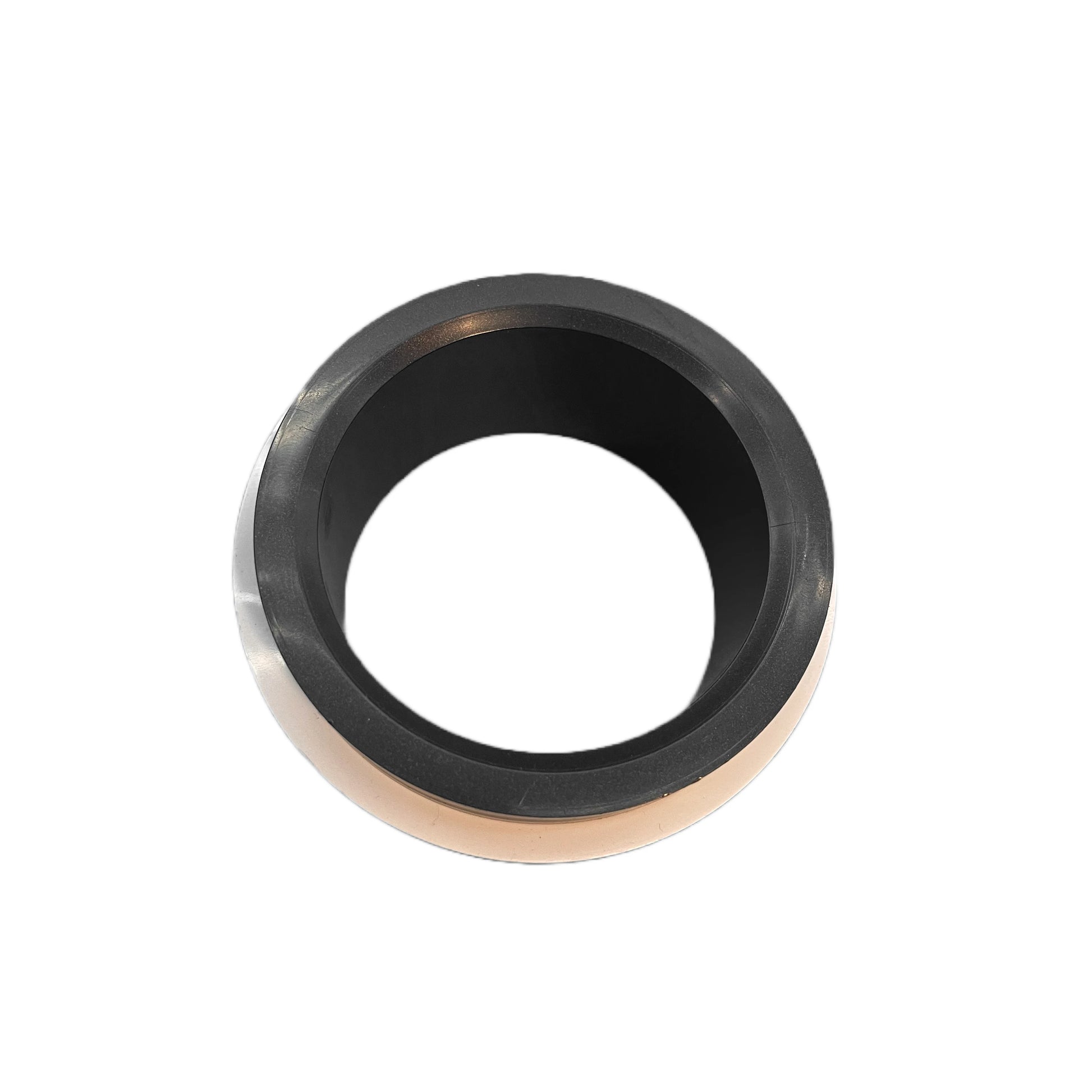

2540-275 – OEM Jacuzzi® Wall T-Valve Fitting, used in select Jacuzzi® J-200™ models manufactured from 2005–Present.

Compatible with the following Jacuzzi® models:

Compatible J-200™ Models:

• Jacuzzi® J-210™ (2005+)
• Jacuzzi® J-220™ (2005+)
• Jacuzzi® J-230™ (2008+)
• Jacuzzi® J-270™ (2007+)
• Jacuzzi® J-280™ (2007+)

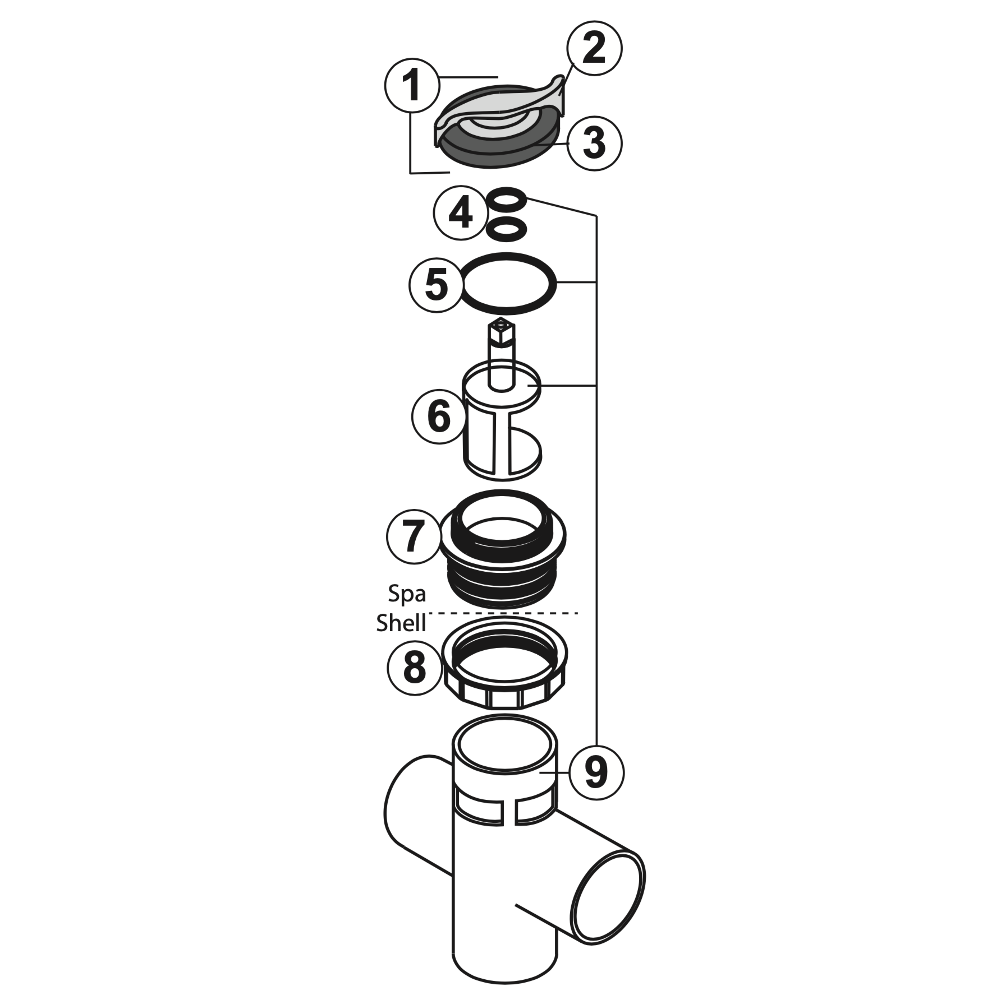

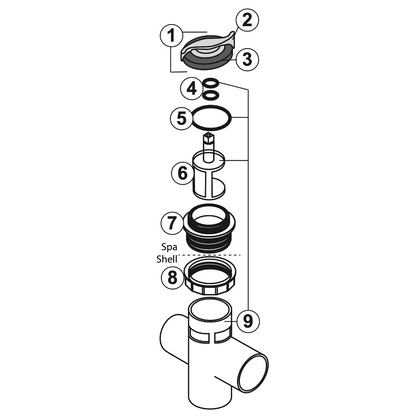

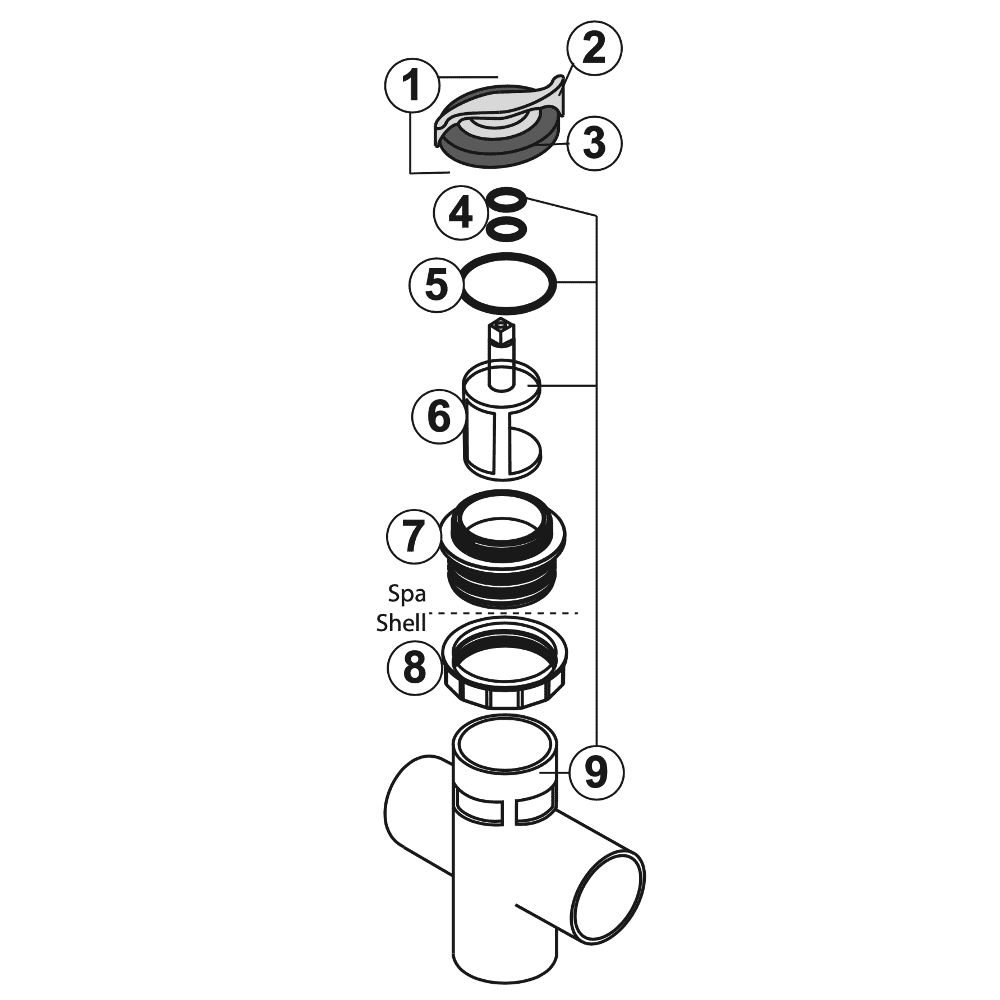

	Part #	Description
1	2540-239	T-Valve: Cap And Knob
2	2540-274	T-Valve: Knob
3	2540-273	T-Valve: Cap
4	6541-241	O-Ring: Stem (2 Req'd)
5	6541-240	O-Ring: Body
6	6541-242	Gate Valve (T-Valve)
7	2540-275	Fitting: Wall T-Valve (6541-238 Nut Included)
8	6541-238	Nut: Diverter
9	6541-236	Body Assembly: T-Valve (Includes one each of items 4 through 6 above)
