All Hot Tub Parts

These items are special order, and may be out of stock at the time of order. Please ask for assistance if unsure as they are Non-refundable. 2540-051, Manifold: Water 4 Port 3/4" Barb x 1-1/2" (JWB# H198000) 6540-127, Manifold: Water 2 Port Side 3/4" Slip 6540-314, Manifold: Water 4 Port 3/4" Barb (JWB# R393000) 6540-312, Manifold: Water 2 Port 3/4" Barb x 2" 6540-315, Manifold: Water 4 Port 3/4" Barb (Blind End) 6540-316, Manifold: Water 2 Port 3/4" Barb (Blind End) 6540-788, Manifold: Water 6 Port 3/4" Barb (JWB# R396000) 6541-058, Manifold: Water 3 Port 1" Barb (Blind End) 6541-131, Manifold: Water 3 Port 1" Barb 6540-782, Manifold: Water 14 3/8" Barb x 1.5" Slip x Blind End (Discontinued) 6541-511, Tee: Venturi with Check Valve SX (Used in 6/2012+ J-480 And 10/2012+ J-465 Lounge Jets)

J-300 North American 60Hz And Export 50Hz Models Note: Product may not be in stock at time of order and order may be delayed.  Please contact us for stock inquiry. 6600-296, All 2014-2015 1-Pump J-325, J-315 Models, Micro Chip 3.83 Included.  Note: Replaces 6000-296 6600-297, All 2014-2015 2-Pump J-385, J-375, J-365, J-355, J-345, J-335 Models. Replaces 6000-293 6600-724, 2002-2013 1-Pump J-300 models (except 2002-2003 J320 & 2005-2007 J325) * Discontinued 6660-289, Micro Chip Rev 3.82 (used with all 2014-2015 J-300 LED 1-Pump & 2-Pump spas with circulation pumps) *Please message us before ordering to ensure you are receiving the correct product needed.

6560-869, Pressure Switch Note: Also used in all Del Sol, 2005+ J-210, J-220; 2005-2007 J-230, 2007+ J-270, J-280 without the circulation pump option, 2012+ J-275, J-245, J-235, J-230, and 2005-2006 J-325 models without The Circ. pump option.

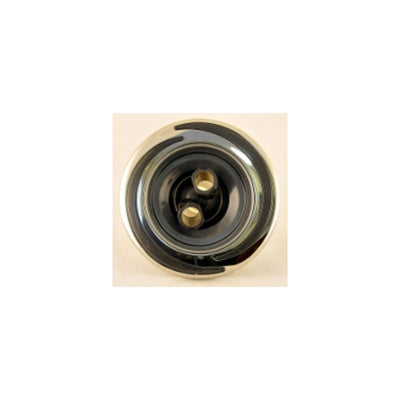

6541-288, Power Pro RX3 Jet Assembly with Stainless Steel Escutcheon, Includes Jetface, Jetpack, O-Ring and Nut 6541-634, Washer (Self- Leveling); Note: This jet assembly can retrofit the 20093-001 jet assembly listed below but does not retrofit the 6541-566 jet assembly listed below. 20093-001, Power Pro RX Jet with Stainless Steel Escutcheon (Includes O"˜Ring, Washer And Nut). Note: Jet Replaced by PowerPro RX Jet Assembly 6541-566 in all 2013 J-480/J-470/J-465/J-425/J-415/J-LXL/J-LX spas manufactured from 8/19/13-1/2014. The jet face used in this assembly is not interchangeable with the RX jets listed above.

6000-188, knob (gray)Compatibility: 980 Series: October 2016-October 2017 880 Series: 2007+ Select Series: 2011-2014 850/850E/Portofino Series: 2001-2005

These baskets are also used on Sunrise, Master Spa and others. *These products are special order - please expect an additional delay receiving these part. 30172687, Short basket, used on Nordic Hot Tubs 2017 and older (Black) with 25 square foot filtration.  30172689, Short basket, used on Nordic Hot Tubs 2018 and newer (Graphite Grey) with 25 square foot filtration but can also replace 2018 and older baskets (black). Approximately 6.5" diameter   30172709, Taller basket, used on Nordic Hot Tubs with 50 Sq Ft filtration (Graphite Grey). Also known as #1298B, #25351-909-200, #25351-907-200. Used telescoping weir pictured below. 30172700, Floating Weir Assembly for Elite Filter

Compatible with:  J-LX/LXL 2015-2019 J-355 2014+ J-365 2014+ J-375 2014+  J-385 2016+ J-415 2014-2019 J-425 2016+ J-435 2018+  J-445 2018+  J-465 2016-2017  J-470 2016+  J-480 2016-2018  J-485 2019+  J-495 2016+  J-575/585 2015+  A 6540-815, Jet Face: NX2 with Stainless Steel EscutcheonB 2541-820, Jet Face: NX2 without Stainless Steel Escutcheon (Limited Stock) 6540-962, Jet Back: SMT Micro 6540-854, O-Ring: SMT Micro 6540-964, Washer: Self Leveling SMT Micro 6540-965, Nut: SMT Micro

These J-200 Synthetic Skirt panels are available in Coastal/Silverwood, Bordeaux/Roasted Chestnut and Teak finish. These panels are special order and once ordered are non-refundable. Ensure you order the correct skirt or ask for assistance. Panels are not in stock at time of order. Required skirt order information: To ensure proper panel fit when ordering, you MUST measure the existing panel and/or top/bottom rails and include the dimensions on your order. Replacement panels are not predrilled or cut for drain and power inlets. Please place measurements in the "Note" section of the checkout. 2013-2016 J-200 Synthetic Skirt Panels  Complete Set for Bordeaux/Roasted Chestnut:     No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427M 8104-428M 8104-430M 8104-426M 6551-730M 6551-732M J-275 8104-427M 8104-428M 8104-430M 8104-426M 6551-730M 6551-732M J-245 8104-402M 8104-400M 8104-407M 8104-406M 6551-730M 6551-732M J-235 8104-402M 8104-400M 8104-407M 8104-406M 6551-730M 6551-732M   Complete Set for Coastal/Silverwood:   No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427G 8104-428G 8104-430G 8104-426G 6551-730G 6551-732G J-275 8104-427G 8104-428G 8104-430G 8104-426G 6551-730G 6551-732G J-245 8104-402G 8104-400G 8104-407G 8104-406G 6551-730G 6551-732G J-235 8104-402G 8104-400G 8104-407G 8104-406G 6551-730G 6551-732G   Complete Set for Teak:   No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427K 8104-428K 8104-430K 8104-426K 6551-730K 6551-732K J-275 8104-427K 8104-428K 8104-430K 8104-426K 6551-730K 6551-732K J-245 8104-402K 8104-400K 8104-407K 8104-406K 6551-730K 6551-732K J-235 8104-402K 8104-400K 8104-407K 8104-406K 6551-730K 6551-732K

Topside control panels for Jacuzzi J-300 series hot tubs. Note: Some parts are special order - not in stock at the time of order and Non-refundable. Please ask for assistance if unsure. Year Part ID Description 2020+ 6600-489 LCD panel for 2 pump J-300 (2020+) w/ bezel, encrypted. 6600-490 LCD panel for 1 pump J-300 (2020+) w/ bezel, encrypted. 2018/06-2019 6600-382 LCD panel for 1 pump J-300 (2018/06+), encrypted. Works w/ 2018/07+ encrypted and 2016-2018/06 non-encrypted boards. 6600-383 LCD panel for 2 pump J-300 (2018/06+), encrypted. Works w/ 2018/07+ encrypted and 2016-2018/06 non-encrypted boards. 2016/05-2018 6600-339 LCD panel for 2 pump J-300 (2016-2018/05). Not compatible w/ older models. 6600-341 LCD panel for 1 pump J-300 (2016-2018/05). Not compatible w/ older models. 2007-2012 2600-331 LED panel for J-300 (2008-2012). All 1 pump model 2002-2006 2600-322 LED panel for 2 pump J-300 (2002-2006). Special order* J-335/345 J-340 (2002-2003) J-230 (2005-2006) Replaced 2600-302. 2600-323 LED panel for J-300 (2002-2006). J-350/355 J-360/365 J-370/375 J-380/385 Replaced 2600-303.

J-200 Wall Suction Fitting (2005+) 6540-213, Filter: Spa Drain Cover; Note: Not Used After June 2008 6540-564, Grate: Suction 6540-565, Fitting: Wall  Suction (Nut and 6000-564 Screw Included) 6540-620, O-Ring: Compression (Replaced 6540-520 O-Ring) 6540-619, Washer: Self Leveling Suction Assy. 6000-564, Screw: 8-32 x 12mm, 316SS J-200 Filter Wall Fitting (2007+ J-280, J-270, J-230 Models) 6540-102, Wall Fitting, 2" (Gray) 6540-511, O-Ring: EDPM, 2.85" ID x 0.210" 6540-791, Nut, 2"

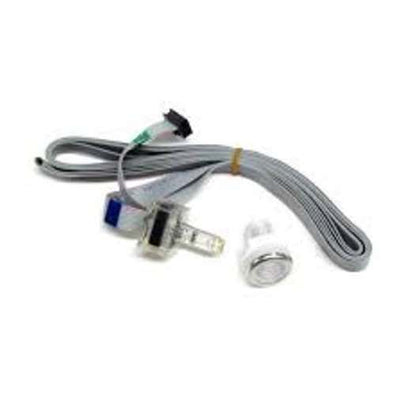

6560-135, Light DCU (Blue). Replaced 6560-134. Note: the cable marked "constant" is not used. 6000-362, Mini-DIN to Ribbon connector

The J-200 Synthetic Skirt panels are available in Coastal/Silverwood, Bordeaux/Roasted Chestnut and Teak finish. These panels are special order and once ordered are non-refundable. Ensure you order the correct skirt or ask for assistance. Panels are not in stock at time of order.   Required skirt order information: To ensure proper panel fit when ordering, you MUST measure the existing panel and/or top/bottom rails and include the dimensions on your order. Replacement panels are not predrilled or cut for drain and power inlets. Please place measurements in the "Note" section of the checkout.   Note: *Trim pieces 6 & 7 and corner pieces 8 & 9 require cutting after delivery.      2017+ J-200 Synthetic Skirt Panels & Trim Pieces Coastal/Silverwood: * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5   No Stereo Stereo (Before 6/2019)               Front Panel(1) Front Panel(2) Front Panel(3) Side Panel(4) Rear Panel(5) Front/Rear Trim (6) Side Trim(7) Outside Corner Piece(8) Inside Corner Piece(9) J-280J-275 8104-451G** 8104-452G*** 8104-453G*** 8104-454G 8104-454G 6551-035G 6551-035G 6551-730G 6551-732G J-245J-235 8104-455G** 8104-456G*** 8104-457G*** 8104-458G 8104-458G 6551-036G 6551-036G 6551-730G 6551-732G J-225 8104-451G** 8104-460G*** 8104-461G*** 8104-462G 8104-463G 6551-037G 6551-036G 6551-730G 6551-732G J-215 8104-464G** 8104-465G*** 8104-466G*** 8104-467G 8104-468G 6551-037G 6551-038G 6551-730G 6551-732G * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5 Bordeaux/Roasted Chestnut * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5   No Stereo Stereo (Before 6/2019)               Front Panel(1) Front Panel(2) Front Panel(3) Side Panel(4) Rear Panel(5) Front/Rear Trim (6) Side Trim(7) Outside Corner Piece(8) Inside Corner Piece(9) J-280J-275 8104-451M** 8104-452M*** 8104-453M*** 8104-454M 8104-454M 6551-035M 6551-035M 6551-730M 6551-732M J-245J-235 8104-455M** 8104-456M*** 8104-457M*** 8104-458M 8104-458M 6551-036M 6551-036M 6551-730M 6551-732M J-225 8104-451M** 8104-460M*** 8104-461M*** 8104-462M 8104-463M 6551-037M 6551-036M 6551-730M 6551-732M J-215 8104-464M** 8104-465M*** 8104-466G*** 8104-467M 8104-468M 6551-037M 6551-038M 6551-730M 6551-732M * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5

Air valve and knob for the Celebrity C-78 and C-84 hot tub. Also used in Sunrise (and other) hot tubs. R3035164, Handle (knob), S-Style, DSG, fits Sure Grip Mounting system (alternative part number #662-2169-DSG) R3035160, Air Control, Sure Grip Mounting System (SGMS) and TT Cap (alternative part number #668-0009LH-TT)

6000-374 - Compression Washer for Quartz Seal Nut 6472-841 - Replacement UV Sanitizer Bulb (Yearly Replacement Req'd) 6472-859 - Replacement UV Sanitizer Quartz Tube 6000-444 - Ballast: UV unit for 240V AMP *special order 6000-449 - Ballast: UV unit for 230V DSMT *special order  Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled.Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information.If a special order item is ordered with other non-special order items, it will delay the entire order.

2019+ J-495, J-485, J-475, J-445, J-435 & 2020+ J-425 LCD Series 6600-509, Panel, LCD 2019+ J-495, J-485, J-475, J-445, J-435 & 2020+ J-425 with bezel, encrypted. Note: 2019 J-425 and J-415 use 6600-379, below. 6530-449, Jacuzzi Logo for panel (must be ordered with 6600-509) J-400 LCD Series (04/2018-2018) 6600-379, Panel: LCD J-400 04/2018-2018 & 2019 J-415 & J-425; Peel And Stick Gasket Included. Encrypted. Works with both 04/2018+ encrypted circuit boards, and 09/2015-03/2018 non-encrypted boards. J-400 LCD Series (Mid Dec 2009-2012) 6600-857, Mid Dec 2009-2011 Control Panel: LCD 1/3 VGA color graphics, 2-Pump. Replaced by the J-1000 conversion kit. 6600-405, 2012 Control Panel: LCD 1/3 VGA color graphics, 1-3 Pumps. Replaced by the J-1000 conversion kit.                            J-400 LCD Series (2006-2009) 20318-001, Control Panel: 2 Pump (2006 - 2009). 2660-100, Underlay: LCD Panel
