Lights: J-200 Series
from $4.93
J-200 Series (2012+) & J-100 Series (2017+)
Footwell Light Assembly 2012+ J-280, J-275, J-245, J-235 Models
309002, Light Body
6541-088, O-Ring: Light Body
309003, Light Nut
6541-553, Housing: LED 3"
6560-246, Incandescent Bulb: 12V
6560-553, Light: LED 3" Daisy
6560-144, Harness: Light 12V 2007.5
2018+ J-210 Models Only
6560-218, Light: LED Multi-Color (Amp)
2007-2017 J-210 Models Only

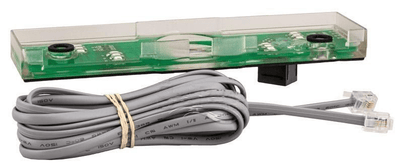

6560-420, Light: LED Multi-color (Phone Jack Connector)
Heater: J-300 Series
from $49.95
J-300 Series (2016+)
North America 60Hz Models6500-412, Replaces 6500-087 Heater LED Models 240V/5.5kW (All J-385, J-375, J-365, J-355, J-345, J-335 Models
6500-420, Heater LED Models: 120V/1kW or 240V/4kW (All J-325, J-315 models)
Export 50Hz Models
6500-405 Heater: 230V/2.7kW (2016+ J-315/J-325 Models)
J-300 Series (2002-2015)
6500-403, Heater: LCD Models 240V/5.5kW (except 2002-2015 J-310/J-315 & 2004 J-325)
6500-063, Heater: 120V/1kW or 240V/4kW (for J3-10/J-315/J-325 convertible models)
6540-034, Adapter: MPT 1/8"x 3/8"Barb, 316SS (J-310/J-325 Freeze Line)
Jacuzzi Heater (2005-2017...
from $217.95
6500-187, 5.5 kW heater for Jacuzzi (and Sundance) 240V LED Models without circulation pump (see compatibility chart below). Includes nuts and gaskets. Replaced 6000-156 below
6000-156, (Discontinued) 5.5 kW heater for Jacuzzi (and Sundance) 240V LED Models without circulation pump (see compatibility chart below). Includes nuts and gaskets.
6000-287, Gasket for union (2 required)
6000-093, Hi-limit disk (hi-limit sensor)
Jacuzzi Compatibility:
Model
Years
J-280*(models w/o circulation pump)
2008-2017
J-275 / J-270*(models w/o circulation pump) / J-245 / J-235
2012-2017
J-230
2005-2012
J-210
2016
J-145
2017
J-135
2017
Jet Assemblies Maxx Power...
from $3.95
1a. 2540-367, Jet Face: MX with Stainless Steel Escutcheon, 2007+
1b. 6540-736, Jet Face: MX Escutcheon without Stainless Steel, 2002- 2006
2. 6540-733, Jet Back: MX, 1" Barb, 2002- 2005
3. 6540-743, Jet Back: MX, 1" Barb with 0.44" Orifice, 2006+
4a. 6541-073, Double O-ring 4.25" (July 2005 and newer)** Not interchangeable with 6540-826
4b. 6540-826, L-Style O-ring (2002-2005) *Limited Stock and discontinued ** Not interchangeable with 6541-073
5. 6540-740, Self-leveling washer *Limited Stock and discontinued
6. 6540-739, Nut *Limited Stock and discontinued
J-400 Conversion Kit
from $2,799.00
These kit components are special ordered , and may be out of stock at the time of order.
This kit is used to convert Jacuzzi J-400 Collection hot tubs that have a J-1000 controller, where the topside display is no longer available.
Note: we cannot provide technical support for the installation procedure and cannot accept returns due to failure of install.
PDF instructions from Jacuzzi
For information on how to use the new topside display, refer to the J-400 (2019) Owner's Manual
Conversion kit can replace the following topside controllers:
Year
Part ID
For model(s)
2013-2015/08
6600-099
J-415, J-425, J-465, J-470, J-480, J-495
2012
6600-405
J-415, J-425, J-465, J-470, J-480, J-495
mid 2009/12-2011
6600-857
J-460, J-465, J-470, J-480
The kit includes:
Part ID
Description
6000-831
6600-379
Panel: LCD J-400 2018/04-2018, 2019 J-415/425. Encrypted. Peel and stick gasket included.
Works with both 2018/04+ encrypted circuit boards, and 2015/09-2018/03 non-encryped boards.
6600-751
Sensor: Assembly Water Temp, 3-pin, long tip.
6472-525
Harness: Hi-Limit, 32" LX 2-pin
6560-199
Cord: MiniDin-6 to XA Connector
6560-755
Light: JHT Status Indication, 12V, 2016
6570-198 x2
Bracket, Controller BLB 4”
6560-909 (2013+)
6560-332 (2013+) x3
Adapter: DCU Expansion
The kit does not include new stereo components:
6500-917
Stereo: SD/JHT 8X5 w/Ext BT Ant
6560-093
Harness, Aquatic to JBL
Lights: J-LX & J-LXL Series
from $30.95
6560-189, Light DCU Mini-DIN, 10 output 2013+ with 5' power cable; Note: includes cable "œhold down"clips on all DCUs shipped after 2/15/14.
6560-022, Light: Dual Pin/ Waterfall 2011
6560-271, Light: Dome Wash JHT 2013+ with Mini-DIN connector (Pillow Accent Lights)
6000-362, Adapter: Mini-DIN to Ribbon connector (adapts older 6560-033 DCU to current2013 JLX Light System Components with Mini-Din connectors)
J-200/J-100 Skimmer Assembly
from $19.96
Notice:
Some parts may not be in stock at time of order. Unfortunately, we cannot provide an ETA for special order items. Items placed as Special order are non-refundable, and orders for special ordered items cannot be cancelled.
Please see our refund policy at https://www.hottubstore.ca/pages/refund-policy for more information.
If a special order item is ordered with other non-special order items, it will delay the entire order.
Compatibility:
2005+ J-200 Series
2015+ J-100 Series
A1. 6000-741, Weir - This model has been discontinued, replaced by 6541-017 *Special order
A2. 6541-017, Weir: EL Filter Assembly, 11/16/17+ *Special Order
B. 6000-740, BasketC. Replacement filter PRB50-IN or PRB25-IND. 6541-016, Canister Assembly with Nut (also compatible with 2018+ Sundance 680 series hot tubs except Tacoma)E. 6000-128, Double O-Ring, 6.77" I.D. EDPM
Heater: J-500 Series
from $433.95
J-500 Series (2015+)
Export 50Hz Models6500-844 Heater: Plastic 230V/2.7kW JHT
North America 60Hz Models6500-843, Heater: Plastic 240V/5.5kW JHT
Model
Years
J-585 / J-575
2015 - 2021
J-495 / J-475 / J-425
Sept 1, 2015 - 2022+
J-485 / J-475
2019 - 2022+
J-470
Sept 1, 2015 - 2018
J-465
Sept 1, 2015 - 2016
J-445 / J-435
2018-2022+
J-415
Sept 1, 2015 - 2019
Heater: J-200 Series
from $231.95
J-200 Series
All North America 60Hz Models without Circulation Pumps6500-412, Heater LED Models 240V/5.5kW (All J-385, J-375, J-365, J-355, J-345, J-335 Models.Heater 240V/5.5kW for 2013-2017 J-200 Models w/o Circ. Pumps (Nuts And Gaskets Included)
6500-085, Heater: 120V/1kW or 240V/4kW, 15" 825 Incoloy for 2018 to Oct 12, 2020 J-210, J-215, J-225 Convertible Models that have a pressure switch
6000-338, Heater: 120V/1kW or 240V/4kW, 15"?, for 2005-2017 J-210, J-215, J-225 Models (Nuts And Gaskets Included)
Fuses
from $4.46
6660-105 - 30 amp fuse
6000-025 - 20 amp fuse
2000-083 - 10 amp fuse (blower)
6660-106 - 10 amp fuse (blower)
2000-081 - Stereo fuse (10 amp)
6000-348 - 5 Amp Fuse
6760-119 - LCD Transformer fuse (4 amp)
6760-115 - Circulation Pump (2A)
6660-112 - LCD PCB fuse (1.25 amp)
6760-120 - LED Trans Mini fuse (1.5 amp)
6000-288 - 1/4 Amp Fuse
6000-349 - 1/4 Amp Fuse
Jet Assemblies: Classic W...
from $2.95
Compatible with:
J-280 2014-2014
2540-531, Jet Face: 500s Rev.2 Whirlpool GPGY w/SS Escutcheon And Diffuser Face (Used 6/17/14+)
2540-529, Jet Face: 500s Whirlpool (ST Jet) w/SS Escutcheon 2B 2540-527, Jet Face: 500s Whirlpool (ST Jet) No Escutcheon (Grey)
6541-578, Jet Face: Classic PRO Turbo
6541-642, Jet Back: 500s (Nut And O-Ring Included)
6541-645, O-Ring: 500s
6541-644, Washer/Nut: 500s (Self Leveling)
6541-643, Nut: 500s Jet Back
Sundance Spas Pillows 680...
$68.95
Note: This is a special order pillow. Delivery times are delayed.
6472-970
Sundance Edison 2013+, McKinley 2014+, Peyton 2012+, Ramona 2014+
Manifolds: Air
from $0.50
6540-780, Manifold: Air 8 3/8" Barb x 1" Slip (End Cap And 3 Air Port Plugs Included)
6540-781, Manifold: Air 10 3/8" Barb x 1.5" Slip (Blind End)
6540-349, Manifold: Air 6 3/8" Barb x 1" Slip
6540-077, Manifold: Air 4 3/8" Barb x 1" Slip (2 Air Port Plugs Included, JWB# #H200000)
6540-130, Manifold: Air 2 3/8" Barb x 1" Slip
6540-101, Plug: Spigot 1/4" (Air Manifold)
