ClearRay Replacement Bulb
$155.95
$203.79
The ClearRAY system uses UV-C technology to neutralize waterborne pathogens, rendering them useless. ClearRAY will also help reduce the amount of sanitizer you use in your hot tub, providing you with clean, fresh clear water.
For the cleanest, softest water possible. No more drying out, no more red-eye.
The ClearRay bulb needs to be replaced once a year. Detailed instructions on replacing your ClearRay bulb can be found here.
Replacement recommended every 12 months.

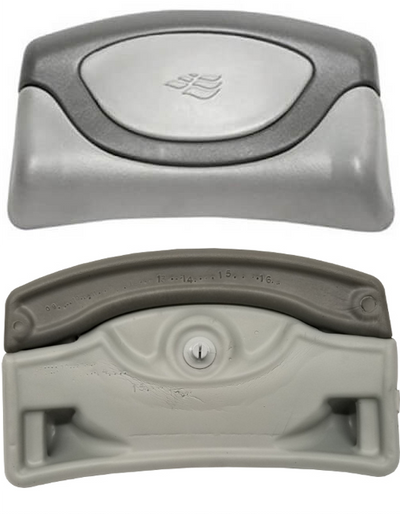

Pillow: Jacuzzi J-300 Collection
from $54.95
$259.80
Replacement Jacuzzi J-300 Collection Pillow.
Complete with pillow and pillow insert.
For the insert & emblem parts only see here
2020 Massage Pillow Assembly (2472-136): Massage ("Hydrosoothe") Pillow complete assembly for 2020 J-300 series.Contains the following items:
6541-336: Inner Ring: Pillow, Massage, J-300 2020
6541-361: Outer Ring: Pillow, Massage, J-300 2020
6541-403: Bushing: Pillow, J-300 2020 x2
6540-547: Nut: .5-13 Nylon Wing x2
2020+ Massage Pillow Fr Assembly (2472-014): Massage ("Hydrosoothe") Pillow complete assembly for 2020+ J-300 series.Contains the following items:
6455-036: Pillow, Massage, J-300
6541-427: Pillow, Inner Ring FR
6541-428: Pillow, Outer Ring FR
6541-430: Pillow, Snap FR x2
6541-429: Pillow, Threaded Stud x2
6541-432: Gasket x2
6540-547: Nut, 5-13 Nylon Wing x2
Pillow: Jacuzzi J-400 Collection
from $10.95
$259.80
Jacuzzi® pillows for J-400™ Collection hot tubs.
Please Note: pillows do not include mounting hardware or sliders.
2570-401, Slider: J-400 Series Pillows (for 2472-820 and 2472-822)
2000-263, Oval Pillow Insert, Logo (for 2472-820)
J-400™ pillow compatibility by year:
J-495™
2020+
6455-031
2472-007
2012-2019
2472-820
Slider 2570-401 required - not included
J-485™
2019+
6455-031
2472-007
J-480™
mid 2009-2018
2472-820
Slider 2570-401 required - not included
2006-mid 2009
2472-822
Slider 2570-401 required - not included
J-475™
2019+
6455-031
2472-007
J-470™
mid 2009-2018
2472-820
Slider 2570-401 required - not included
2006-mid 2009
2472-822
Slider 2570-401 required - not included
J-465™
mid 2009-2017
2472-820
Slider 2570-401 required - not included
2007-mid 2009
2472-822
Slider 2570-401 required - not included
J-460™
mid 2009-2012
2472-820
Slider 2570-401 required - not included
2006-mid 2009
2472-822
Slider 2570-401 required - not included
J-445™
Oct 2017+
6455-031
2472-007
J-435™
Oct 2017+
6455-031
2472-007
J-425™
2020+
6455-031
2472-007
mid 2009-2019
2472-820
Slider 2570-401 required - not included
J-415™
mid 2009-2019
2472-820
Slider 2570-401 required - not included
Diverter Valves: J-400 Series
from $0.81
J-LX & J-LXL Series (2011+)
Assembly Used on 2020+ J-425 & J-495, 2019+ J-485 & J-475 and 10/2017+ J-445 & J-435
6540-439, Knob: Diverter J-445, 2017
6540-455 Nut: Diverter J-400 (Grey)
6540-865, O-Ring: Diverter Cap
6540-868, O-Ring: Diverter Stem, 0.591" I.D.
6540-550, O-Ring: Diverter Gate, 2.175 I.D.
6540-568 (2/16/18+): Gate: T-Valve, 2018 (6540- 550 O-Ring Purchased Separately)
6541-014, Fitting: Wall T-Valve J-400 (Clear)
6560-320, Light ring: Diverter Top HT This item is not stocked and made to order. Final sale (not eligible for a refund).
6560-312, Nut: J400 (Clear)
6540-560 (2/16/18+), Body: T-Valve 2018
Assembly Used on All other 2016+ J-400 Models
2540-533, Knob: Diverter (2007+ J-400/J-300)
20090-001, Knob: Diverter (2006 J-400 Series)
6540-729, Cap: Diverter (All 2002+ Models)
6540-865, O-Ring: Diverter Cap
6540-868, O-Ring: Diverter Stem, 0.591" I.D.
6540-550, O-Ring: Diverter Gate, 2.175 I.D.
6540-568 (2/16/18+): Gate: T-Valve, 2018
6541-969, Fitting: Wall Diverter
6540-968, Nut: Diverter
6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967
Pillow: Jacuzzi J-200 Collection
from $5.51
$159.80
Jacuzzi J-200 Series pillows for all years and models.
Please note: pillows for older models may not be in stock at the time of ordering and shipping may be delayed.
6455-005, Receptacle: Pillow Socket, Snap-in
6000-105*, Washer: Sundance/Jacuzzi Pillow Cup *Installed behind pillow socket cup. Used on 2008+ Dover; 2007+ 780 Hamilton, Chelsee, Certa, and Camden; 2007+ 680 Burlington, Hartford, Hawthorne, and Tacoma; All 2000-2002 SWEETWATER® Models.
6541-687, Grommet (2 per pillow) for pillow 2472-015 (early 2023+ J-200 models), requires 6540-547
6540-547, Nut (2 per pillow) for pillow 2472-015 (early 2023+ J-200 models)
Compatibility
2472-828
6455-468
6472-755*
2472-015
J-285
-
-
-
early 2023
J-280
All Years
-
-
-
J-275
2012+
-
-
early 2023
J-270
All Years
-
-
-
J-245
2012+
-
-
early 2023
J-235
2012+
-
-
early 2023
J-230
2008+
2005-2007
-
-
J-225
-
-
2016+
early 2023
J-220
-
2005-2007
-
-
J-215
-
-
2016+
early 2023
* Replaces 2472-831
Temperature Sensors
from $55.95
Note: Some parts may not be in stock at the time of ordering and shipping may be delayed.
J-300 LED Display Models (2002-2015) J-200 Series (2005-2017), J-100 Series (2017 Only), Del Sol Series (All Years)
6600-166, Sensor: Temp Sensors with Curled Finger Connectors, 12' (3.7m)
J-400/J-1000 Series
6600-181, Sensor: Temp Sensors with DSMT Connector, 8' (2.4m) Cable
J-400 Series (2006-2009)
6600-167, Sensor: Temp Sensors with Box End Connectors, 12' (3.7m) Cable; Note: Also used in 2002-2003 J-350, J-360, J-370, J-380, 2004-2006 J-355, J-365, J-375, J-385, and all 2006-2009 J-400 models.
J-400 Series (2010-2015)
6600-179, Sensor: Hi-limit J-400 Series (DSMT Connector), 37"(94cm) Cable
J-500 Series (2015+), J-400 Series (09/2015+), J-300 Series (2016+), J-200 Series (2018+), J-100 Series (2018+)
6600-751, Sensor: Assembly Water Temp, 3-Pin
O-RING for 6600-166 & 6600-167
6540-228
6600-551, Long-tip Water Temperature Sensor, 3-Pin connector, Glass Bead Thermistor. Can replace 6600-533.
CoverMate 1 Replacement Parts
from $16.00
Has your cover lifter become damaged or ruined? We have replacement parts that can restore your cover lifter and have it working properly agian. Individual part information and descriptions are below:
Pivot Arm - Length: 26"; Direct replacement for the original bar on the CoverMate I - Part # 100004
Extended Pivot Arm - Length: 33"; Direct replacement for extended arm on the CoverMate I - Part # 100591
Support Arm - Direct replacement for support arm on the CoverMate I
Coupler - Direct replacement for coupler on the CoverMate I and CoverMate 3
Plastic Bracket Kit - The Bracket Kit includes the Plastic Left & Right Brackets, and Screw Kit.
Plastic Bracket - This is the replacement plastic bracket - Part # 100021
Plastic Screw Kit - All the screws, bolts and plastic screw caps to completely replace broken or misplaced parts you may need on your CoverMate 1 cover lifter.
Foam Grip - Part # 100002
Bracketless LX 56 Frame Pump Parts (5/2009+)
from $0.50
J-LX/J-LXL/J-500/J-400/J-300/J-200/J-100 North America 60Hz Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)
Compatible Pumps (LX Version; Not Emerson)
6500-352S
6500-365S
6500-367S
6500-363S
6500-845S
6500-090S
6500-357S
6500-232 Union Assembly, straight (o-ring included)
6500-037 Union Assembly, 45 degree (o-ring included)
6000-645 Union o-ring
6500-601 Screw, Self-Tapping (1 ea)
6500-602 Drain Plug
6500-603 Drain Plug O-Ring
6540-171 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (replaced 6540-030)
6540-263 O-Ring, 0.434"ID x 0.682" OD x 0.125"
6500-604 Housing, Front (Volute) 56FR
6500-605 Housing O-Ring
6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors)
6500-281 Seal-Stationary ASM (PS200)
6500-606 Housing Rear 56FR
6500-613 Run Capacitor 2.5HP (for 1 & 2 speed LX motors ONLY)
CoverMate 3 Replacement Parts
from $16.88
Has your cover lifter from Cover Mate become damaged or ruined? We have replacement parts that can restore your cover lifter and have it working properly again. Individual part information and descriptions are below:
Pivot Arm - This arm is 31"and is a direct replacement of your original bar. The pivot arm is the bar that connects the cover lifter to the bracket mounted to the hot tub.
38" Extended Pivot Arm for CoverMate III
48" Extended Pivot Arm for CoverMate III
Right and Left Support Bar - direct replacement of the original right or left arm
Coupler - direct replacement of the original coupler
Plastic Screw Kit - has all the screws, bolts, and plastic screw caps you need completely replace currently broken or misplaced parts.
Left and Right Plastic Bracket - direct replacement of the original bracket
DeckMount L Bracket - Bracket kit is used to mount the Leisure Concepts CoverMate III cover lifter to your deck
Small Black Dome Caps - Package of 50
Diverter Valves: J-300 Series
from $12.95
J-300 Models 2020+
6541-344, Knob: Diverter, J-300 2020
6540-434, Nut: Diverter HT
6540-865, O-Ring: Diverter Cap
6540-868, O-Ring: Diverter Stem, 0.591" I.D.
6540-550, O-Ring: Diverter Gate, 2.175 I.D.
6540-568, Gate: T-Valve, 2018
6541-969, Fitting: Wall Diverter
6540-968, Nut: Diverter
6540-560, Body: T-Valve 2018
Assembly Used on All other 2016+ J-300 Models
2540-533, Knob: Diverter (2007+ J-400/J-300)
20090-001, Knob: Diverter (2006 J-400 Series)
6540-729, Cap: Diverter (All 2002+ Models)
6540-865, O-Ring: Diverter Cap
6540-868, O-Ring: Diverter Stem, 0.591" I.D.
6540-550, O-Ring: Diverter Gate, 2.175 I.D.
6540-568 (2/16/18+): Gate: T-Valve, 2018
6541-969, Fitting: Wall Diverter
6540-968, Nut: Diverter
6540-560 (2/16/18+), Body: T-Valve 2018, replaced 6540-967
Waterfall: J-300 Series
from $2.03
J-300 Series
2016+
6560-905, 2016+ Waterfall (12VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket purchased separately below.
6541-068, 2014+ Waterfall Cover;
2540-906, Gasket: Waterfall
2560-904, Nut: Waterfall
2014/2015
6560-125 2014-2015 Waterfall (15VDC): Kit with Mini-DIN Connector (Body, Cover And Nut Included); Note: Gasket Purchased Separately Below.
6541-068, 2014+ Waterfall Cover;
2540-906, Gasket: Waterfall
2560-904, Nut: Waterfall
2007-2012
2540-904, Waterfall: Complete Kit (no longer available)
2540-905, Waterfall cover (no longer available)
2540-906, Waterfall gasket
2560-904, Waterfall nut
CoverMate Replacement Shocks
from $33.75
101632 Locking replacement shock for CoverMate 3
101510 Non-locking replacement shock for CoverMate 3
Jet Assemblies J-200 Assemblies
from $1.02
1. Classic Direct - 200s Jet (DX Jet)
2. Classic Euro - 200s Jet (DL Jet)
3. Classic Pulsator - 200s Jet (DV Jet)
1a. 2540-261, Jet Face: 200s Micro (DX Jet, Grey)
1b. 2540-265, Jet Face: 200s Micro (DX Jet, Stainless Steel)
2a. 2540-251, Jet Face: 200s Accu Pressure (DL Jet, Grey)
2b. 2540-255, Jet Face: 200s Accu Pressure (DL Jet, Stainless Steel)
3a. 2540-241, Jet Face: 200s Pulsator (DV Jet, Grey)
3b. 2540-245, Jet Face: 200s Pulsator (DV Jet , Stainless)
4. 6541-612, Jet Back: 200s (Nut And O-Ring Included)
5. 6540-854, O-Ring: 200s
6. 6541-614, Washer: 200s (Self Leveling)
Flow Switches
from $88.95
J-400/J-1000 Series (2010-08/2015)
6560-651, Switch: Flow Switch Assembly with 5' (1.5m) Cable, DSMT; Note: For J-400/J-1000 Systems Only
J-LX & J-LXL (2011+), J-500 Series (2015+), J-400 (09/2015+), J-300 Convertible Models (2016+)
2560-040, Switch: Flow Vert Heater with a Curled finger connectors
J-400 Series (2006-2009)
6560-646, Switch: Flow Switch Assembly with 5' (1.5m) Cable And Box End Connectors
J-300: Oval Pillow Insert and Emblem
from $32.95
This is for the pillow insert & emblem parts only - the full pillows can be found here
Oval pillow insert and emblem for J-300 series hot tubs.
6455-488: Years 2014+
2455-104: Years 2007-2013
6455-007: Years 2004-2006
You can find your Jacuzzi serial number, model and model year on the product tag often found inside the main equipment bay. On older tubs it may be found on the spa pack, the frame, or sometimes on the floor behind the back cabinet panel. More information can be found here: Where to find my Jacuzzi Serial number.
