Cabinet Panels & Screws

6570-393, #8 x 1-5/8 Pan Head Stainless Steel (Gray) 6570-394, #8 x 1-5/8 Pan Head Stainless Steel (Mahogany) 6570-395, #8 x 1-5/8 Pan Head Stainless Steel (Teak)

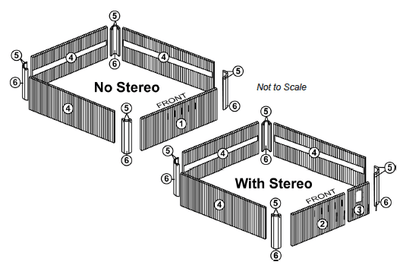

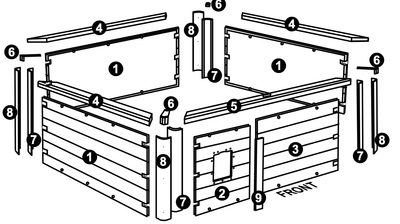

These J-200 Synthetic Skirt panels are available in Coastal/Silverwood, Bordeaux/Roasted Chestnut and Teak finish. These panels are special order and once ordered are non-refundable. Ensure you order the correct skirt or ask for assistance. Panels are not in stock at time of order. Required skirt order information: To ensure proper panel fit when ordering, you MUST measure the existing panel and/or top/bottom rails and include the dimensions on your order. Replacement panels are not predrilled or cut for drain and power inlets. Please place measurements in the "Note" section of the checkout. 2013-2016 J-200 Synthetic Skirt Panels  Complete Set for Bordeaux/Roasted Chestnut:     No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427M 8104-428M 8104-430M 8104-426M 6551-730M 6551-732M J-275 8104-427M 8104-428M 8104-430M 8104-426M 6551-730M 6551-732M J-245 8104-402M 8104-400M 8104-407M 8104-406M 6551-730M 6551-732M J-235 8104-402M 8104-400M 8104-407M 8104-406M 6551-730M 6551-732M   Complete Set for Coastal/Silverwood:   No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427G 8104-428G 8104-430G 8104-426G 6551-730G 6551-732G J-275 8104-427G 8104-428G 8104-430G 8104-426G 6551-730G 6551-732G J-245 8104-402G 8104-400G 8104-407G 8104-406G 6551-730G 6551-732G J-235 8104-402G 8104-400G 8104-407G 8104-406G 6551-730G 6551-732G   Complete Set for Teak:   No Stereo Stereo          Front Panel(1) Front Panel(2) Front Panel(3) Side-Rear Panel(4) Outer Corner Piece (5) Inner Corner Piece (6) J-280 8104-427K 8104-428K 8104-430K 8104-426K 6551-730K 6551-732K J-275 8104-427K 8104-428K 8104-430K 8104-426K 6551-730K 6551-732K J-245 8104-402K 8104-400K 8104-407K 8104-406K 6551-730K 6551-732K J-235 8104-402K 8104-400K 8104-407K 8104-406K 6551-730K 6551-732K

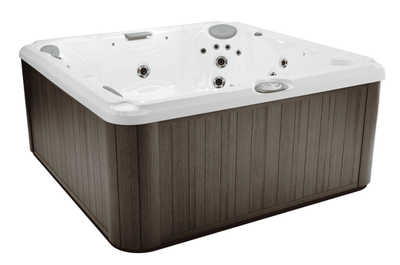

Available Finishes: Coastal Silverwood, Bordeaux Roasted Chestnut, and Teak. Please note: These panels are made to order and are not stocked. Because of this, they are non-refundable once purchased. If you’re unsure which model or finish you need, we’re happy to help. Fit & Features: To ensure a proper fit, please measure your existing panels and include those details in the “Notes” at checkout. Panels are not pre-cut for power or drain inlets. Panel Sets: Each includes front, back, trim, and corner pieces. Trim panels (6–7) and corner pieces (8–9) may require trimming on arrival. Door latch hardware included where applicable. Coastal Silverwood Panel Set Model 1 (Front) 2 (Back) 3 (Side) 4 (Side Panel) 5 (Rear Panel) 6 (Front/Rear Trim) 7 (Side Trim) 8 (Outside Corner) 9 (Inside Corner) J-280 / J-275 8104-451G** 8104-452G*** 8104-453G*** 8104-454G 8104-454G 6551-035G 6551-035G 6551-730G 6551-732G J-245 / J-235 8104-455G** 8104-456G*** 8104-457G*** 8104-458G 8104-458G 6551-036G 6551-036G 6551-730G 6551-732G J-225 8104-451G** 8104-460G*** 8104-461G*** 8104-462G 8104-463G 6551-037G 6551-036G 6551-730G 6551-732G J-215 8104-464G** 8104-465G*** 8104-466G*** 8104-467G 8104-468G 6551-037G 6551-038G 6551-730G 6551-732G * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5 Bordeaux Roasted Chestnut Panel Set Model 1 (Front) 2 (Back) 3 (Side) 4 (Side Panel) 5 (Rear Panel) 6 (Front/Rear Trim) 7 (Side Trim) 8 (Outside Corner) 9 (Inside Corner) J-280 / J-275 8104-451M** 8104-452M*** 8104-453M*** 8104-454M 8104-454M 6551-035M 6551-035M 6551-730M 6551-732M J-245 / J-235 8104-455M** 8104-456M*** 8104-457M*** 8104-458M 8104-458M 6551-036M 6551-036M 6551-730M 6551-732M J-225 8104-451M** 8104-460M*** 8104-461M*** 8104-462M 8104-463M 6551-037M 6551-036M 6551-730M 6551-732M J-215 8104-464M** 8104-465M*** 8104-466G*** 8104-467M 8104-468M 6551-037M 6551-038M 6551-730M 6551-732M * Must be trimmed to fit** Can be replaced with panel #5*** All models after July 2019 with internal stereo use rear panel #5

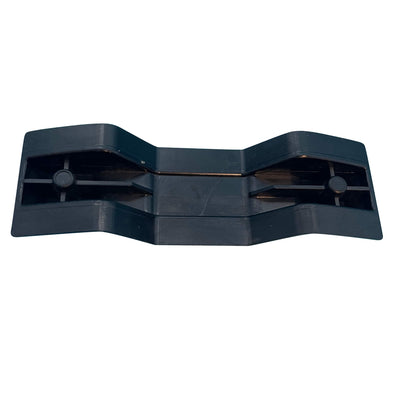

*This product is special order - please expect an additional delay receiving this part. 2020+ J-300 6541-362 Mount R11; Top bracket on corner cabinet panel. Attach to the panel with 6000-007. 6541-161 Bottom bracket on the frame corner 6570-439 Metal bracket clamp on bottom of corner cabinet panel. 6541-363 Mount R11; Bottom bracket on corner cabinet panel. Attach to the panel with 6000-007.   2019+ J-435, J-445, J-475, J-4852020+ J-425, J-495 6541-164 Top mount for corner cabinet panel. Attach to the panel with 6000-007. 6541-161 Bottom bracket on the frame corner 6570-439 Metal bracket clamp on the bottom of corner cabinet panel. 6541-165 Bracket: Bottom Mount, Corner Panel. Attach to the panel with 6000-007.

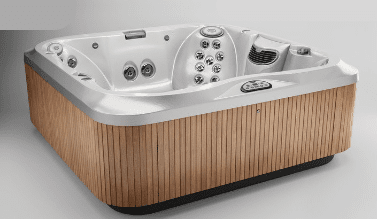

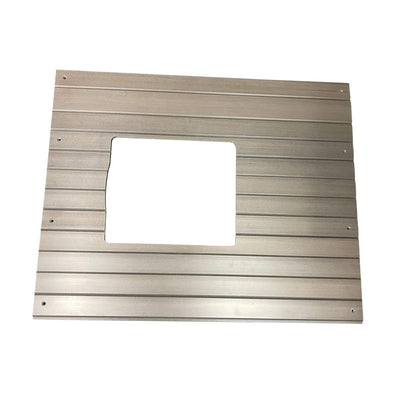

Available Finishes: Bordeaux (Roasted Chestnut), Coastal (Silverwood), and Teak. Please note: These panels are custom-ordered and not stocked, so they’re non-refundable once placed. If you're unsure about your model or finish, we’re happy to help before you order. Fit matters: To ensure your replacement fits properly, please measure your existing panels and rails. Panels are not pre-drilled for drains or power inlets — just leave your measurements in the "Notes" section at checkout. Set Details (Bordeaux shown): Includes front, side, and corner panels. Trim piece (7) and inside corner (8) may need a bit of cutting during install. Door latch hardware is included. Model No StereoFront (1) StereoFront (2) StereoFront (3) Side Panel(4) Rear Panel(5) Corner Piece(6) Front Trim(7) Inside Corner(8) J-385 / J-375 8105-449M 8105-444M 2016+: 8105-451M2014–2015: 8105-445M 8105-448M 8105-450M 8105-443M 6551-019M 6551-605M J-365 / J-355 8105-449M 8105-444M 2016+: 8105-451M2014–2015: 8105-445M 8105-442M 8105-441M 8105-443M 6551-019M 6551-605M J-345 / J-335 8105-568M 8105-565M 2016+: 8105-570M2014–2015: 8105-566M 8105-563M 8105-563M 8105-567M 6551-019M 6551-605M J-325 8103-847M 8103-848M 2016+: 8104-925M2014–2015: 8103-846M 8103-844M/G 8103-443M 8103-845M 6551-019M 6551-605M J-315 8104-917M 8104-918M 2016+: 8104-924M2014–2015: 8104-919M 8104-915M 8104-916M 8104-920M 6551-019M 6551-605M Note: Trim piece 7 and inside corner piece 8 may require cutting after delivery. * Door latch hardware included. Panels are not pre-drilled or cut for power inlets.

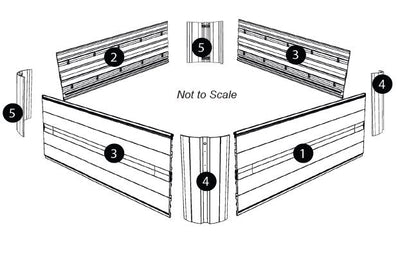

Available Finishes: Brushed Gray, Smoked Ebony, and Modern Hardwood. Important Note: These panels are custom-ordered and non-refundable. If you're unsure about your model or finish, we’re happy to help before you order. Fit Matters: To ensure your replacement fits properly, please measure your existing panels and rails. Corner panels are not pre-drilled for the lighting kit. Brushed Gray – 2020+ J-300 ProFinish Panels Model 1 (Front) 2 (Back) 3 (Side) 4 (Front Corner) 5 (Back Corner) J-385 8105-302U 8105-302U 8105-302U 8105-318U 8105-318U J-375 8105-302U 8105-302U 8105-302U 8105-318U 8105-318U J-365 8105-302U 8105-302U 8105-307U 8105-318U 8105-318U J-355 8105-302U 8105-302U 8105-307U 8105-318U 8105-318U J-345 8105-301U 8105-301U 8105-301U 8105-317U 8105-317U J-335 8105-301U 8105-301U 8105-301U 8105-317U 8105-317U J-325 8105-294U 8105-294U 8105-300U 8105-312U 8105-312U J-315 8105-294U 8105-294U 8105-299U 8105-312U 8105-312U Smoked Ebony – 2020+ J-300 ProFinish Panels Model 1 (Front) 2 (Back) 3 (Side) 4 (Front Corner) 5 (Back Corner) J-385 8105-302Y 8105-302Y 8105-302Y 8105-318Y 8105-318Y J-375 8105-302Y 8105-302Y 8105-302Y 8105-318Y 8105-318Y J-365 8105-302Y 8105-302Y 8105-307Y 8105-318Y 8105-318Y J-355 8105-302Y 8105-302Y 8105-307Y 8105-318Y 8105-318Y J-345 8105-301Y 8105-301Y 8105-301Y 8105-317Y 8105-317Y J-335 8105-301Y 8105-301Y 8105-301Y 8105-317Y 8105-317Y J-325 8105-294Y 8105-294Y 8105-300Y 8105-312Y 8105-312Y J-315 8105-294Y 8105-294Y 8105-299Y 8105-312Y 8105-312Y Modern Hardwood – 2020+ J-300 ProFinish Panels Model 1 (Front) 2 (Back) 3 (Side) 4 (Front Corner) 5 (Back Corner) J-385 8105-302D 8105-302D 8105-302D 8105-318D 8105-318D J-375 8105-302D 8105-302D 8105-302D 8105-318D 8105-318D J-365 8105-302D 8105-302D 8105-307D 8105-318D 8105-318D J-355 8105-302D 8105-302D 8105-307D 8105-318D 8105-318D J-345 8105-301D 8105-301D 8105-301D 8105-317D 8105-317D J-335 8105-301D 8105-301D 8105-301D 8105-317D 8105-317D J-325 8105-294D 8105-294D 8105-300D 8105-312D 8105-312D J-315 8105-294D 8105-294D 8105-299D 8105-312D 8105-312D

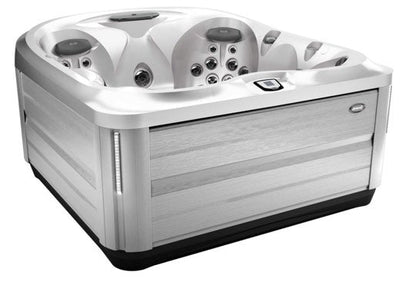

Available Finishes: Modern Hardwood, Brushed Gray, and Smoked Ebony. Please note: These panels are made to order and are not stocked. Because of this, they are non-refundable once purchased. If you’re unsure which model or finish you need, we’re here to help. Fit & Features: To ensure a proper fit, please measure your existing panels and include those details in the “Notes” at checkout. Panels are not pre-cut for power or drain inlets. Panel Sets: Each includes front, back, side, and corner pieces. Some configurations vary based on corner lighting (see tables below). Door latch hardware is included. Brushed Gray Panel Set Model 1 (Front) 2 (Back) 3 (Side) 4 (Front Corner) 5 (Back Corner) Without Light With Light Without Light With Light J-4252020+ only 8105-320U 8105-322U 8105-321U 8105-324U — 8105-323U — J-435 8105-092U 8105-101U 8105-091U 8105-088U* 8105-088UL** 8105-087U* 8105-087UL** J-445 8105-092U 8105-101U 8105-091U 8105-088U* 8105-088UL** 8105-087U* 8105-087UL** J-475 8105-084U 8105-086U 8105-085U 8105-088U* 8105-088UL** 8105-087U* 8105-087UL** J-485 8105-084U 8105-086U 8105-085U 8105-088U* 8105-088UL** 8105-087U* 8105-087UL** J-4952020+ only 8105-274U 8105-289U 8105-279U 8105-088U* 8105-088UL** 8105-087U* 8105-087UL** *Without corner lights included.**With corner lights included. Smoked Ebony Panel Set Model 1 (Front) 2 (Back) 3 (Side) 4 (Front Corner) 5 (Back Corner) Without Light With Light Without Light With Light J-4252020+ only 8105-320Y 8105-322Y 8105-321Y 8105-324Y — 8105-323Y — J-435 8105-092Y 8105-101Y 8105-091Y 8105-088Y* 8105-088YL** 8105-087Y* 8105-087YL** J-445 8105-092Y 8105-101Y 8105-091Y 8105-088Y* 8105-088YL** 8105-087Y* 8105-087YL** J-475 8105-084Y 8105-086Y 8105-085Y 8105-088Y* 8105-088YL** 8105-087Y* 8105-087YL** J-485 8105-084Y 8105-086Y 8105-085Y 8105-088Y* 8105-088YL** 8105-087Y* 8105-087YL** J-4952020+ only 8105-274Y 8105-289Y 8105-279Y 8105-088Y* 8105-088YL** 8105-087Y* 8105-087YL** *Without corner lights included.**With corner lights included.

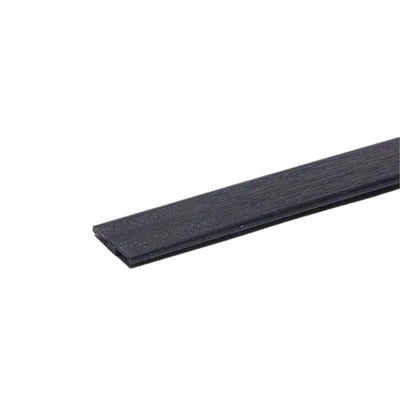

  1.5" Self-drilling screws - Grey  1.5" Self-drilling screws - Black   2" Gap Lap screw - Grey

Top Rail Bracket - 6551-053M Part #6

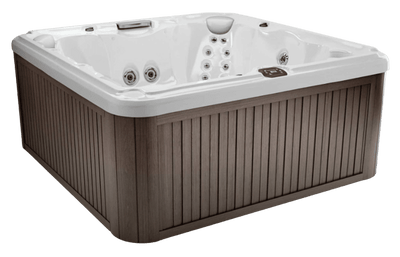

These panels are special order and once ordered are non-refundable. Ensure you order the correct skirt or ask for assistance. Panels are not in stock at time of order. Order requires measurements of existing cabinet piece. Please provide measurements in your order note during checkout to avoid delays. 2017+ Sundance 680 Series Panels Complete set in gray: Please Note: Mahogany and Teak available on request. *Replacement panels are not pre-drilled or cut for drain or power. **Pre-drill a countersink hold when using a flat head screw Model Edison Peyton McKinley Ramona Used until Nov 2019 1 - Front 8104-473G 8104-469G Used Dec 2019+ 2 - Front 8104-476G 8104-472G Used until Oct 2019 (with stereo) 4 - Front (left) 8104-474G 8104-470G 5 - Front (right) 8104-475G 8104-471G 3 - Side 8104-476G 8104-472G 6 - Corner edge 6551-730G 7 - Corner center 6551-732G 8 - L channel 6551-035G

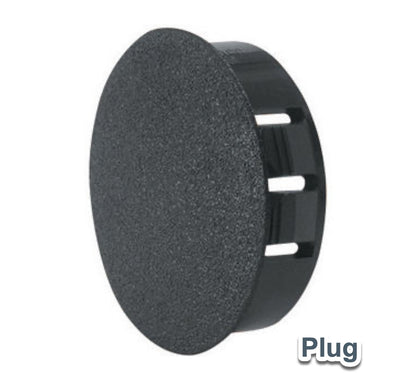

1.375" Plastic plug for electrical access hole 1.375" Universal bushing for electrical access

6570-124, Magnetic Catch (Mortise Mount) for skirt on 2014+ J-300 and 2015+ J-400 models.Note: Four to six used on each spa (varies by model) -- used on the wood frame behind the front skirt panel.    6570-154, Front door skirt magnetic catch keeper bracket (plated steel) on 2014+ J300 models.     6570-184, Push button door latch on 2014+ J-300 models         6570-128, 0.85" Diameter Washer (plated steel) used on front skirt door on 2014+ J-300 models.

4010204

Heat-reflecting insulation made for the coldest winters.  6720-132, SmartSeal Insulation (sold per foot)
