Air Components: J-200 Series
from $2.19
J-200 Series Air Components (2005+)
Compatible Models:
J-275, J-245, J-235, J-210 (2012+)
J-270, J-280 (2007+)
J-230 (2008+)
J-225, J-215 (2017+)
2540-281, Control: Air with Knob
6541-284, Manifold: Air Control Jacket
6541-282, Nut: Air Control (Not Shown)
6541-283, Gasket: Air Control (Not Shown)
Air Components: J-300 / J-LX Series
from $0.37
Air control valves are available for sale for the J-LX hot tub and the J-LXL hot tub. Individual air control components and their specifications are listed below:
J-LX & J-LXL Air Control Valve (2011+) J-300 Air Control Valve (2007+)
6541-142, Control: Air Toggle Switch

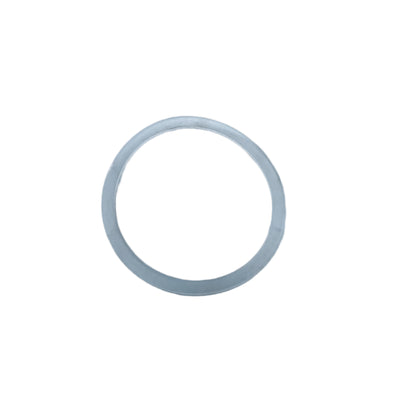

6541-143, Gasket: Toggle Outer Shell
6541-144, O-Ring: Toggle Inner Shell

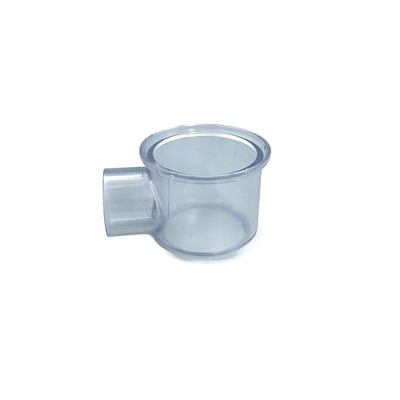

6540-375, Manifold: Air Control Jacket
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
J-300 Air Control Valve (2002-2006)
Air control valves are available for sale for the J-300 Hot Tub Series. Individual air control components and their specifications are listed below:
6540-914, Control: Air Push Button
6540-913, Gasket: Push Button Air Control
6540-522, O-Ring: Push Button Air Control
6540-912, Manifold: Push Button Air Control
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
J-LX/J-LXL Air Bleed Line Fitting (2011+) J-300 Air Bleed Line Fitting (2005+)
6540-252, Nut: Air Injector
6540-228, O-Ring: EPDM 0.662" ID x 0.210"
6541-263, Injector: Air PVC Gray
Air Components: J-400 and J-500 Series
from $0.57
Air control valves are available for sale for the J-400 Series by Jacuzzi® Hot Tub. The air control valve is suitable for all hot tub models, but the part number will change depending on the model: individual air control components and their specifications are listed below:
J-400 Air Components (2006+)
Air Control Valve (All J-435, J-445, J-475, J-485, & 2020+ J-425, J-495)
6541-142, Control: Air Toggle Switch
6541-143, Gasket: Toggle Outer Shell
6541-144, O-Ring: Toggle Inner Shell
6540-375, Manifold: Air Control Jacket
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
Air Control Valve (All other J-400 Models)
20101-001, Knob: Air Valve
6540-377, Control: Air Body And Stem
6540-522, O-Ring: EPDM, 1.64" ID x 0.163"
6540-375, Manifold: Air Control Jacket
6540-376, Nut: Air Control
6000-179, Knob Stem
6000-016, Cup (Long)
6000-029, O-Ring
Filter/Skimmer Air Bleed Line
20216-001, Check Valve: 3/4" Air
6540-024, Adapter: 1/2" Spigot x 3/8" Barb
6570-491, Clamp: Metal Hose (Black)
IX Jet Air Bleed Check Valve
20216-001, Check Valve: 3/4" Air
6540-065, Adapter: 1" Spigot x 3/4" Barb
6570-033, Clamp: 27mm
J-400 Air Bleed Line (2009+)
6540-252, Nut: Air Injector
6540-228, O-Ring: EPDM 0.662" ID x 0.210"
6541-263, Injector: Air PVC Gray
J-500 Series Air Components (2015+)
6541-142, Control: Air Toggle Switch
6541-143, Gasket: Toggle Outer Shell
6541-144, O-Ring: Toggle Inner Shell
6540-375, Manifold: Air Control Jacket
6540-911, Nut: Push Button Air Control
6540-910, Elbow: Push Button Air Control
J-500 Air Bleed Line Fitting (2015+)
6540-252, Nut: Air Injector
6540-228, O-Ring: EPDM 0.662" ID x 0.210"
6541-263, Injector: Air PVC Gray
Aqua-Flo "XP2" Series Pump Parts
from $0.41
Description
Replacement parts for the following Jacuzzi and Sundance Spas pumps:
6500-901
6500-902
6500-903
Compatibility Note: These parts are not compatible with pump 6500-824 used between March 2007 and August 2007.
Details
6000-031 - 2" Split Nut
6500-232 - Union Assembly (straight)
6500-037 - Union Assembly (45°)
6000-047 - Drain Plug
6000-204 - Drain Plug O-Ring
6500-822 - 8-32x5/8 Stainless Steel Screw
6500-829 - Housing: Volute plate (also known as a pressure plate)
6000-154 - Housing O-Ring
6500-825 - Wear Ring
6500-823 - Impeller
6500-447 - PS200 Pump Seal (5/8")
6500-828 - Housing: Back
6570-127 - Washer
6570-509 - Washer
6570-023 - Motor Insulator
6000-645 - O-ring for 2" union
Aqua-Flo Circulation Pump
$390.95
Compatibility: 2006-05/2011 J-400 series
240V
60Hz
48 Frame
12" overall length
1.5" Unions
Bracketless Emerson 56 Frame Pump Parts (5/2009+)
from $3.00
Please note: These are the Emerson-made version of these pumps. The LX-made pumps are more common (click here for the LX-made versions). You can replace the LX-made pump with an Emerson pump. However, pump parts are not interchangeable. The label will indicate if it is LX or Emerson.
Universal Mounts are available for the J-LX, J-500, J-400, J-300, and J-100 Series hot tubs. Find the specifical hot tub parts and their specifications below:
J-LX/J-LXL/J-500/J-400/J-300/J-100 North America 60Hz
6500-352S Universal Bracket Mount, 1-Speed
6500-365 Universal Bracket Mount, 1-Speed
6500-367 Universal Bracket Mount, 2-Speed
6500-363 Universal Bracket Mount, 1-Speed
Pump Parts
Union Assembly, Straight (O- 6500-232 Ring Included)
Union Assembly, 45° 6500-037 (O-Ring Included)
Union O-Ring (1 ea.) 6000-645
Drain Plug with O-Ring (1 ea.) 6500-547
Screw, Self-Tapping (1 ea.) 6500-548
Housing, Front (Volute) 6500-546
Housing O-Ring 6500-545
Impeller, 2.5hp 6500-549
Seal-Plate, rotation 6500-544
Seal, ceramic, Stationary for North American 60Hz Pumps 6500-543
Rear housing 6500-541

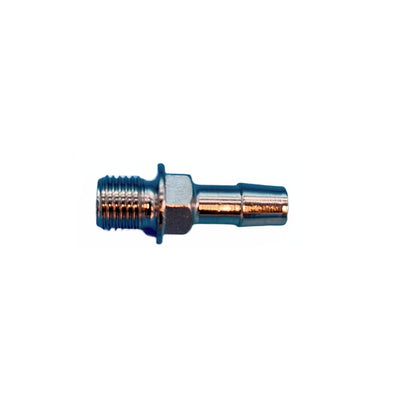

Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-171 **Requires new o-ring 6540-263
O-Ring, 0.434" ID x 0.682" OD x 0.125" 6540-263
Run Capacitor 2.5hp (1&2 Speed Emerson Motors Only) 6000-163
Bracketless LX 56 Frame Pump Parts (5/2009+)
from $0.50
J-LX/J-LXL/J-500/J-400/J-300/J-200/J-100 North America 60Hz Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)
Compatible Pumps (LX Version; Not Emerson)
6500-352S
6500-365S
6500-367S
6500-363S
6500-845S
6500-090S
6500-357S
6500-232 Union Assembly, straight (o-ring included)
6500-037 Union Assembly, 45 degree (o-ring included)
6000-645 Union o-ring
6500-601 Screw, Self-Tapping (1 ea)
6500-602 Drain Plug
6500-603 Drain Plug O-Ring
6540-171 Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (replaced 6540-030)
6540-263 O-Ring, 0.434"ID x 0.682" OD x 0.125"
6500-604 Housing, Front (Volute) 56FR
6500-605 Housing O-Ring
6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors)
6500-281 Seal-Stationary ASM (PS200)
6500-606 Housing Rear 56FR
6500-613 Run Capacitor 2.5HP (for 1 & 2 speed LX motors ONLY)
Circuit Board: J-200 & J-100 LCD Series
from $814.95
Circuit boards are available for sale for the J-200 and J-100 LCD Series Hot Tubs. Part numbers will vary depending on the hot tub model. Refer to the list below for the correct part number.
J-200 North American 60Hz Models (2018+)
6600-268, All 2018+ 1 & 2-Pump J-200 & J-100 Models (Microprocessor Based)
J-200 LED Series (2014-2017) & J-100 LED Series (2016-2017)
6600-720, All 2014-2017 J-280, J-275, J-245, J-235 2-Pump Models, Micro Chip 5.60A Included
6600-722, All 2014-2017 J-210 and 2016-2017 J-225, J-215 1-Pump Models, Micro Chip 5.60A Included
Circuit Board: J-300 LCD Series
from $844.95
J-300 North American 60Hz Models (2020+)
6600-505 All 2 pump J-300 models 2020+. Encrypted board.
6600-499, All 1 pump J-300 models 2020+. Encrypted board.
J-300 North American 60Hz Models (06/2018-2019)
6600-412, All 1 Pump J-300 models 06/2018-2019. Encrypted board. Will not work with older control panels. When used in pre- 06/2018 spas needs to be reprogrammed with a Pick-iT kit.
6600-420, Replaced by 6600-505 All 2 Pump J-300 models 06/2018- 2019. Encrypted board. It will not work with older control panels. When used in pre-06/2018 spas needs to be reprogrammed with a Pick-iT kit.Replaced by 6600-505
J-300 North American 60Hz Models (2016-05/2018)
6600-784, All 2016-05/2018 2-Pump Domestic 60Hz J-385, J-375, J-365, J-355, J-345, J-335 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
6600-786, All 2016-05/2018 1-Pump Domestic 60Hz J-325, J-315 Models.Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
J-300 Export 50Hz Models
6600-785, All 2016-05/2108 2-Pump Export 50Hz J-385, J-375, J-365, J-355, J-345, J-335 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
6600-783, All 2016-05/2018 1-Pump Export 50Hz J-325, J-315 Models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
Circuit Board: J-300 LED Series (2002-2015)
from $40.95
J-300 North American 60Hz And Export 50Hz Models
Note: Product may not be in stock at time of order and order may be delayed. Please contact us for stock inquiry.
6600-296, All 2014-2015 1-Pump J-325, J-315 Models, Micro Chip 3.83 Included. Note: Replaces 6000-296
6600-297, All 2014-2015 2-Pump J-385, J-375, J-365, J-355, J-345, J-335 Models. Replaces 6000-293
6600-724, 2002-2013 1-Pump J-300 models (except 2002-2003 J320 & 2005-2007 J325)
*Please message us before ordering to ensure you are receiving the correct product needed.
6660-289, Micro Chip Rev 3.82 (used with all 2014-2015 J-300 LED 1-Pump & 2-Pump spas with circulation pumps)
Circuit Board: J-400 LCD Series
from $998.95
Please note: circuit boards may not be in stock at the time of order and delivery may be delayed. Please contact our team to confirm current stock.
J-400 North American 60Hz Models (04/2018+)
6600-478 All 2019+ J485, J475, J445, J435, and 2020+ J425 models. Encrypted board. It will not work with older control panels.
6600-422 All 1 or 2-Pump J-400 models 04/2018 - 2019, EXCEPT J-435/J-445/J-475/J-485. Encrypted board. It will not work with older control panels. When used in pre 04/2018 spas need to be reprogrammed with the Pick-iT kit.
6600-430 J-435/J-445 models 04/2018-2018. Encrypted board. Will not work with older control panels. When used in pre-04/2018 spas needs to be reprogrammed with Pick-iT kit.
6600-476, All 3 Pump J-400 models 04/2018+. Encrypted board. Will not work with older control panels. When used in pre-04/2018 spas needs reprogrammed with Pick-iT kit.
J-400 LCD Series (09/2015-03/2018)
6600-766 All 09/2015-03/2018 1&2 Pump J-400 models (Not Compatible with 10/2017+ J-445 & J-435 models). Board is microprocessor controlled, includes factory-installed jumper wires and does not require an Eprom.
6600-266 For 2-Pump Domestic 60Hz J-445 & J-435 10/2017-3/2018 models only. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
6600-768 All 09/2015-03/2018 3-Pump J-495 models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
J-400 Export 50Hz Models
6600-765 All 09/2015-03/2018 1&2 Pump J-400 models (Not Compatible with 10/2017+ J-445 & J-435 models). Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
6600-767, All 09/2015-03/2018 3-Pump J-495 models. Board is microprocessor controlled, includes factory installed jumper wires and does not require an Eprom.
J-400 LCD Series (2006-08/2015)
6600-728, All 2008-Mid 12/2009 1&2 Pump J-400 models with 1-speed Jet Pump Board is microprocessor controlled and does not require an Eprom.
Circuit Board: J-LX, J-300, J-200 (various years/models)
$645.95
Circuit board for Jacuzzi hot tubs:
J-LX: 2011+
J-300:
2012-2013: J-375, J-365, J-355, J-345, J-335
2008-2011: J-375
2007-2011: J-365, J-355, J-345, J-335
2005-2007: J-325
2002-2006: J-345, J-340, J-335, J-330
2002-2003: J-320
J-200 (only models with circulation pump):
2007-2012: J-280, J-270, J-230
mid-year 2007-2011: J-280, J-270
2005-2017: J-285, J-280, J275, J-270, J-235, J-245, J-230
Part Number Information:
6600-726 All 2004+ J-LX & J-LXL models, Micro Chip 3.61A Included
Replaces: 6600-088, 6600-288 and 6600-167 on all above models
Circulation Pump: 6500-905S
$558.95
6500-905S Circulation Pump for J-335 and J-345 models (after August 2015)
240V 60Hz
48 Frame
9'Oclock (1.5" Unions)
Classic Mini DXL Jet and Dual Rotator
$15.95
6541-519, Jet face: 3" DXL Stainless, ProLoc
6541-565, Jet Back: 300s ProLoc (includes o-ring and nut)
ClearRay PRO3TECT Ozone Kit (240V)
$438.95
Aftermarket ClearRay Pro3Tect Ozone Kit for 240V Jacuzzi Hot tubs.
Compatibility with 240V tubs only:
J-500: All
J-400: 2016+
J-300: 2016+
J200: 2018+
J100: 2018+
Includes all necessary components, hardware and instructions for installation.
6472-529, 240V, AMP circuit board connection; complete ozone kit.
