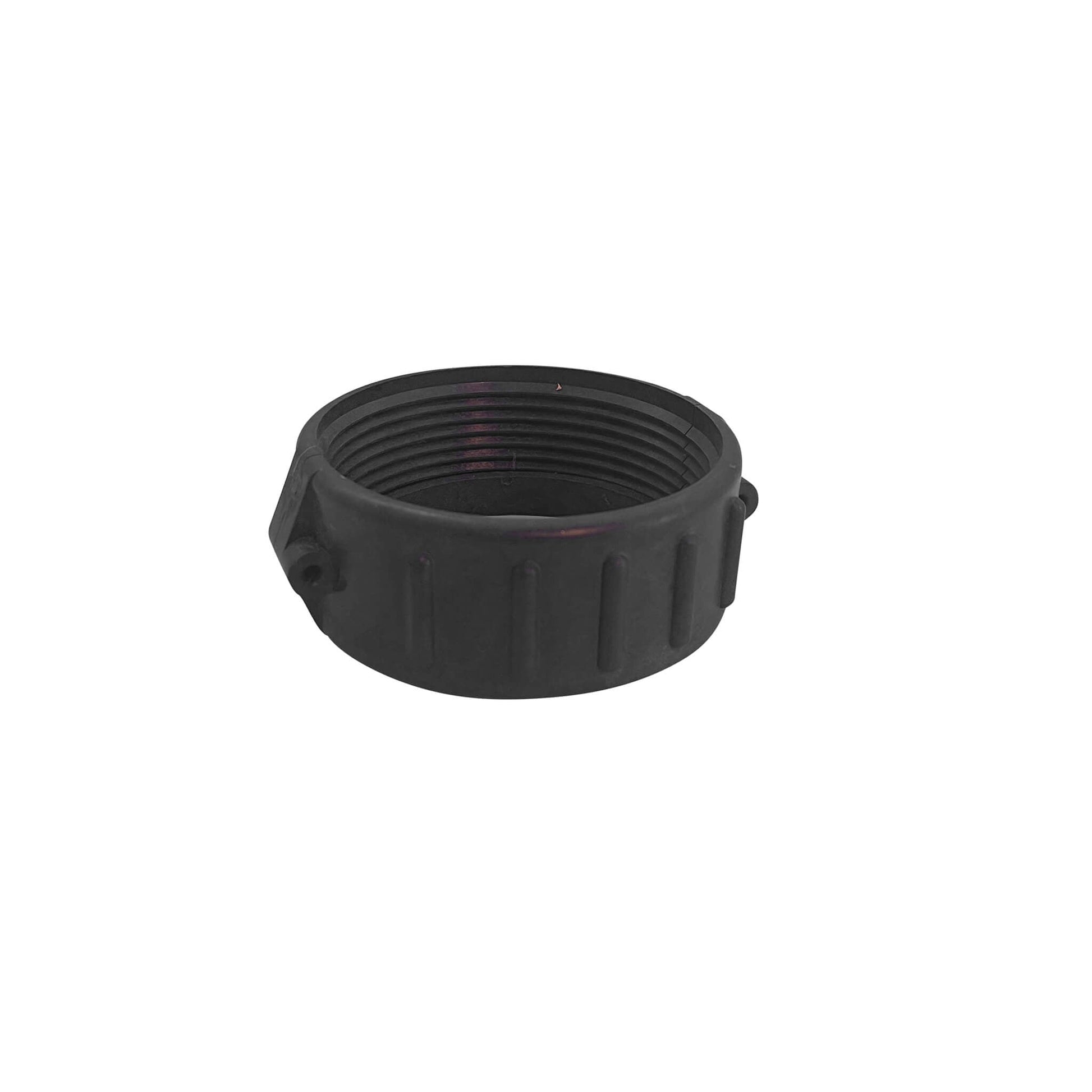

Replacement Split Nut: 2" – Jacuzzi J-400/J-300/J-200 (2006–2009)

6000-031 – OEM Jacuzzi® Replacement Split Nut 2". Used in J-400, J-300, and J-200 Series, 60Hz. Designed for pump installations and maintenance.

Compatibility:

• Jacuzzi® J-400 Series (2006–2009) 60Hz
• Jacuzzi® J-300/J-200 Series (6/2009+) 60Hz
• Jacuzzi® J-300/J-200 Series (Prior to 6/2009) 60Hz
• Jacuzzi® J-LX/J-LXL/J-400/J-300/J-200/J-100 Export 50Hz (2002+)

Special Notes: Replaces older pump models. Compatible with AquaFlo 56 Frame Pump Parts. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut.

	Part #	Description
1	6000-031	Replacement Split Nut 2"
2	6500-232**	Union Assembly (Straight)
3	6500-037**	Union Assembly (45°)
4	6000-645 or 6000-554**	O-Ring 2"
5	6000-047	Drain Plug
6	6000-204	Drain Plug O-Ring
7	6500-151	Housing Front (Volute)
8	6000-154	Housing O-Ring
9	6000-205	Wear Ring
10	6000-220	Impeller: Export 50Hz
11	6000-446	Seal: Assembly, PS200 (5/8") Export
12	6000-152	Housing Back, Theramax, 56
13	6570-126	Nut, 5/16" - 18, Hex
14	6570-127	Washer, Split Lock, 5/16"
15	6570-509	Washer, 3/8"
16	6570-006	Motor Mount Insulator, 1.5"
ns	6000-116	Start Capacitor Export
