Valve: T-Valve Cap – Jacuzzi J-200 and J-300 Models (2007–Present)

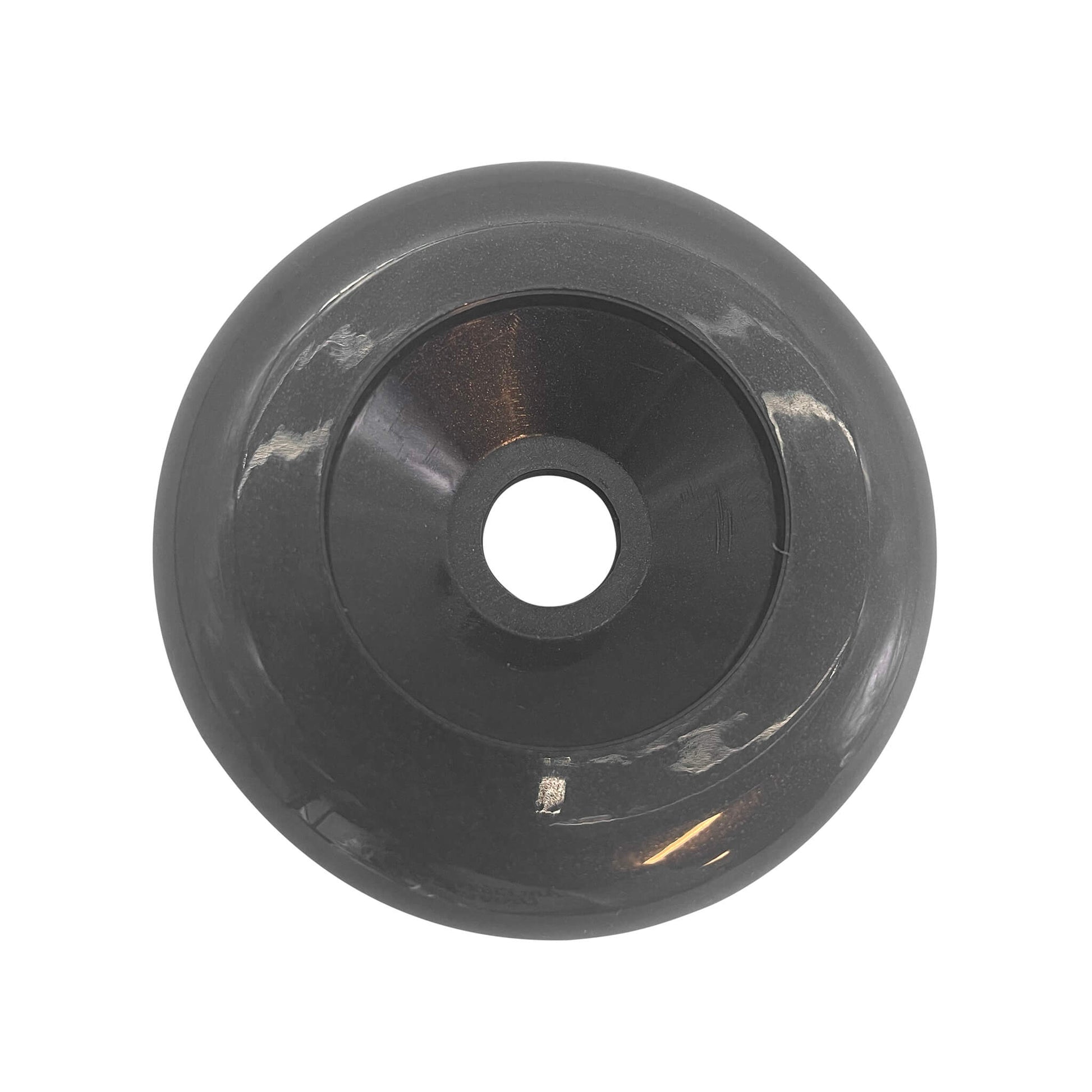

2540-273 – OEM Jacuzzi® T-Valve Cap, used in select Jacuzzi® J-200™ and J-300™ models manufactured from 2007–Present.

Compatible with the following Jacuzzi® models:

Compatible J-200™ Models:

• Jacuzzi® J-230™ (2008+)
• Jacuzzi® J-270™, J-280™ (2007+)

Compatible J-300™ Models:

• Jacuzzi® J-300™ Series (2002–2006)
• Jacuzzi® J-300™ Series (2016–2019)
• Jacuzzi® J-300™ Series (2020+)

	Part #	Description
1	2540-239	T-Valve: Cap And Knob
2	2540-274	T-Valve: Knob
3	2540-273	T-Valve: Cap
4	6541-241	O-Ring: Stem (2 Req'd)
5	6541-240	O-Ring: Body
6	6541-242	Gate Valve (T-Valve)
7	2540-275	Fitting: Wall T-Valve (6541-238 Nut Included)
8	6541-238	Nut: Diverter
9	6541-236	Body Assembly: T-Valve (Includes one each of items 4 through 6 above)
