Description

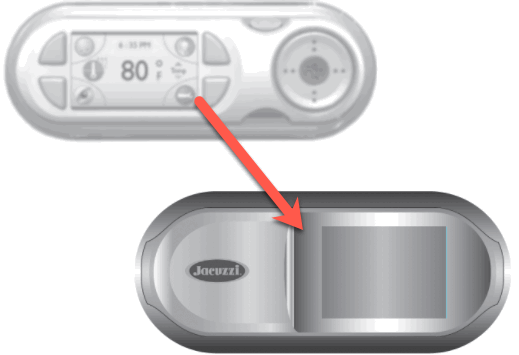

This kit is used to convert Jacuzzi J-400 Collection hot tubs that have a J-1000 controller, where the topside display is no longer available.
Note: we cannot provide technical support for the installation procedure and cannot accept returns due to failure of install.
For information on how to use the new topside display, refer to the J-400 (2019) Owner's Manual
Conversion kit can replace the following topside controllers:
| Year | Part ID | For model(s) |
|---|---|---|
| 2013-2015/08 | 6600-099 | J-415, J-425, J-465, J-470, J-480, J-495 |
| 2012 | 6600-405 | J-415, J-425, J-465, J-470, J-480, J-495 |
| mid 2009/12-2011 | 6600-857 | J-460, J-465, J-470, J-480 |
The kit includes:
| Part ID | Description |
|---|---|
| 6000-831 | |
| 6600-379 |
Panel: LCD J-400 2018/04-2018, 2019 J-415/425. Encrypted. Peel and stick gasket included. Works with both 2018/04+ encrypted circuit boards, and 2015/09-2018/03 non-encryped boards. |
| 6600-751 | Sensor: Assembly Water Temp, 3-pin, long tip. |
| 6472-525 | Harness: Hi-Limit, 32" LX 2-pin |
| 6560-199 | Cord: MiniDin-6 to XA Connector |
| 6560-755 | Light: JHT Status Indication, 12V, 2016 |
| 6570-198 x2 | Bracket, Controller BLB 4” |
| 6560-909 (2013+) | |
| 6560-332 (2013+) x3 | Adapter: DCU Expansion |
The kit does not include new stereo components:
| 6500-917 | Stereo: SD/JHT 8X5 w/Ext BT Ant |
| 6560-093 | Harness, Aquatic to JBL |
